Description

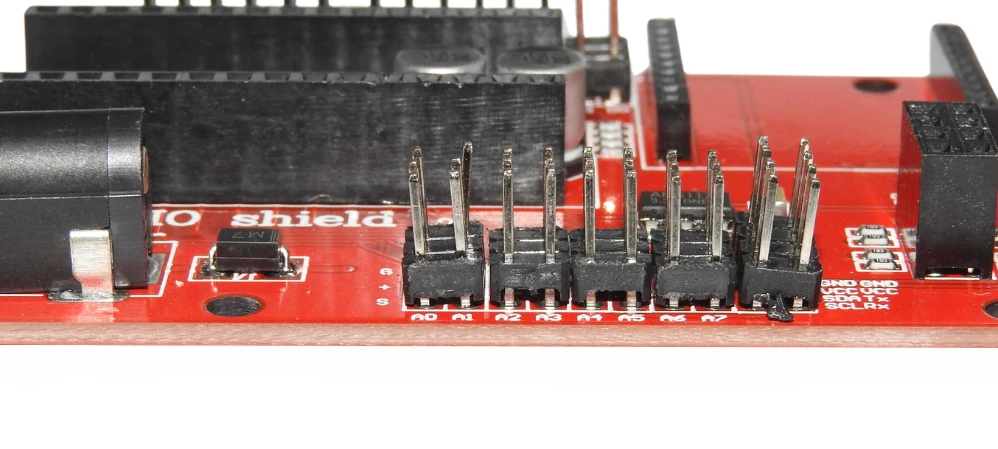

The shipment we received contains pins and components that were imperfectly soldered. Despite these imperfections, the functionality of the Nano shield hasn’t been affected. Maker Store is offering them at a reduced price, giving you an opportunity to purchase these shields at a great bargain price. An example image is shown below:
The Arduino Nano Compatible Wireless IO Sensor Shield is a feature-rich, compact shield designed to significantly enhance the capabilities of the Arduino Nano 328P. It simplifies access to all I/O pins while providing seamless integration with wireless communication modules, making it ideal for IoT projects, robotics, and remote-control applications.
This shield expands the Nano’s I/O pins into 3-way headers with an SVG (Signal, Voltage, Ground) configuration, enabling easy and efficient sensor and module connections. With built-in compatibility for XBee Bluetooth Modules and NRF24L01 Wireless Modules, this shield empowers your microcontroller to perform wireless communication effortlessly. It’s the perfect companion for developers seeking to create innovative, wirelessly-connected solutions.
The shield features a reliable 2.5mm barrel jack connector, allowing external power input for added flexibility. Whether you’re a hobbyist or a professional, this shield offers unmatched convenience in a compact form factor.
Arduino Nano Compatible Wireless IO Sensor Shield Key Features:
- Enhanced Functionality: Expands Arduino Nano 328P I/O pins with easy-to-access 3-pin headers.
- Wireless Module Support: Fully compatible with ZigBee XBee and NRF24L01 modules for robust wireless communication.
- Simplified Sensor Integration: SVG pin layout simplifies connection with sensors and actuators.
- External Power Compatibility: Supports a wide input voltage range of 7V to 12V via a secure 2.5mm barrel jack connector.
- Prototyping Ready: Compact, durable design, perfect for IoT, robotics, and other cutting-edge projects.
Specifications:
- Supply Voltage Range: 7–12 VDC (via 2.5mm barrel jack)
- I/O Pins:
- 14 Digital I/O pins with Signal, Voltage, and Ground configuration
- 8 Analog Input pins
- 6 PWM-capable pins
- Expansion Interfaces:
- I2C pins for additional device connectivity
- Serial TX/RX pins for communication
- Dimensions:
- Length: 75 mm
- Width: 50 mm
- Height: 12 mm
- Weight: 0.1 kg
Compatible Boards:
- Compatible with Arduino Compatible Nano (Nano not included; sold separately)
Additional Notes:
- Due to manufacturing variations, terminal pins may have a slight angle. This does not affect functionality—100% operational and ready to use.
- The shield is compatible with a Male 2.5mm Solderless Screw Terminal Barrel Jack Connector for easy power connectivity.
- Arduino Compatible Nano is not included. It can be purchased separately.
