Description

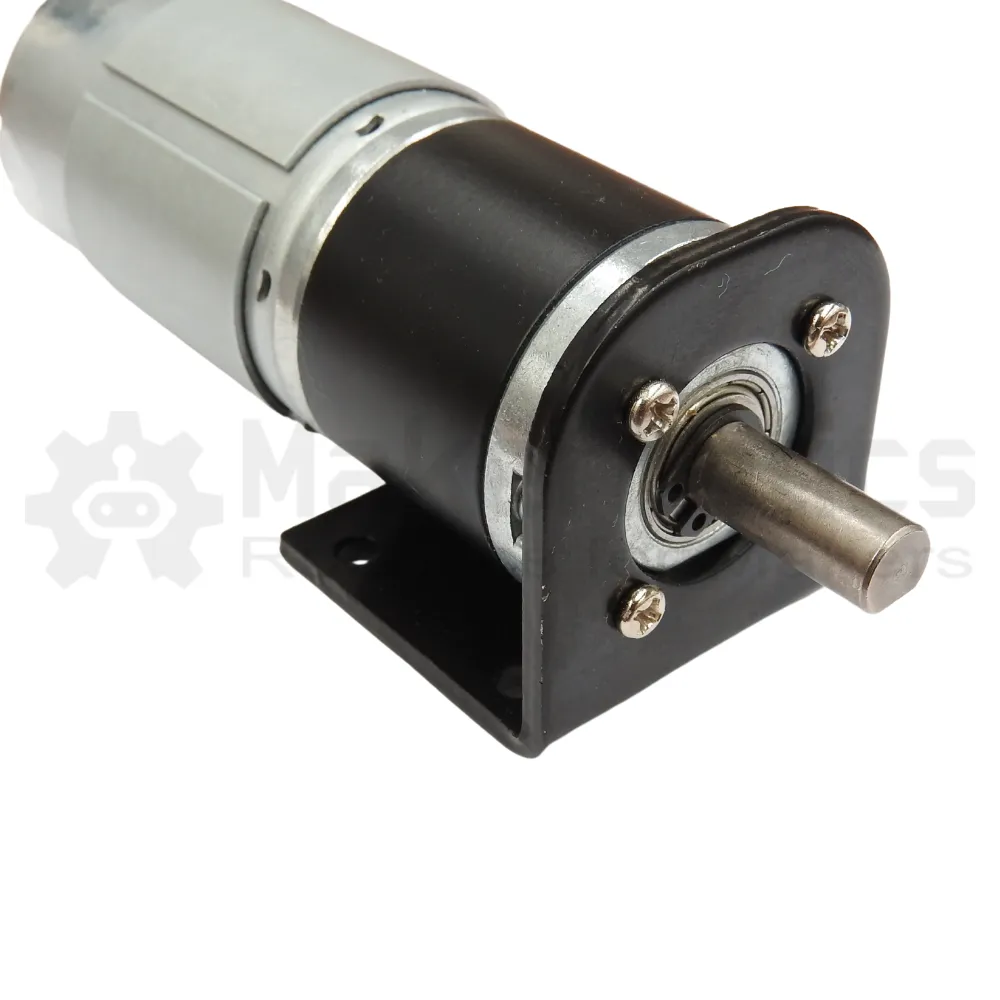

Our planetary gear motor mounts are excellent for mounting a 36mm planetary geared motor or a similarly sized motor. This bracket features 4 mounting holes for surface mounting, making it suitable for mounting to a variety of surfaces such as plates and aluminium extrusion. These motor mounts are typically used in making custom mobile robot chassis.
The 3mm steel construction makes for a very rigid motor mount that resists deflection.

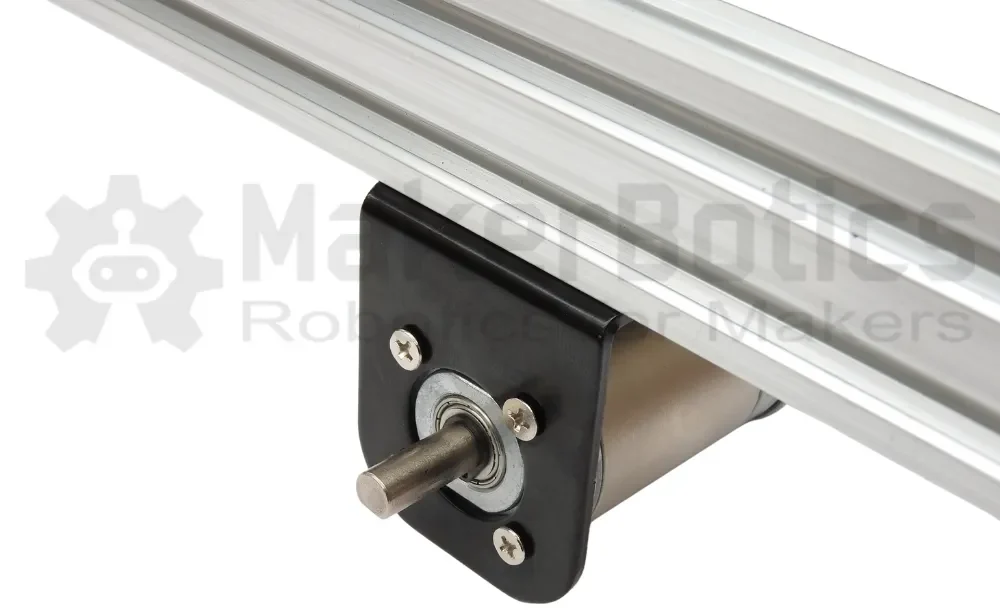

Mount this extrusion to aluminium extrusion for a rigid setup!
Specifications
- Material: Steel
- Material thickness: 3mm
- Material Finish: Black
- Mounting hardware: M4
Included

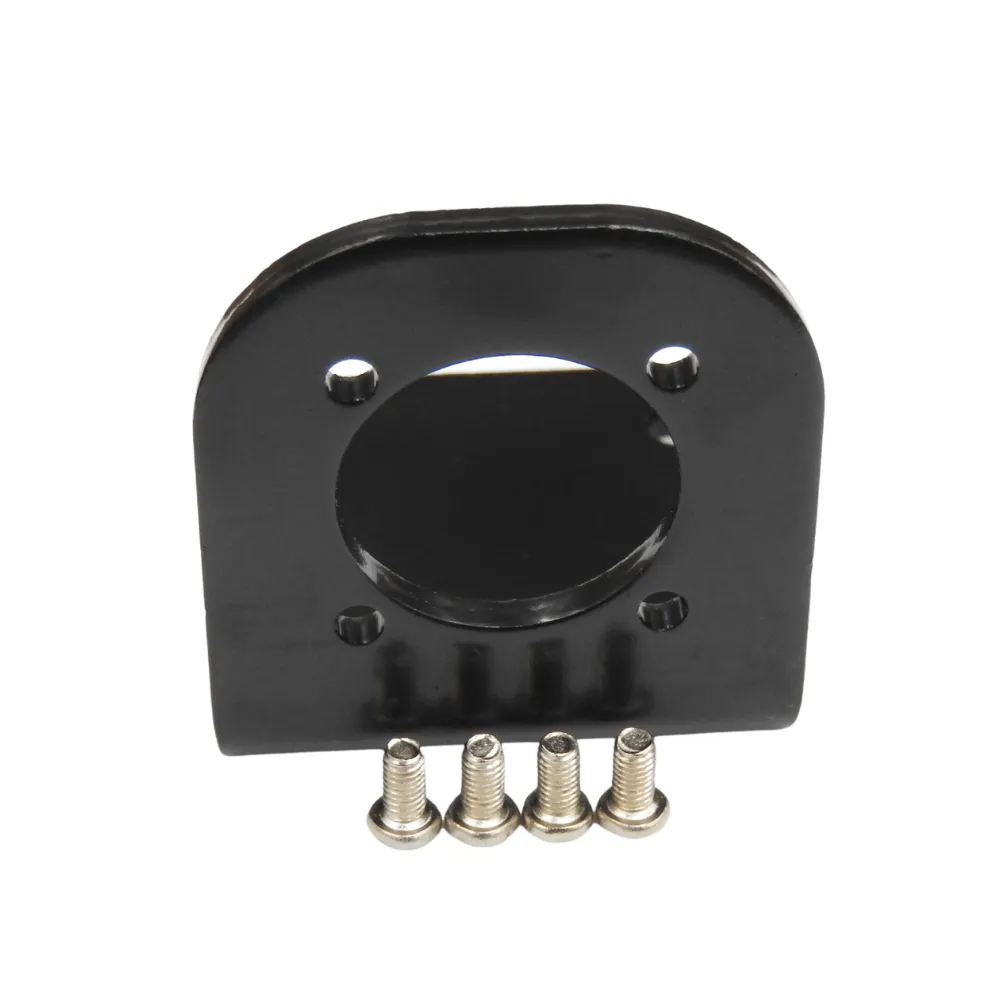

- Right angle motor mount bracket to suit our 36mm planetary geared motor
- 4 screws (Phillips head type) to secure the motor to the bracket

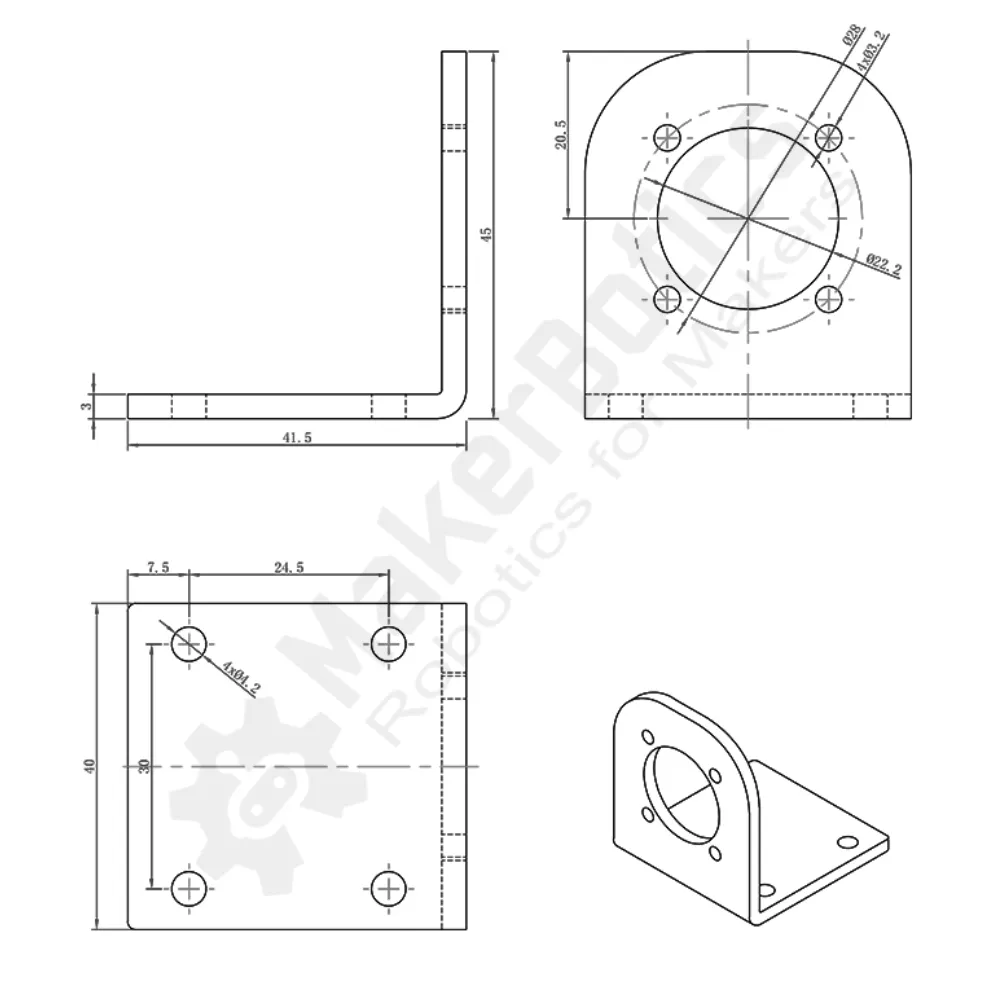

Engineering Drawings
All dimensions are in mm
Note
- Hardware to mount the bracket to a surface is not included
- The motor is not included. Suitable motors can be found here
- If you are using your own motor, check the mounting holes in the above engineering drawings to ensure a good fit
