Description

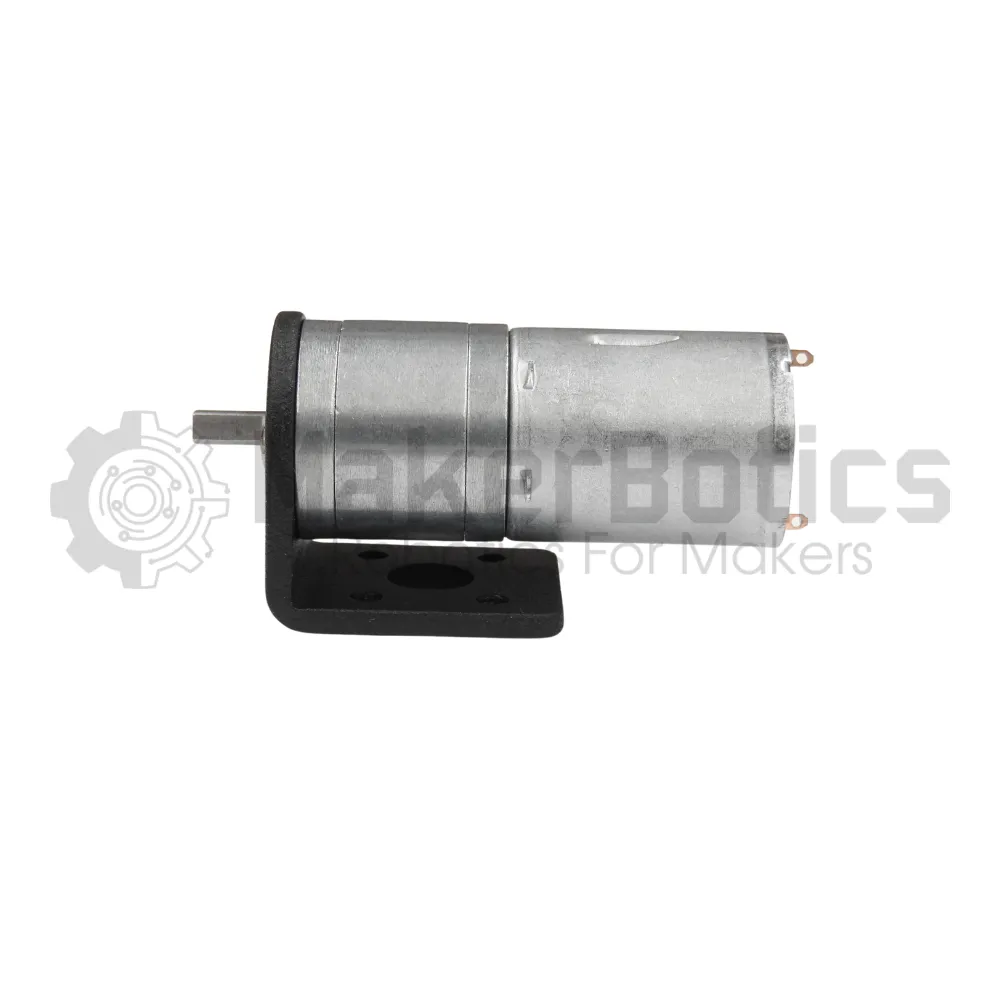

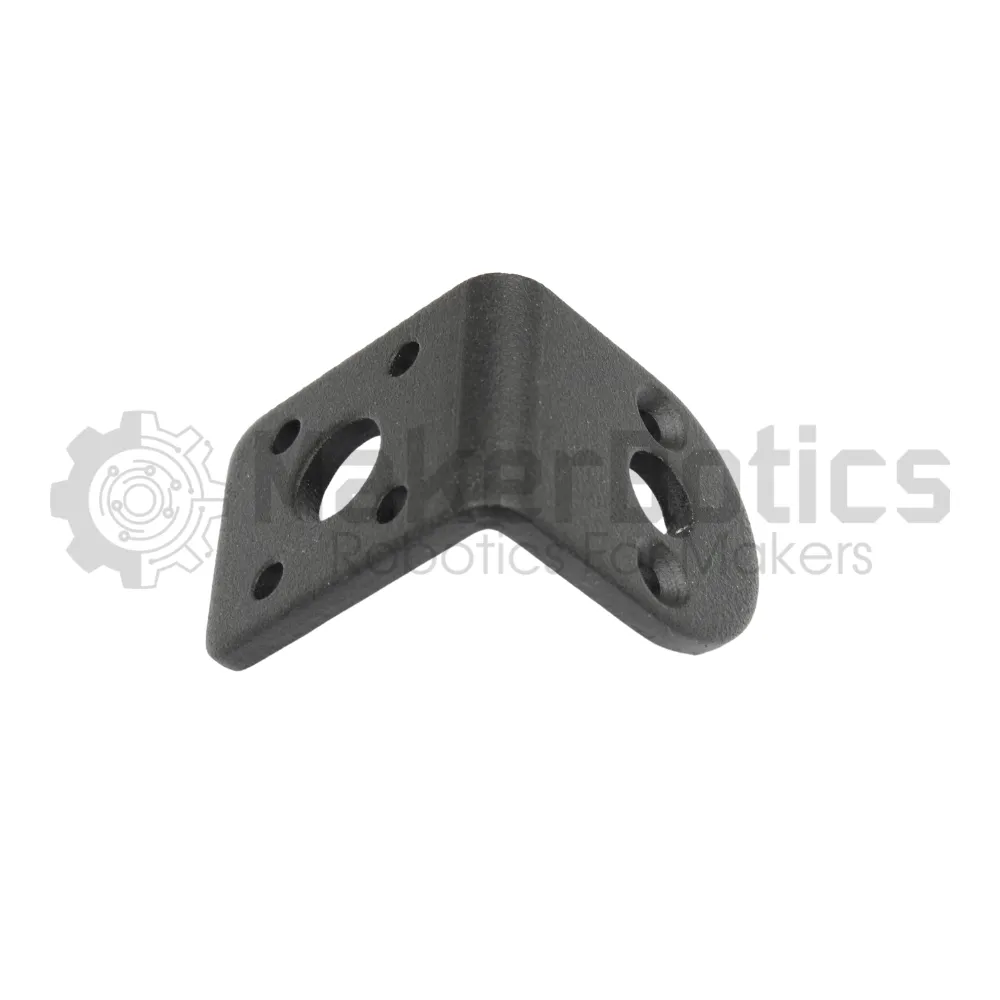

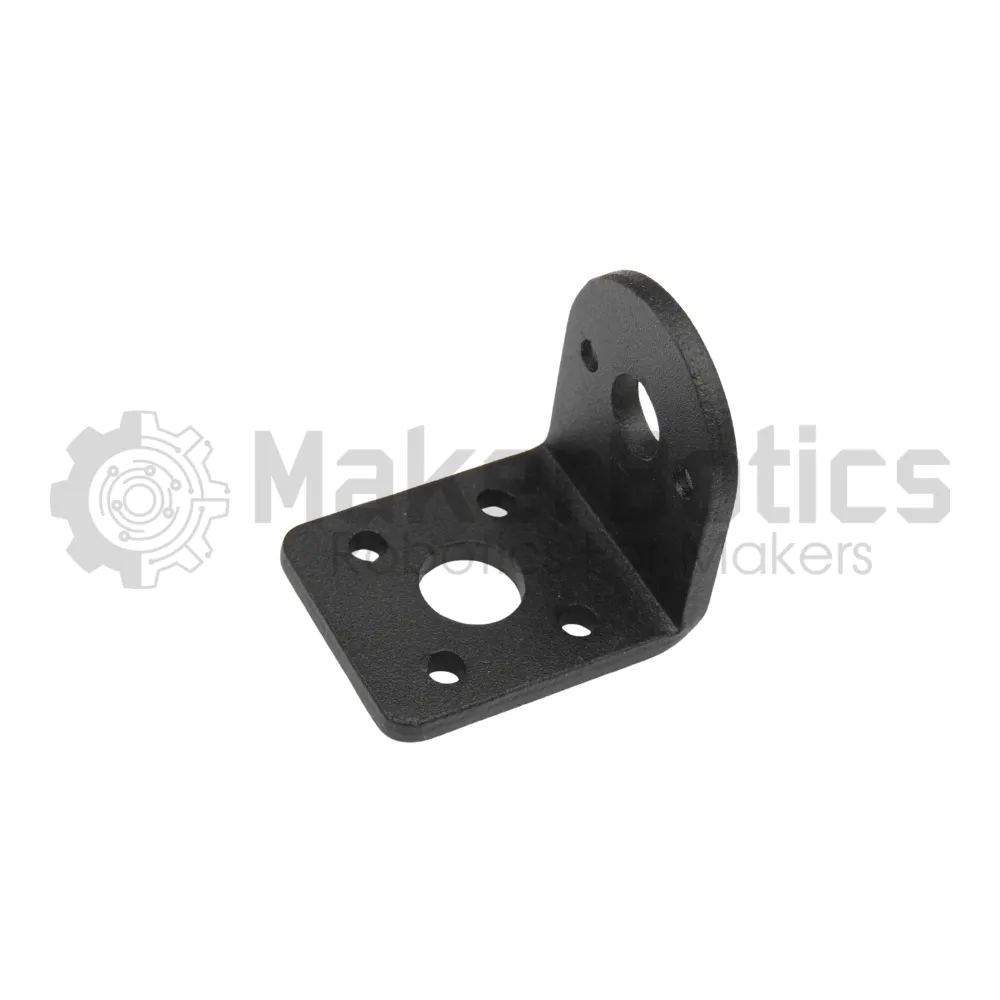

The 25D Geared Motor Right Angle Mount is excellent for mounting a 25mm spur geared motors or a similarly sized motor. This bracket features mounting holes for surface mounting, making it suitable for mounting to a variety of surfaces such as plates and aluminium extrusion. These motor mounts are typically used in making custom mobile robot chassis.
The 3mm Aluminium construction makes for a light weight yet rigid motor mount that resists deflection.
Specifications
- Material: Aluminium
- Material thickness: 3mm
- Material Finish: Black
- Mounting hardware: M3

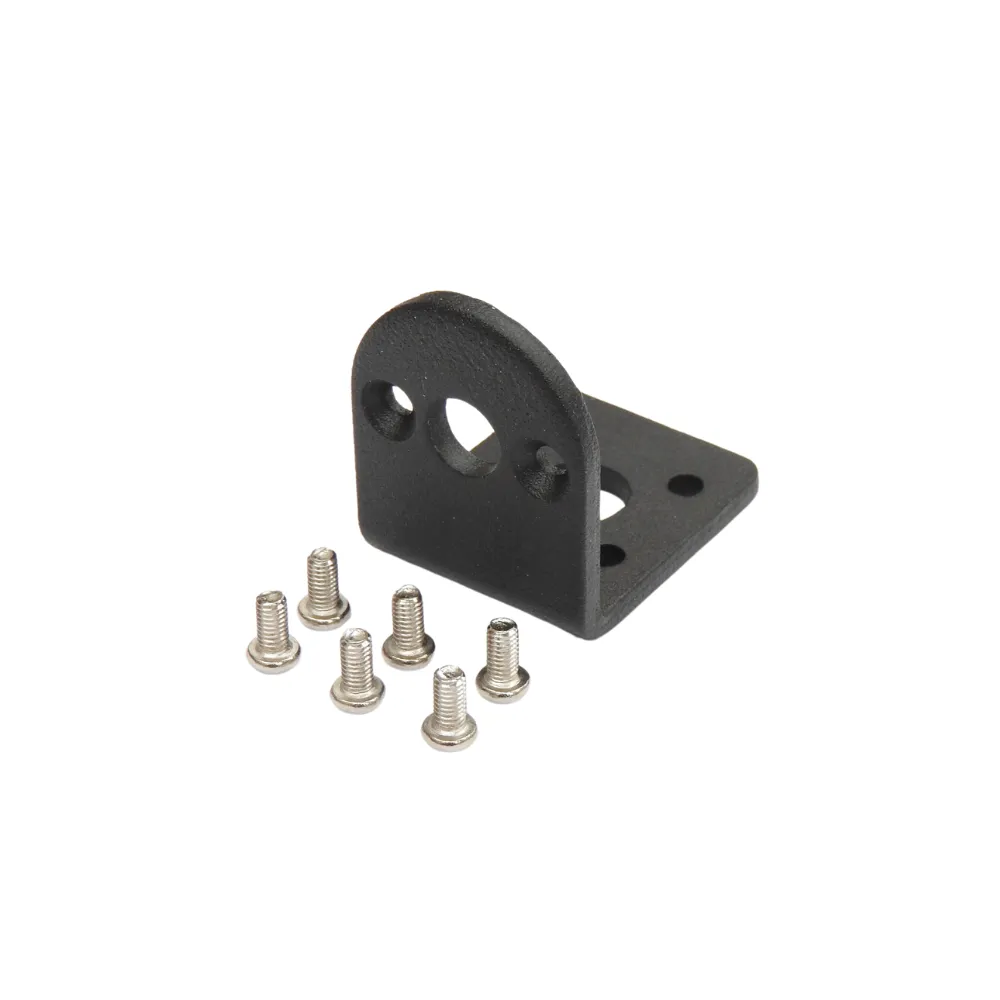

Included
- Right angle motor mount bracket to suit our 25mm spur geared motor
- 6 screws (Phillips head type) to secure the motor to the bracket

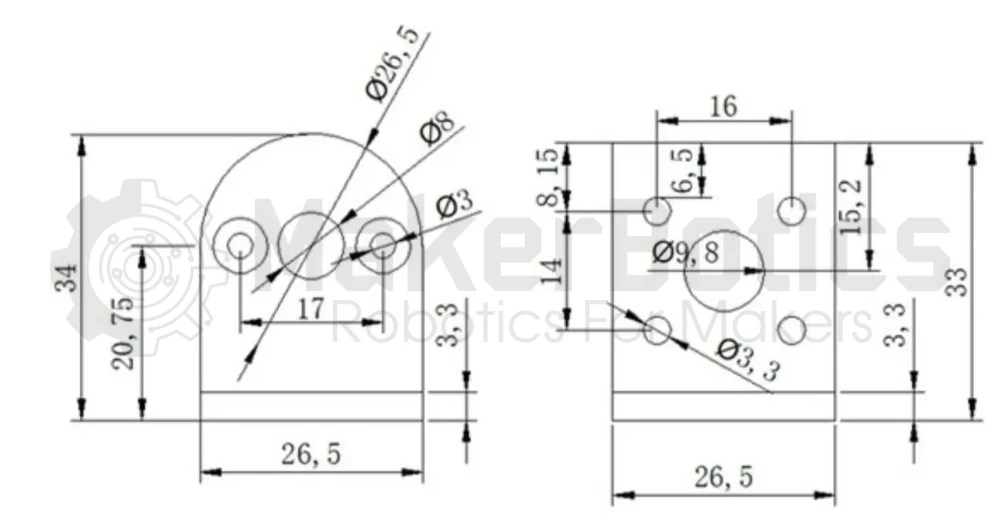

Engineering Drawings
All dimensions are in mm
Note
- The motor is not included. Suitable motors can be found here
- If you are using your own motor, check the mounting holes in the above engineering drawings to ensure a good fit
