Description
Technical Overview

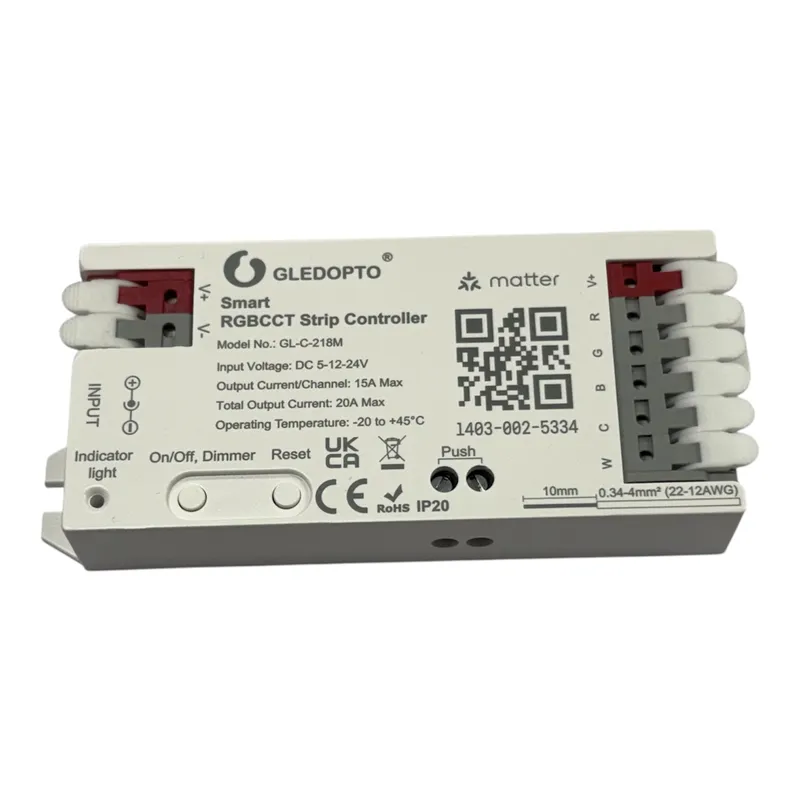

This Smart RGBCCT Strip Controller drives multi-channel LED arrangements, supporting RGB, RGBW, CCT, and RGBCCT configurations. Operating on a DC 12V–24V input, the device acts as the central control node between the power supply and the LED strips, thereby regulating power distribution and signal outputs across up to five channels with a maximum total current load of 20A.
Furthermore, the unit integrates directly into local wireless networks using the Matter protocol over Wi-Fi. Consequently, it enables local and cloud-based management through compatible smart home ecosystems. It also facilitates precise pulse-width modulation (PWM) dimming and colour mixing parameters received from connected control interfaces. In addition to wireless control, the unit features physical terminals for optional external hardwired push-button inputs to allow manual local override.
Applications
Engineers and installers utilise the Smart RGBCCT Strip Controller in architectural lighting installations, ambient lighting systems, and integrated smart home automation projects. Specifically, these projects require independent or synchronised control of multiple colour channels. Consequently, users typically deploy the controller in layout configurations that require flexible control over 16 million colours alongside variable colour temperature ranges from 2200K to 6500K.
Common installation environments include residential and commercial accent lighting, under-cabinet strip runs, wall cove configurations, and complex decorative RGB setups. Because the unit features quick-connect terminals, it allows for tool-free, solderless integration into custom cabinetry lighting, automated media room setups, and perimeter lighting systems. As a result, it interfaces seamlessly with existing smart home infrastructure such as Apple Home, Amazon Alexa, or Google Home systems.
Technical Specifications
Installation and Setup
The GL-C-218M features quick-connect terminals that allow for fast, tool-free wiring without soldering. The device supports both wireless control via your smart home platform and hardwired external push-button switches for manual operation, providing flexibility in installation and use cases.
Maker Store Tips and Tricks
Ensure all LED strip connections are secure before powering the unit. When using external push-button switches, verify compatibility with the controller’s auxiliary input specifications. Test colour consistency across all connected LED strips after initial setup to confirm proper channel alignment.
