Description

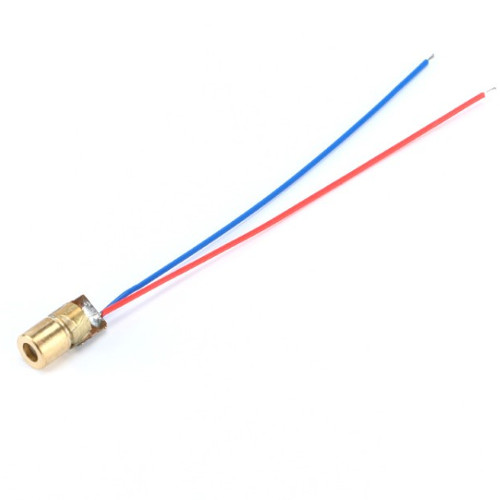

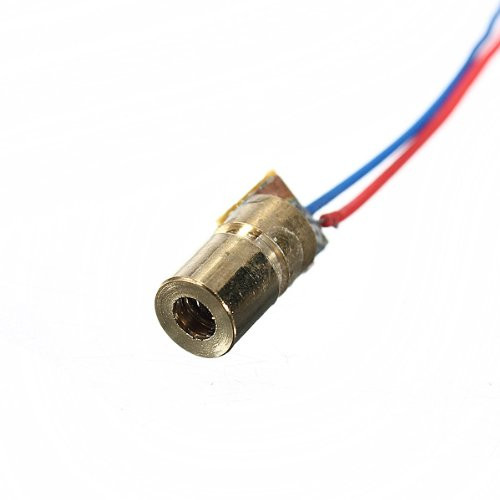

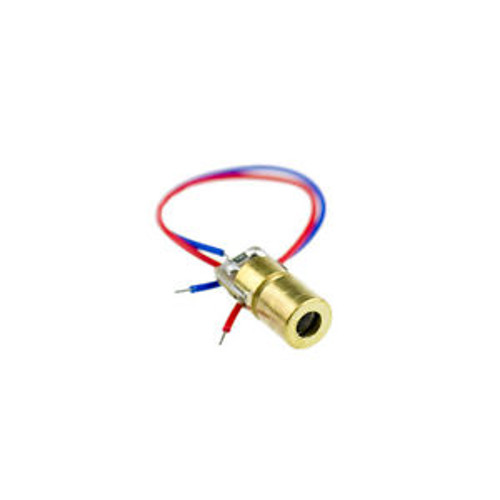

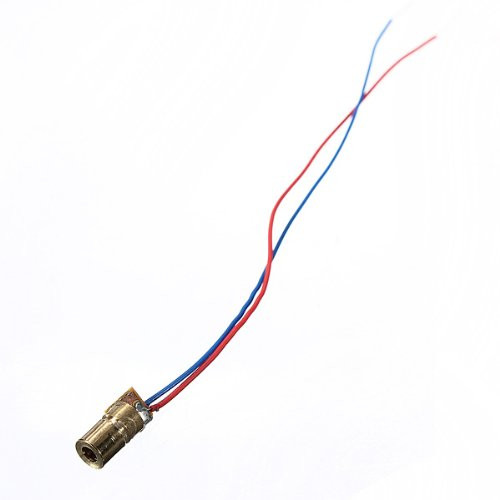

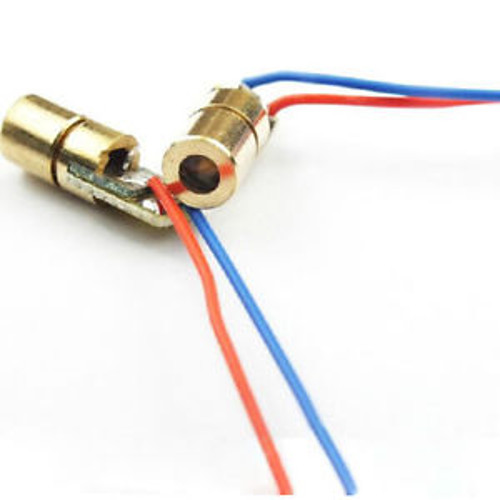

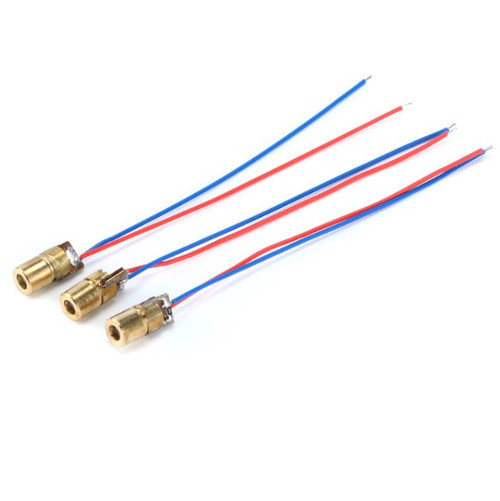

This 650nm 5mW Red Laser Diode Module is a compact, high-quality module component designed for precise optical alignment, sensing, and indication tasks. Featuring a stable single-mode output at 650nm, the module delivers a highly visible red laser dot with low power consumption, making it ideal for integration into embedded systems, automation equipment, and custom instrumentation. Housed in a thermally efficient copper shell with a 6mm diameter, it ensures consistent performance and effective heat dissipation across a wide operating temperature range. The module operates reliably on standard 5V DC power and is compatible with a variety of microcontroller platforms and power supplies.
Typical Applications
- Laser pointers and visual indicators
- Industrial alignment and positioning systems
- Laser-based measurement and sensing tools
- Barcode scanners and optical communication devices
- DIY electronics and educational demonstrations
Specifications:
| Parameter | Value |
|---|---|
| Output Power | 5mW |
| Wavelength | 650nm (Red) |
| Laser Shape | Dot |
| Working Voltage | DC 5V |
| Operating Current | < 40mA |
| Outer Diameter | 6mm |
| Diode Diameter | ~0.6cm |
| Shell Material | Copper |
| Cable Length | ~2.4cm |
| Operating Temp | -10°C to +40°C |
| Weight | ~1g |
| Dimensions | 6mm (D) x 10mm (L) |
Note:
This is a Class III laser product. Avoid direct eye exposure to the laser beam. Handle with care and use appropriate safety precautions during operation.
Package Includes:
1 x 650nm 5mW Red Laser Diode Module (6mm, 5V)
