Description
Technical Overview

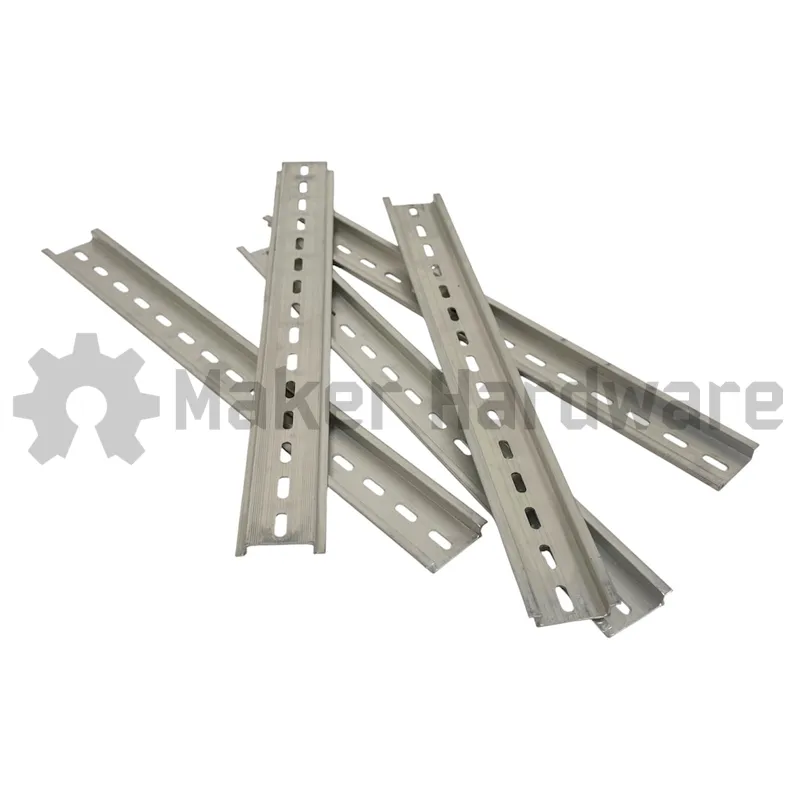

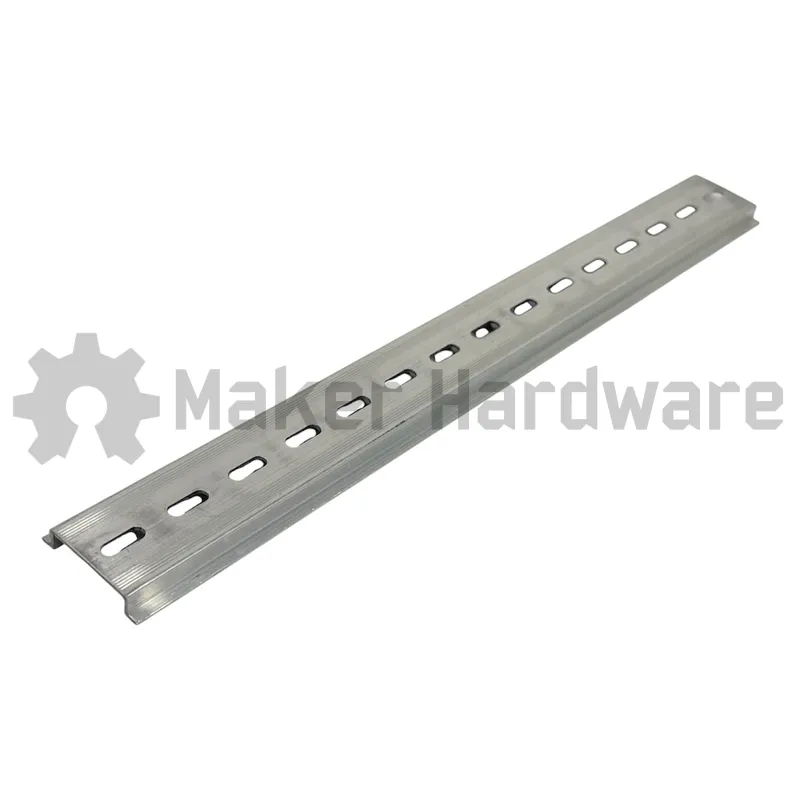

Electricians and technicians rely on the aluminium DIN rail TS35 x 7.5mm slotted as a standardized, lightweight metal mounting track to securely install electrical and industrial control equipment. Consequently, this track provides a universal backbone that organizes components efficiently within industrial automation panels, control enclosures, and electrical distribution systems.
Because engineers design this component to fit standard setups, it integrates cleanly into back panels and electrical switchboards while facilitating efficient space management and streamlined component organization. Furthermore, universally compatible equipment snaps directly onto the track, which creates a neat and modular layout within a larger electrical system.
Applications
Technicians primarily deploy this slotted DIN rail TS35 x 7.5mm in electrical distribution boards, switchboards, and industrial automation control enclosures. In addition, it acts as the central mounting architecture for both heavy-duty industrial environments and residential cable management systems.
For this reason, the rail works ideally for setups that require quick hardware installation and flexible component spacing. Specifically, equipment designed for this 35mm “top hat” profile snaps directly onto the unit, including hardware such as circuit breakers, terminal blocks, relays, power supplies, and programmable logic controllers (PLCs).
Technical Specifications
Maker Store Tips and Tricks
-
Ensure all panel mounting screws are fastened tightly through the slotted holes before snapping components onto the rail.
-
When laying out high-density components like PLCs and power supplies, leave adequate spacing on the rail for heat dissipation.
-
Use a dedicated aluminum-cutting blade or rail cutter if modifying the overall length to prevent burrs or deformities on the track edges.
