Description

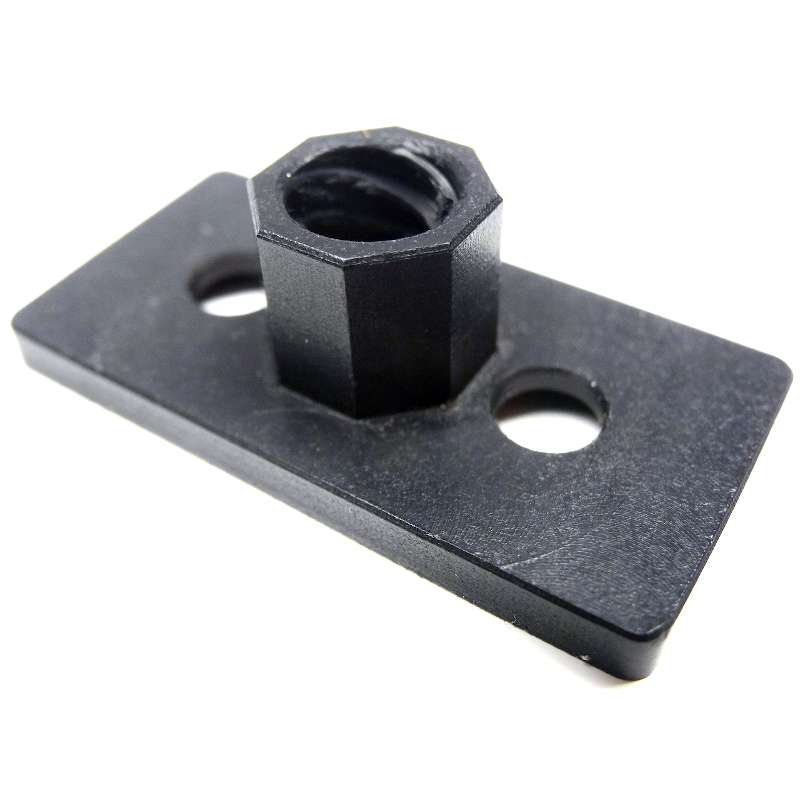

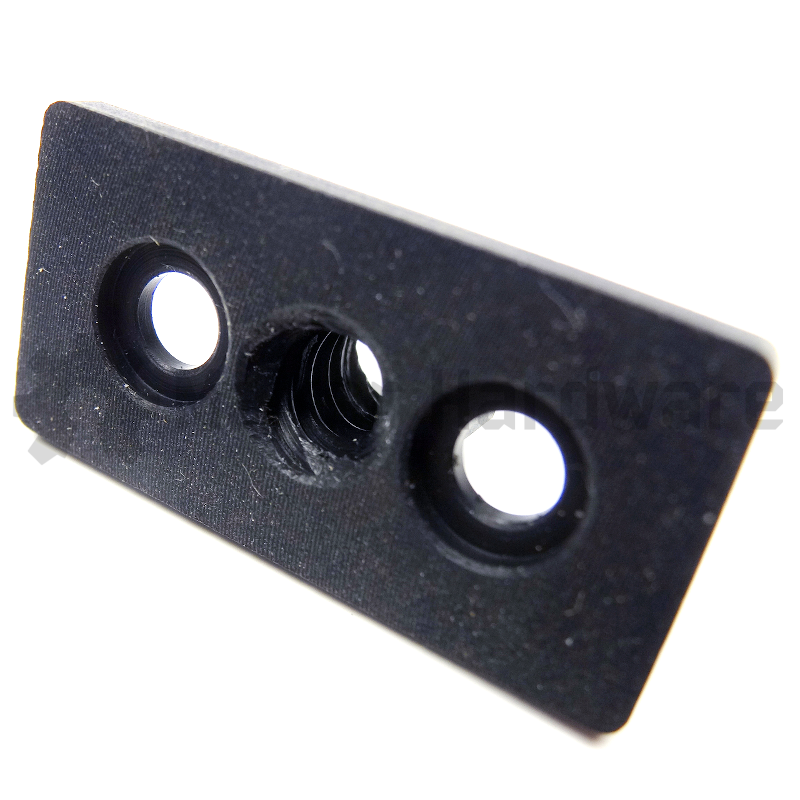

This V-Slot Acme Nut Plate is a perfect fit for any integrated acme screw transmission project.  It can fit into the hollow inserts of 20×40, 20×60 or 20×80 V-Slot.

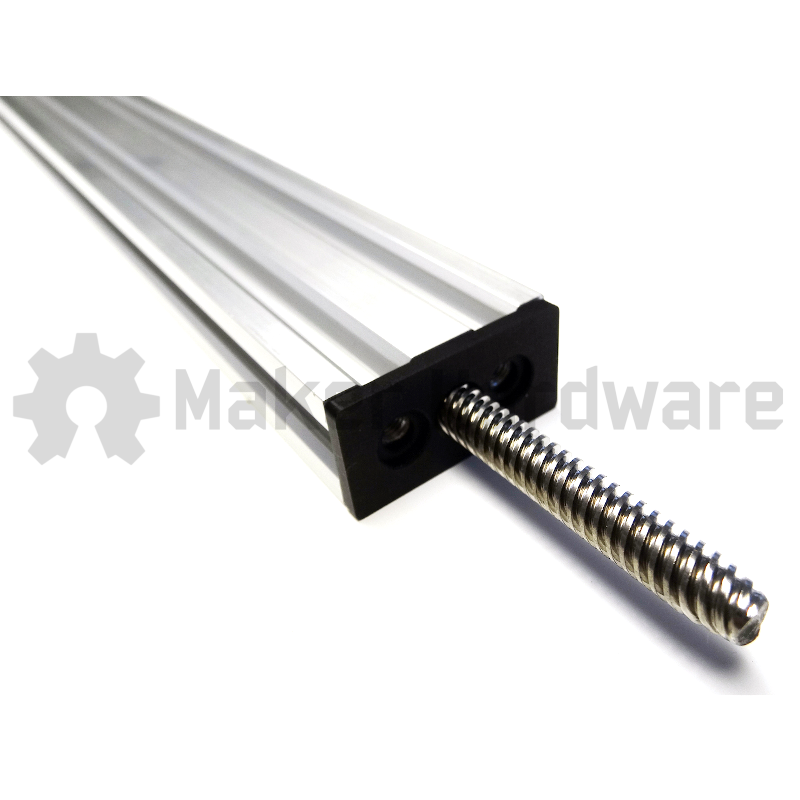

You can use self tapping screws to mount these into the end holes of V-Slot.

Many new and exciting projects are sure to surface using this new integrated transmission component! Use in conjunction with the 8mm Metric Acme Lead Screw

Specifications:

• Pitch: 2mm
• Lead: 8mm
• Delrin
• Colour: Black
• Starts : 4
• 20mm between mounting holes

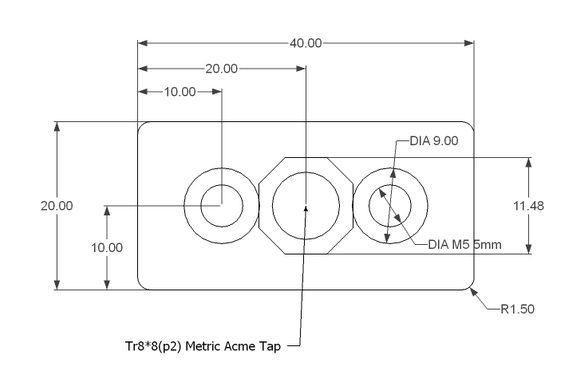

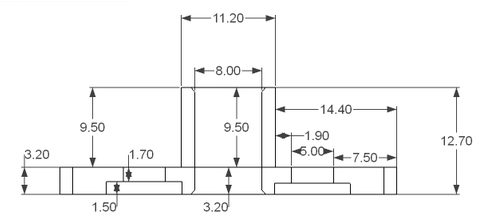

Technical Drawing:
