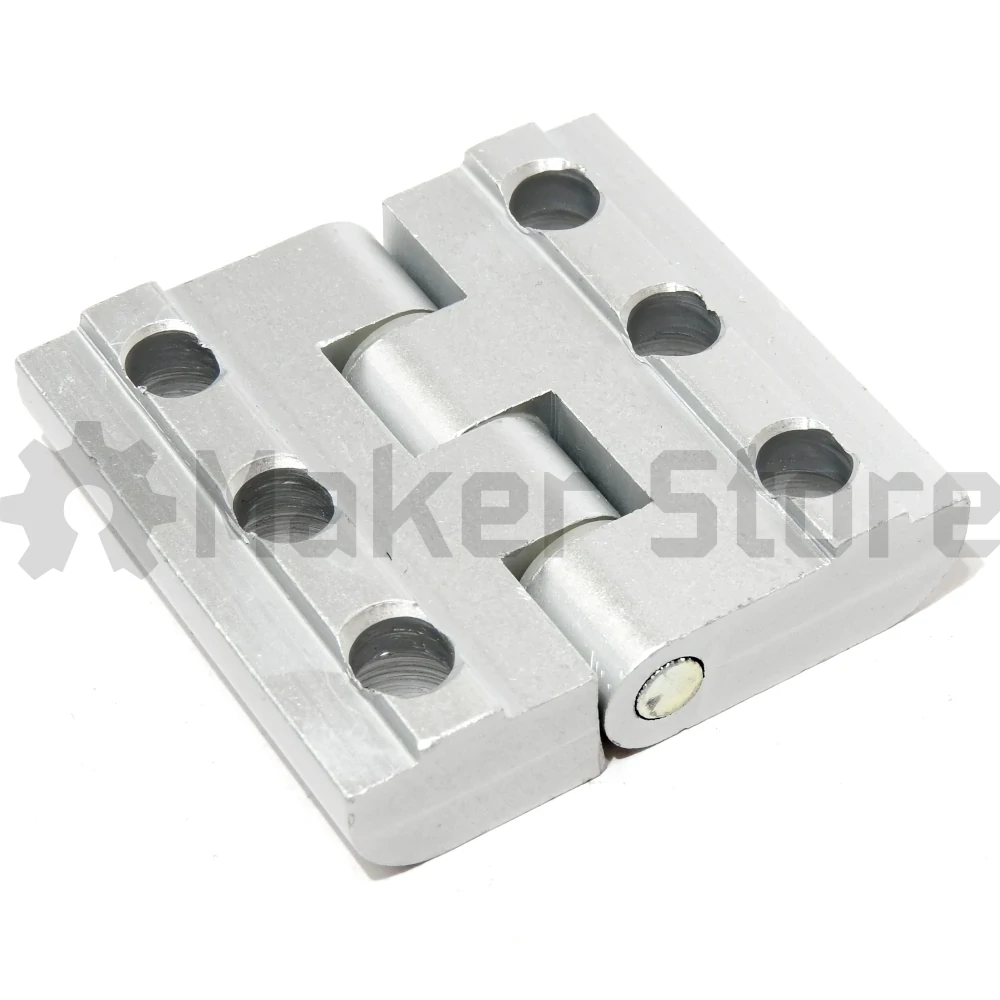

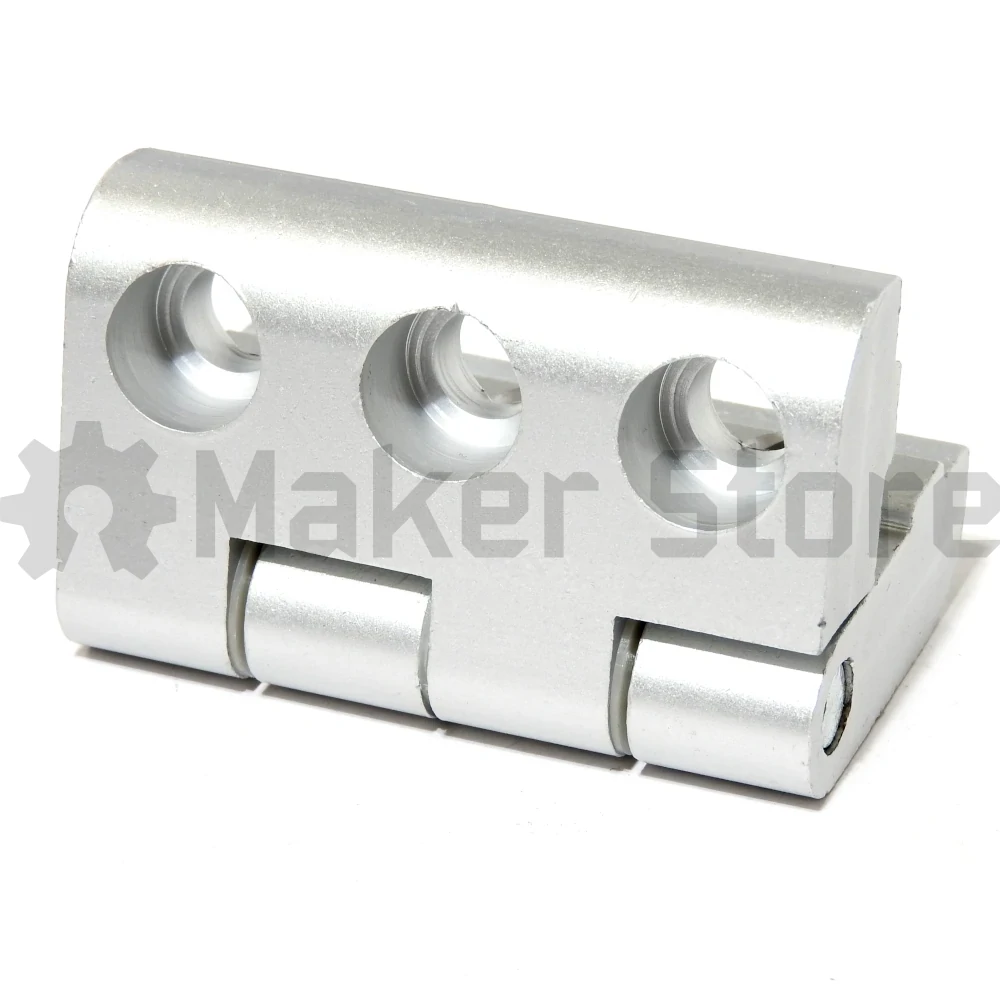

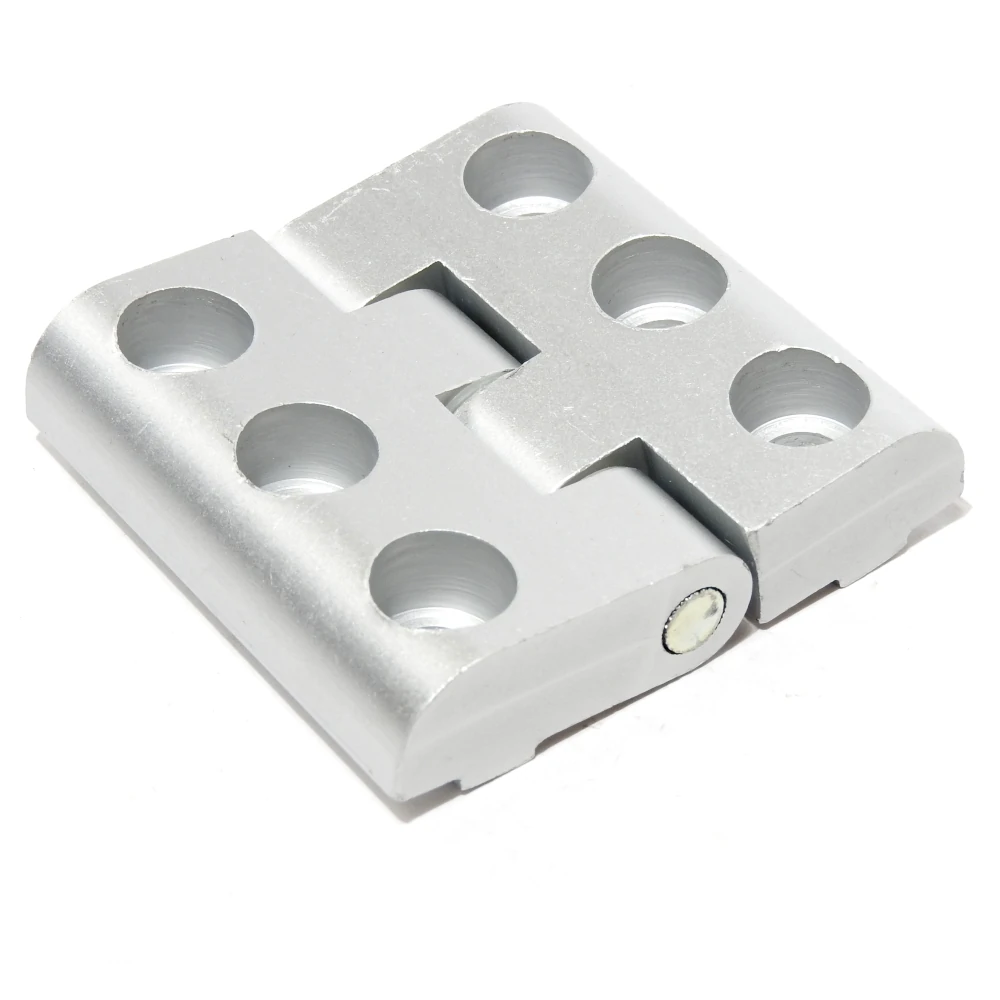

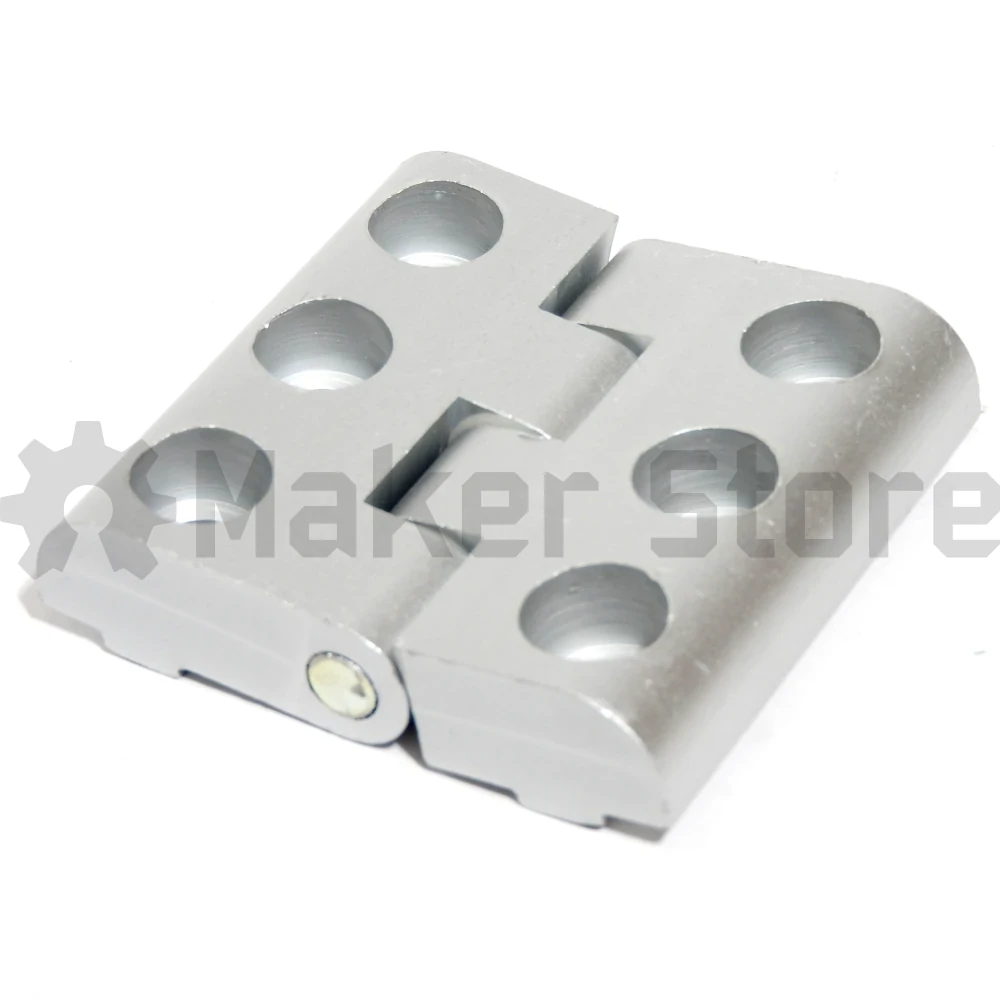

The 6 Hole Aluminium Hinge 62×60 functions as an articulate joint connection component designed to link 40 Series T-Slot aluminium extrusion profiles. Composed of two interlocking halves, this hardware establishes adjustable angular connections across structural frameworks, providing nearly 180 degrees of smooth rotational movement.
To improve alignment precision and structural stability under load, the component incorporates integrated external grooves engineered to fit snugly within the profile’s T-slot tracks. This layout eliminates axial twisting and lateral slipping along the track channel. Technicians anchor the hinge utilizing three positioning holes per leaf, creating a total of six robust fastening points that secure moving framework sub-assemblies without necessitating secondary machining modifications.
Applications
Technicians regularly deploy these six-hole aluminium hinges at pivot points and rotational intersections across modular enclosures built from standard 40 Series T-Slot profiles. For example, assembly teams utilize these articulating components to mount access doors, swinging panels, protective hatches, or adjustable equipment linkages within automated machinery setups, safety guarding enclosures, and custom industrial workstations.
The integrated positioning grooves ensure the hinge leaves remain perfectly parallel to the profile face when subjected to repetitive cycles of mechanical movement. Meanwhile, builders must note that the physical hinge layout and track groove dimensions match the 40 Series profile family constraints exactly. As a direct result of these unalterable boundary dimensions, this hardware configuration does not interface with smaller 20 Series V-Slot extrusion framing profiles.
Technical Specifications

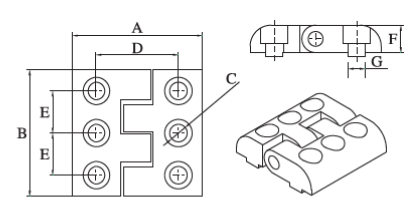

Drawings
| A | B | C | D | E | F | G | kg |
| 62mm | 60mm | 8.3mm | 40mm | 20mm | 13mm | 8mm | 0.11 |
Maker Store Tips and Tricks
-
Align the external tracking grooves completely inside the profile channel before introducing and tightening your assembly fasteners.
-
Ensure all six mounting bolts are fully tensioned to maintain perpendicular leaf tracking and eliminate minor deflection during heavy cycles of use.
-
Verify there is adequate structural clearance along the surrounding framework paths to allow uninhibited movement throughout the nearly 180-degree rotational arc.
What makes T-Slots such an easy assembly task?
Constructing frames from T-Slot extrusions is straightforward as they eliminate the need for specialized tools or welding, thereby simplifying the assembly process. To build frames using T-Slot Linear Rail, you will require:
- 40 Series T-Slot Extrusions: These form the main structural components, usually crafted from aluminium, with slots along their lengths for easy connection of various parts and accessories. Additionally, their robustness ensures they hold up well over time.
- 40 Series Brackets and Connectors: These specialized components fit snugly into the T-Slot extrusions, securing them together at various angles. The range includes corner brackets, T-nuts, L-shaped brackets, and other connectors. Besides, they are easy to install and adjust as needed.
- Fasteners: Utilize Bolts, screws, and nuts to securely attach the brackets and connectors to the T-Slot extrusions. Furthermore, their variety allows for flexible assembly solutions.
- Tools: Basic hand tools such as wrenches, Allen keys (hex keys), and screwdrivers are necessary for assembly. Additionally, a saw may be needed to cut the T-Slot extrusions to your desired lengths.
