Description
AT LAST A RACK AND PINION SYSTEM FOR V-SLOT!

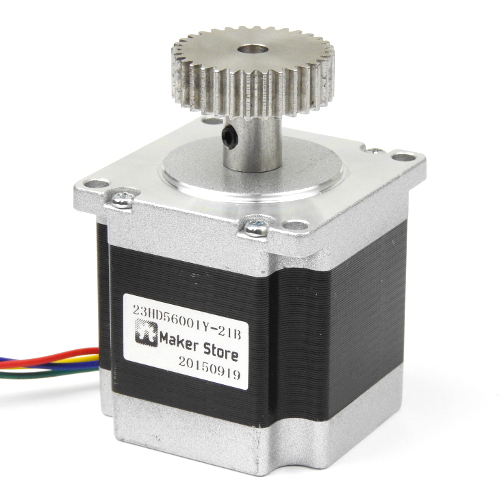

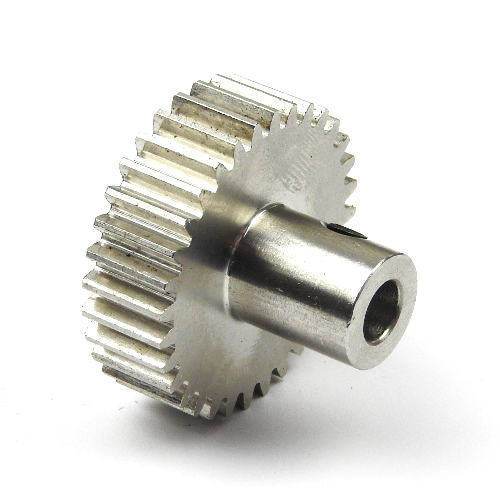

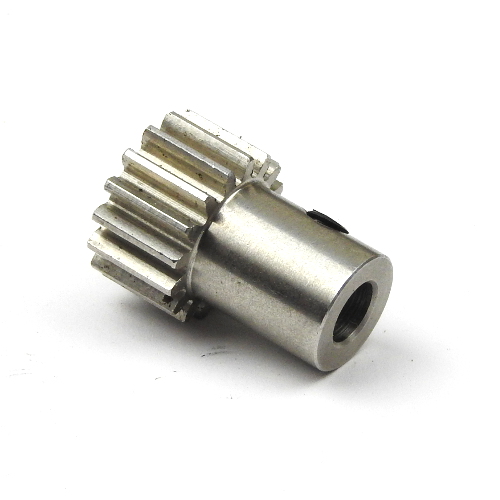

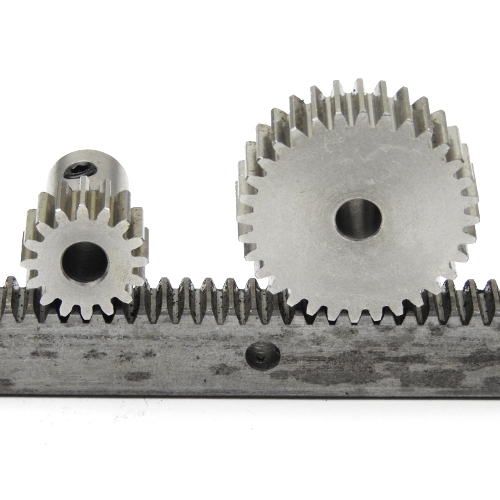

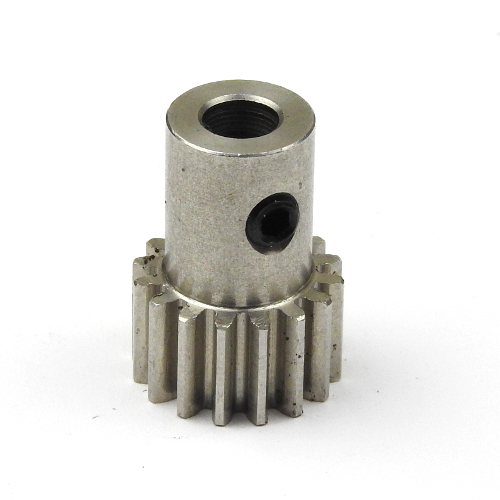

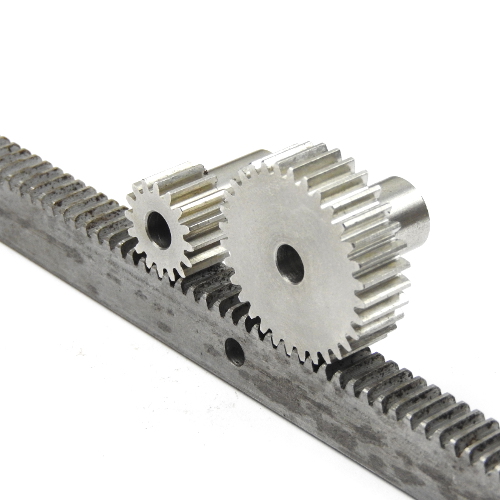

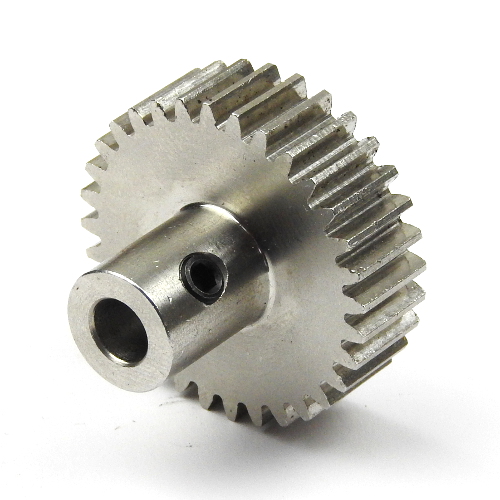

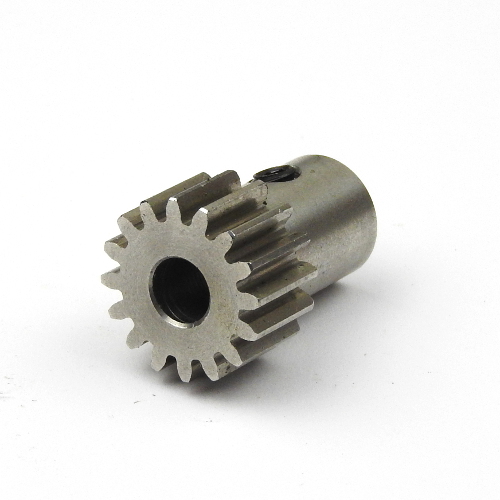

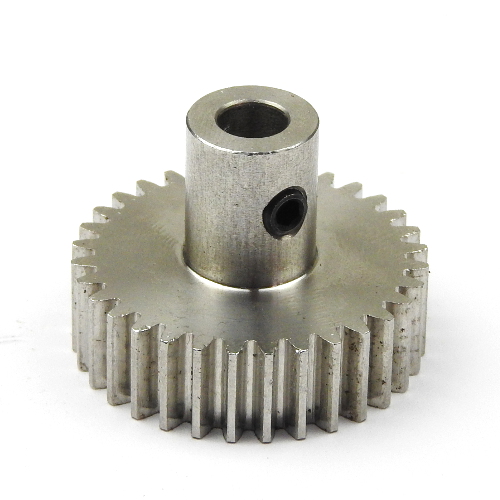

These Gears are specially designed to work with the Maker Store Module 1.0 Gear Racks and V-Slot linear rails. Fully compatible with our NEMA23 Stepper Motors and featuring an extra long (15mm) collar.

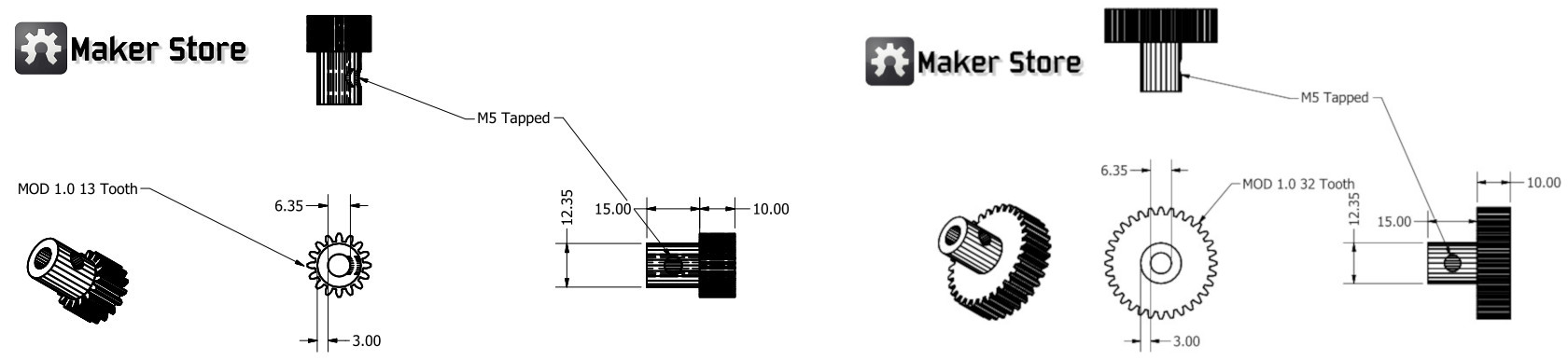

Specifications:
- Module 1.0
- 16/20/32/40 Tooth
- 20° Pitch Angle
- Length: 25mm
- Set Screw: M5 x 5mm (included)
- Bore DIA: 6.35mm (compatible with our 6.35mm Shank Motors)
- Finish: Steel
Outside diameter
The outside diameter of the gears can be calculated by adding two to the number of teeth and then multiplying by the module (Mod 1 in this case). This formula accounts for the additional material extending beyond the pitch circle, which is essential for ensuring proper meshing with other gears.
Here’s the formula for calculating the diameter:
Outside Diameter = (Number of Teeth + 2) × Module
| Teeth | Pitch Diameter (mm) | Outside Diameter (mm) |
|---|---|---|
| 16T | 16 mm | 18 mm |
| 20T | 20 mm | 22 mm |
| 32T | 32 mm | 34 mm |
| 40T | 40 mm | 42 mm |

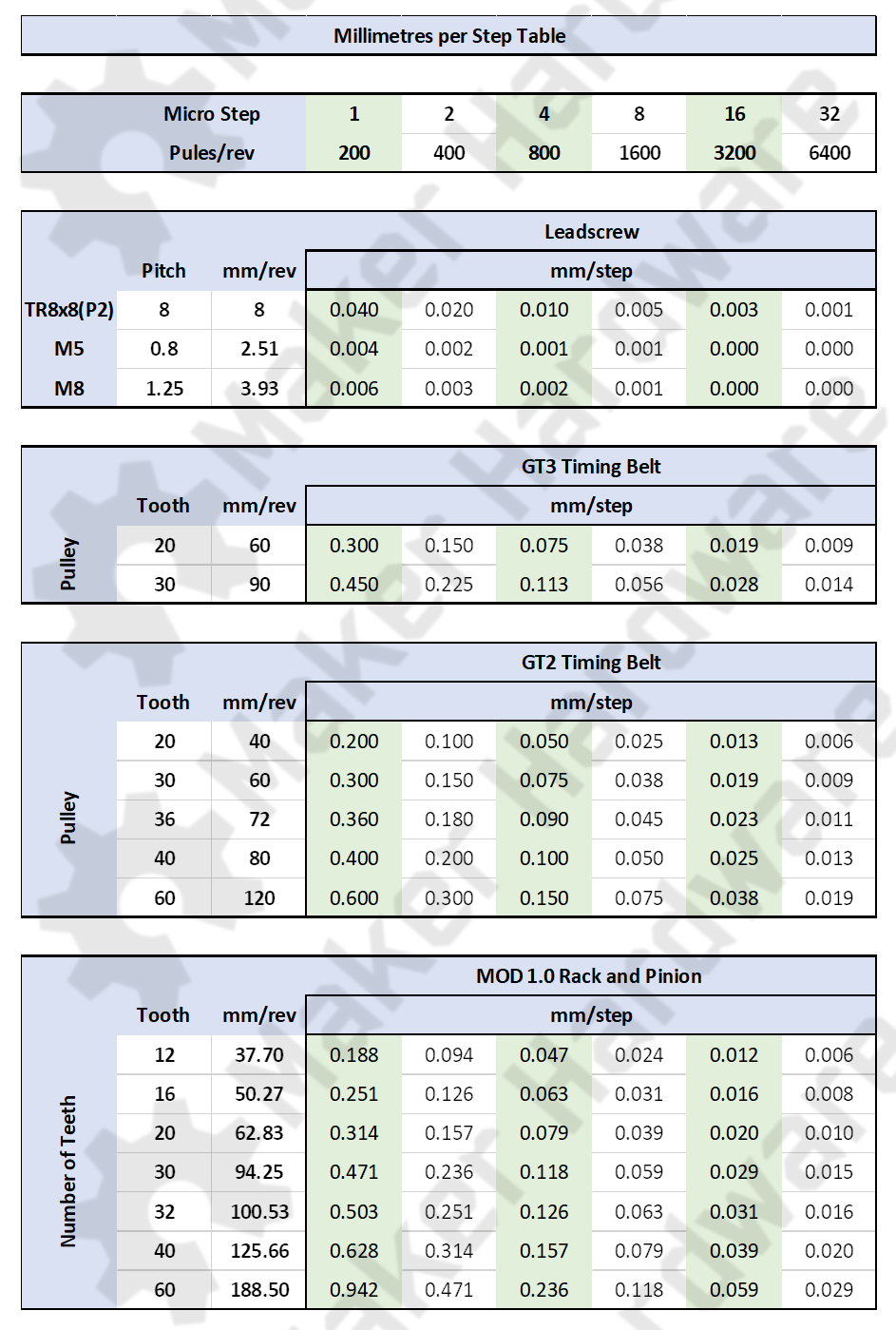

Millimetres Per Step compared to Lead Screw and Belt & Pulley Systems:
