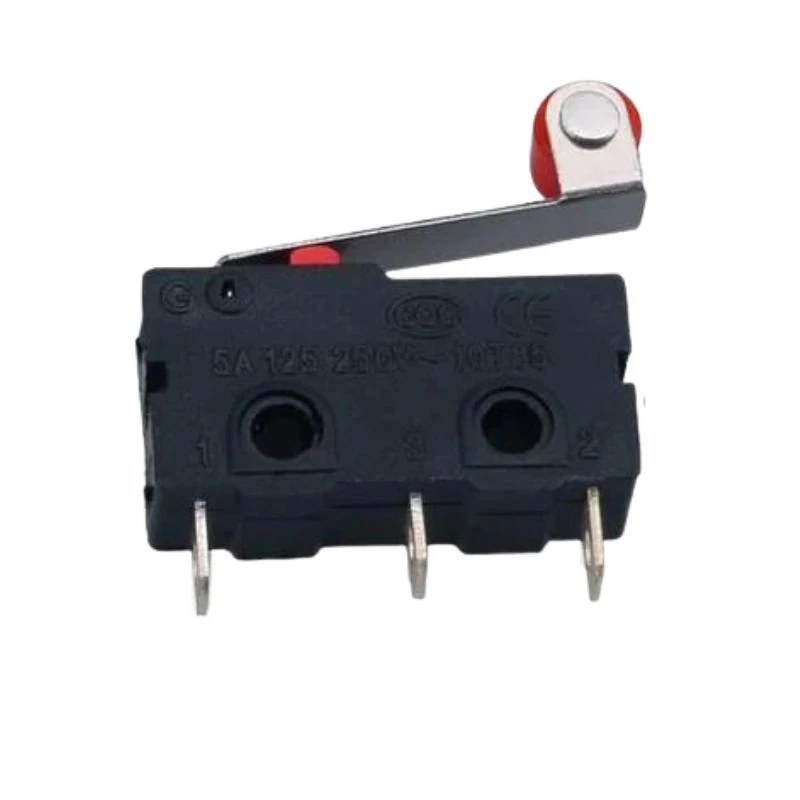

Description
This micro limit switch works great on small automated machines like for example 3D Printers, Robot arms, and other engineering projects. Widely used in electronic equipments, Microwave Micro Door/Oven/Refrigerator Interlock N/O / N/C Switch etc.
Specifications:
- Current: 0.5A
- Voltage: 125V / 250V
- Action Type : Momentary
- Terminal Type : 3 Pins
- Material : Plastic, Metal
- Colour : Black, Red, Silver
- Mounting Hole Dia: 2mm

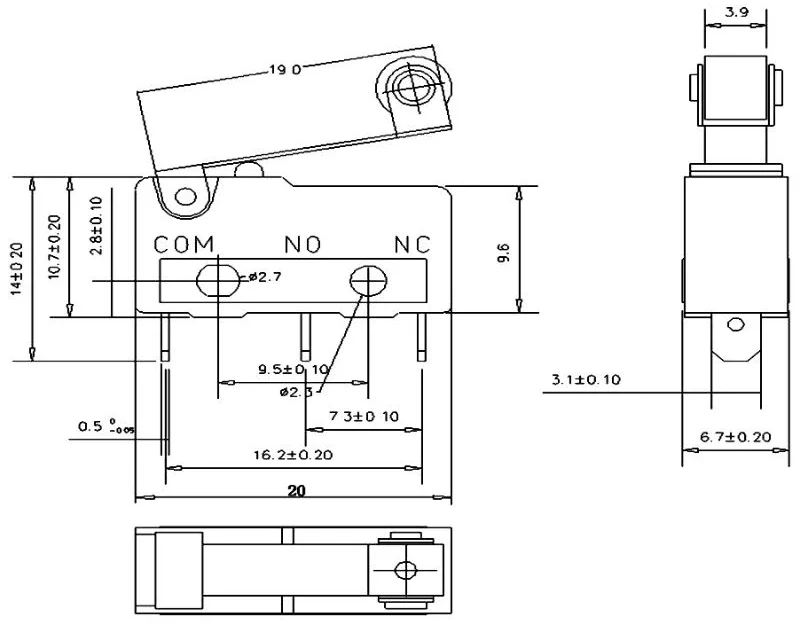

Technical Drawing:
NOTE:

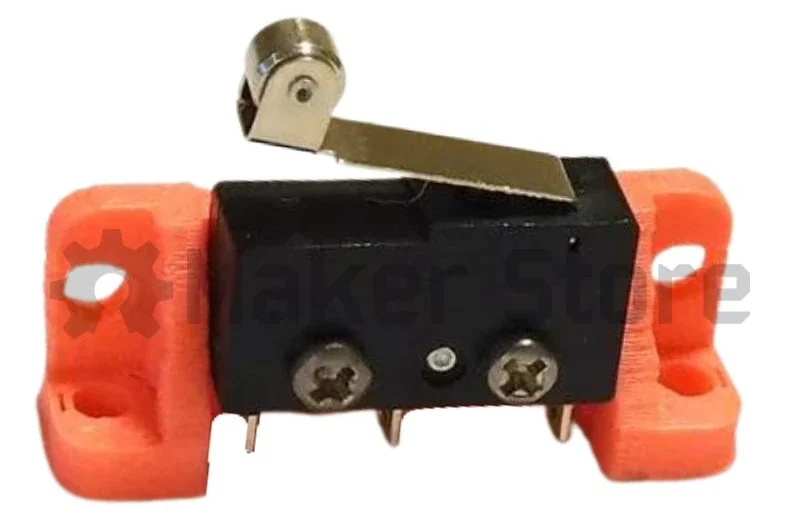

The holes in the switch will need to be opened a little (3mm drill bit) to allow for the M3 screw or alternatively you can use a M3 tap to cut a thread into the plastic.
