Description

Technical Overview

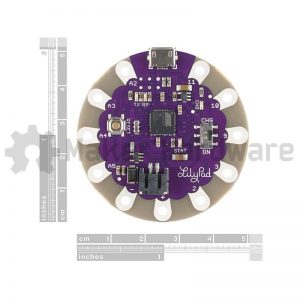

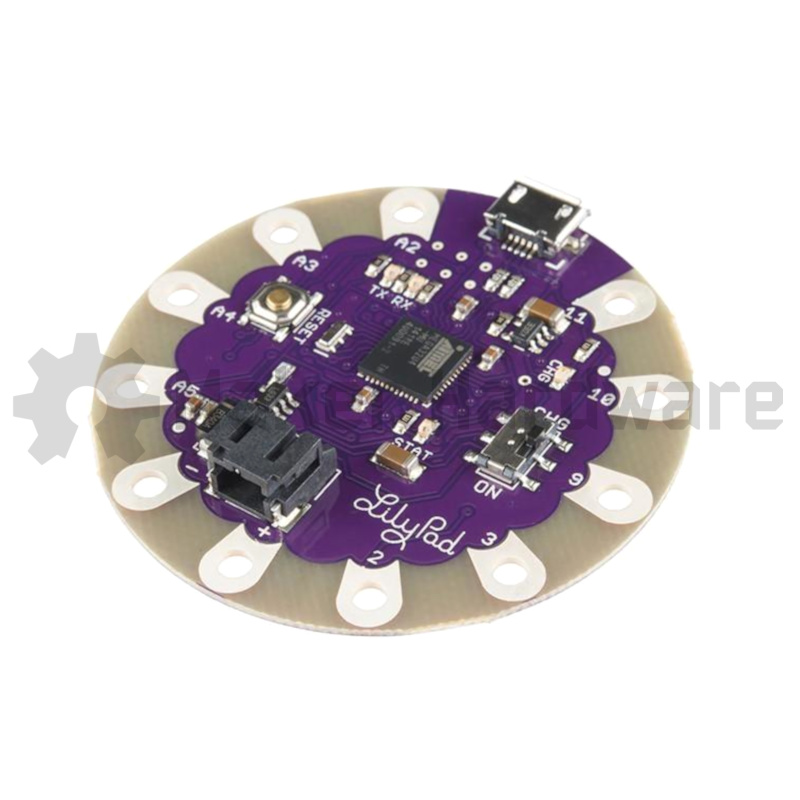

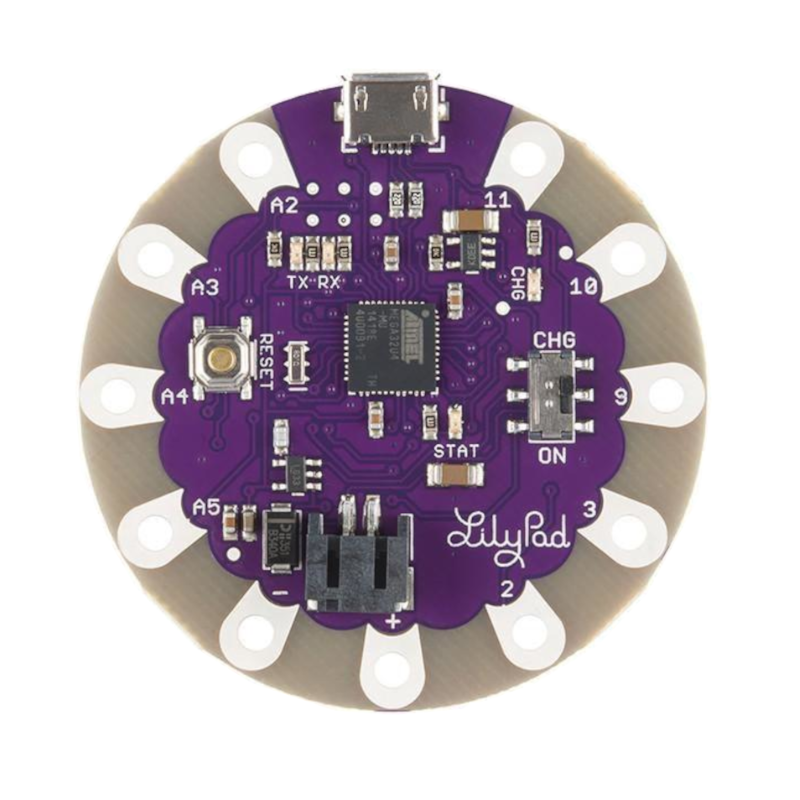

The USB ATMega32U4 Development Board provides a sewable microcontroller solution built around the ATMega32U4 processor. Specifically, the manufacturer integrates native USB connectivity directly into the microcontroller chip itself. Consequently, this design eliminates the need for an external USB-to-serial adapter altogether. Furthermore, this built-in interface allows the board to emulate a standard computer keyboard or mouse seamlessly.

In addition, this board simplifies your overall hardware design process by removing the requirement for an external power supply. Instead, it features an integrated on-board power switch alongside a dedicated JST socket. Therefore, you can connect and charge a 3.7V Li-Po battery directly through the hardware. As a result, the device streamlines the entire integration process for wearable electronic systems and interactive projects.

Applications

Engineers and creators primarily use this development board in e-textiles, wearable technology, and interactive sewable electronics projects. For instance, the compact board acts as the central control unit for projects that require low-profile hardware sewn directly into fabrics or everyday garments. Moreover, its native USB support allows developers to build custom human interface devices (HIDs) with ease. Consequently, people frequently design specialized wearable keyboards, assistive input devices, and interactive clothing controllers using this platform.

Meanwhile, the built-in battery management system makes the unit ideal for portable, untethered applications. External charging circuitry often restricts wearable designs due to added bulk. However, this board eliminates that issue completely. Ultimately, it offers a reliable, self-contained power and control system for mobile tech projects.

Technical Specifications

Specification	Value
Model	ATMega32U4
Digital I/O Pins	9 (4 can be used as PWM outputs and 4 as Analog inputs)
Resonator	8 MHz
Input Voltage	3.8V to 5V
Operating Voltage	3.3V
Battery Connection	JST Socket for direct connection to a 3.7V Li-Po Battery
Interface Connection	Micro USB
Flash Memory	32 KB
Integrated Features	On board power switch, LiPo Battery rechargeable through the board
Outer Diameter	50mm
Height	7.5mm

Maker Store Tips and Tricks

• Ensure the on-board power switch is set to the correct position before trying to program the board via micro-USB.

• Use conductive thread or thin gauge wire securely wrapped around the sewable pads to prevent short circuits or intermittent power connections.

• Do not attempt to charge a Li-Po battery using an input voltage higher than the specified 5V limit.
