Please Note:These 22mm Latching Push Buttons are sold separately. Don’t forget to grab a connector and a 22mm Nut Wrench for your projects! |
| Connector and Cable for 22mm Push Button
|
22mm Nut Wrench
|
$3.41 Inc. GSTAdd to cart |
$3.69 Inc. GSTAdd to cart |

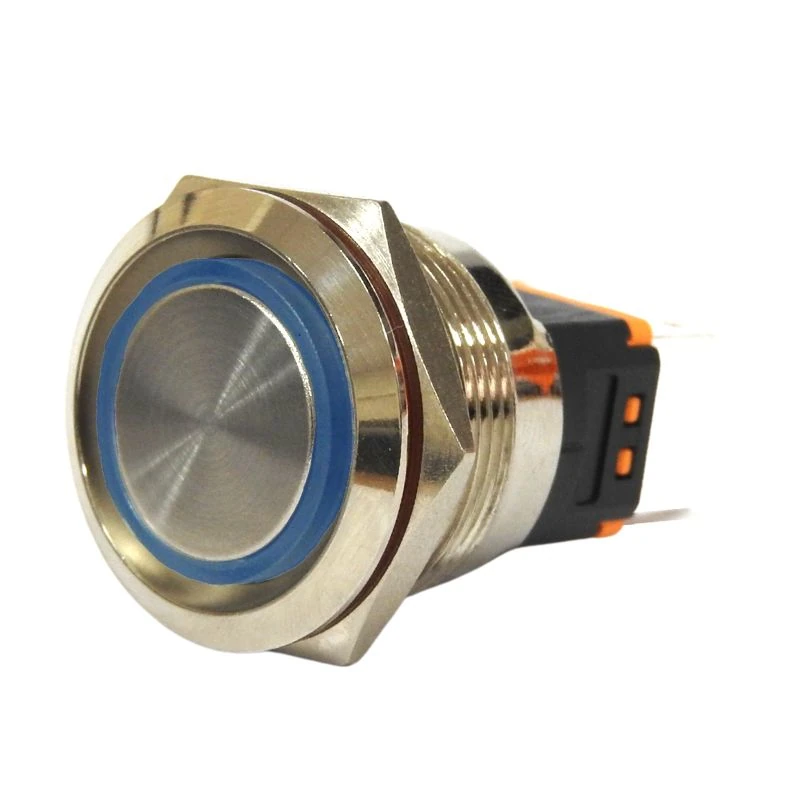

Our Maker Store Panel Mount 22mm 15A push buttons are the perfect pairing for applications that need visual feedback when a device is ON/OFF. These buttons have a Blue LED and can switch loads up to 15A, and they are Ideal to be used with a contactor to control even heavier loads or to send digital signals to a PLC or a microcontroller.

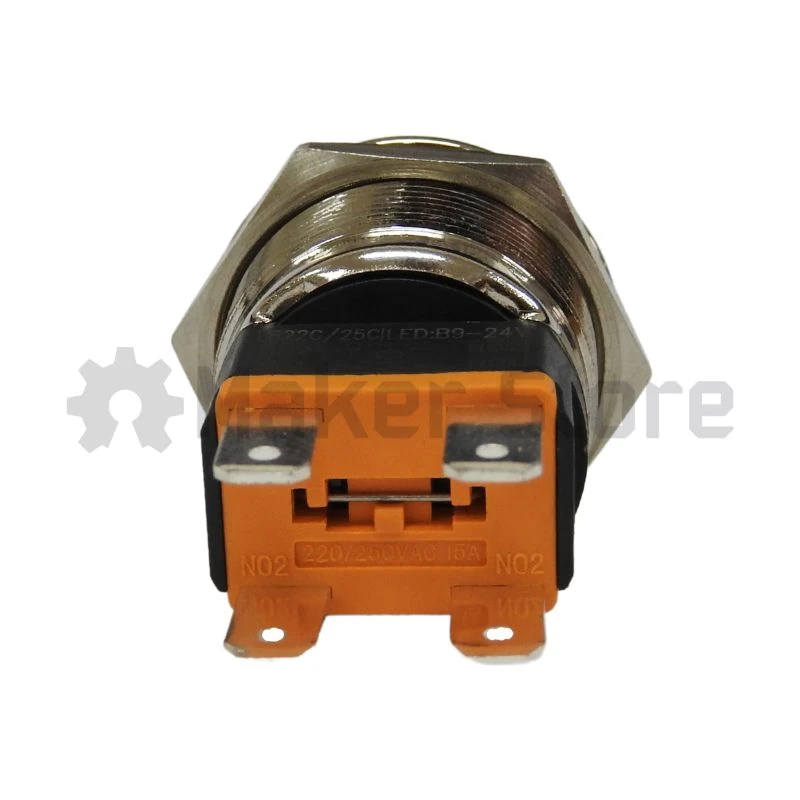

The Push Button has a Brass Nickel plated shell that makes it corrosion and wear resistant. The button has 4 silver-plated pins that ensure high conductivity and long service life. The 2NO configuration lets you control the on/off of two lines at the same time.
“Type A” refers to the LED ring (Option E)
Specifications:
- Protection Level: IP67
- Max. Current: 15A
- Colour: Blue
- Voltage: 250VAC
- Diameter: 22mm
- Switch Combination: 2NO
- Operation type: Latching
- Emitting Type: Ring LED
- Waterproof/Protection: IP67/IK10

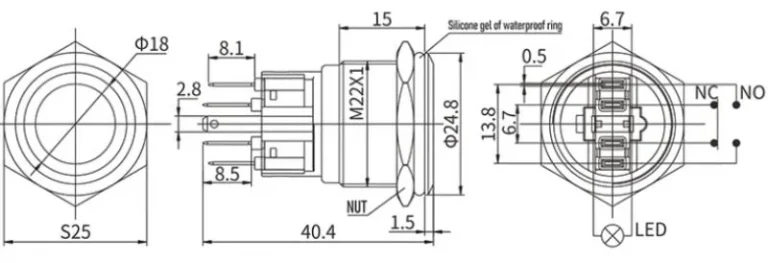

Technical Drawing:
Pro Tips:

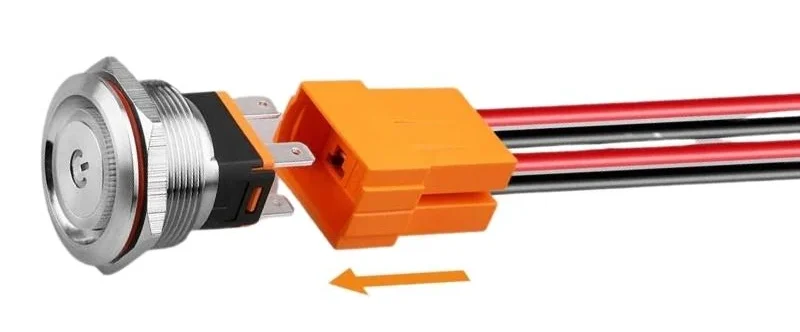

- Don’t forget to grab a connector too! They are perfect pairings for these buttons. The connector is designed to save time and effort by avoiding tedious soldering.
- To Avoid overtightening, you can use a 22mm Nut Wrench that was specifically designed for Push Buttons and Led Panel Indicators.
