Push Button – 22mm Details
What is a Push Button – 22mm – Type B?

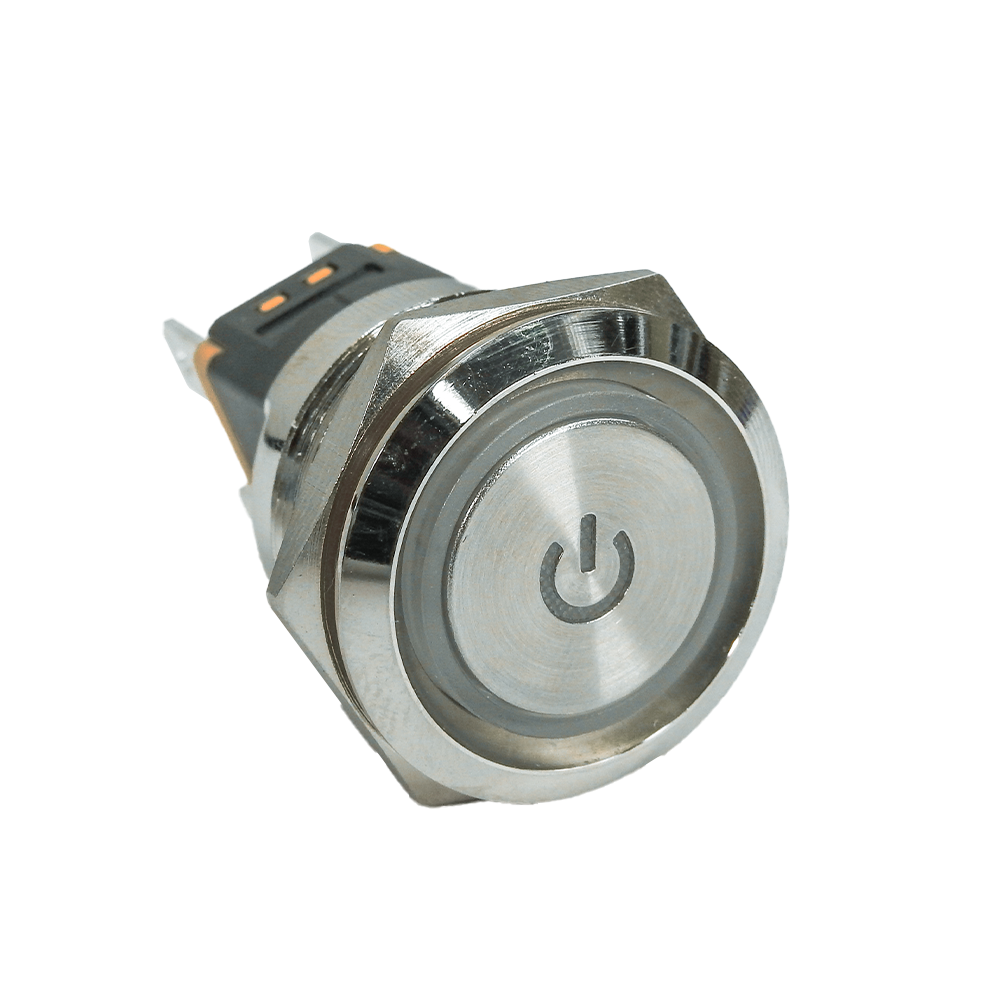

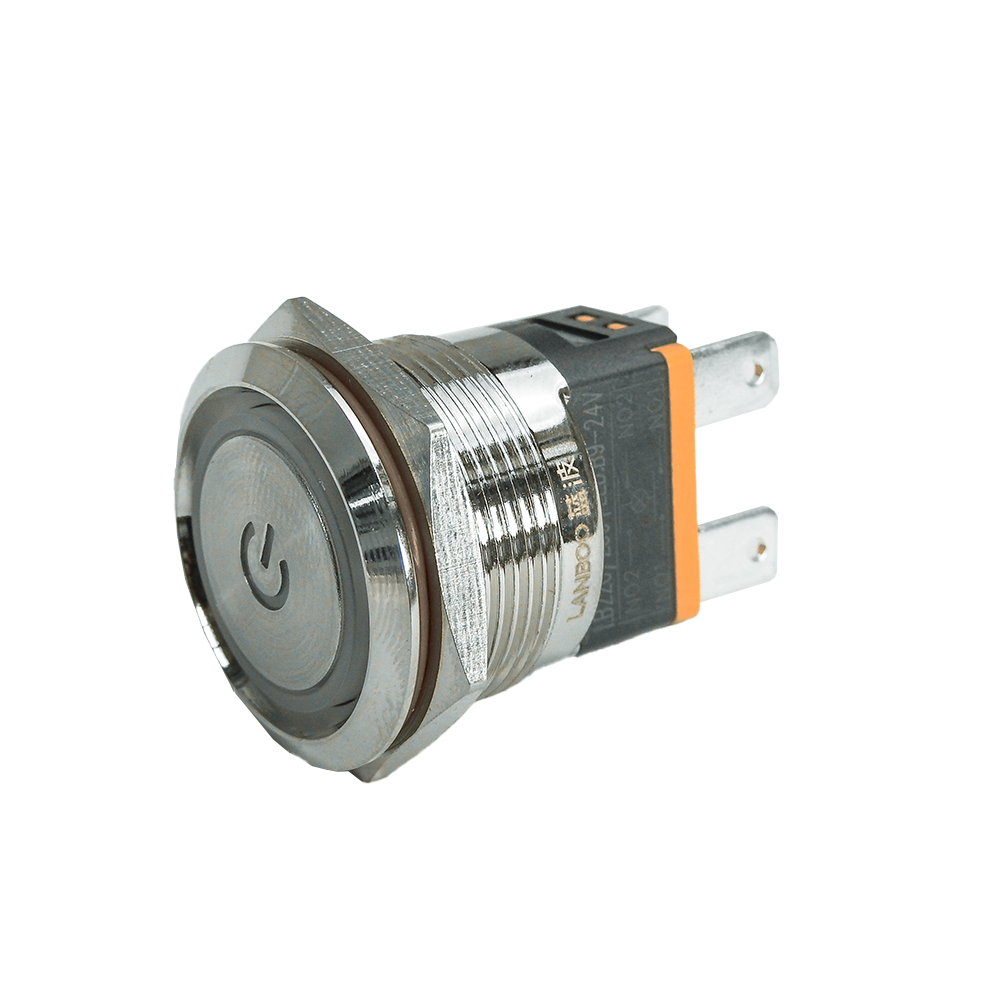

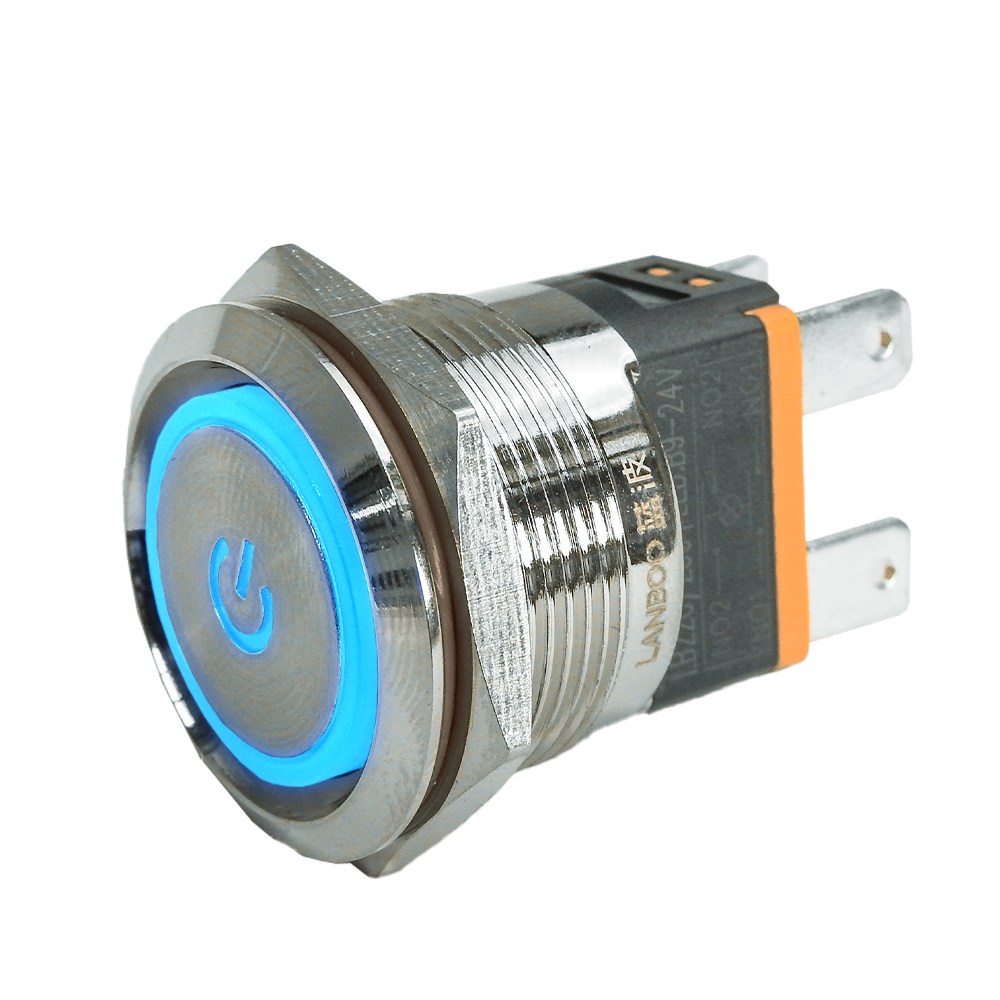

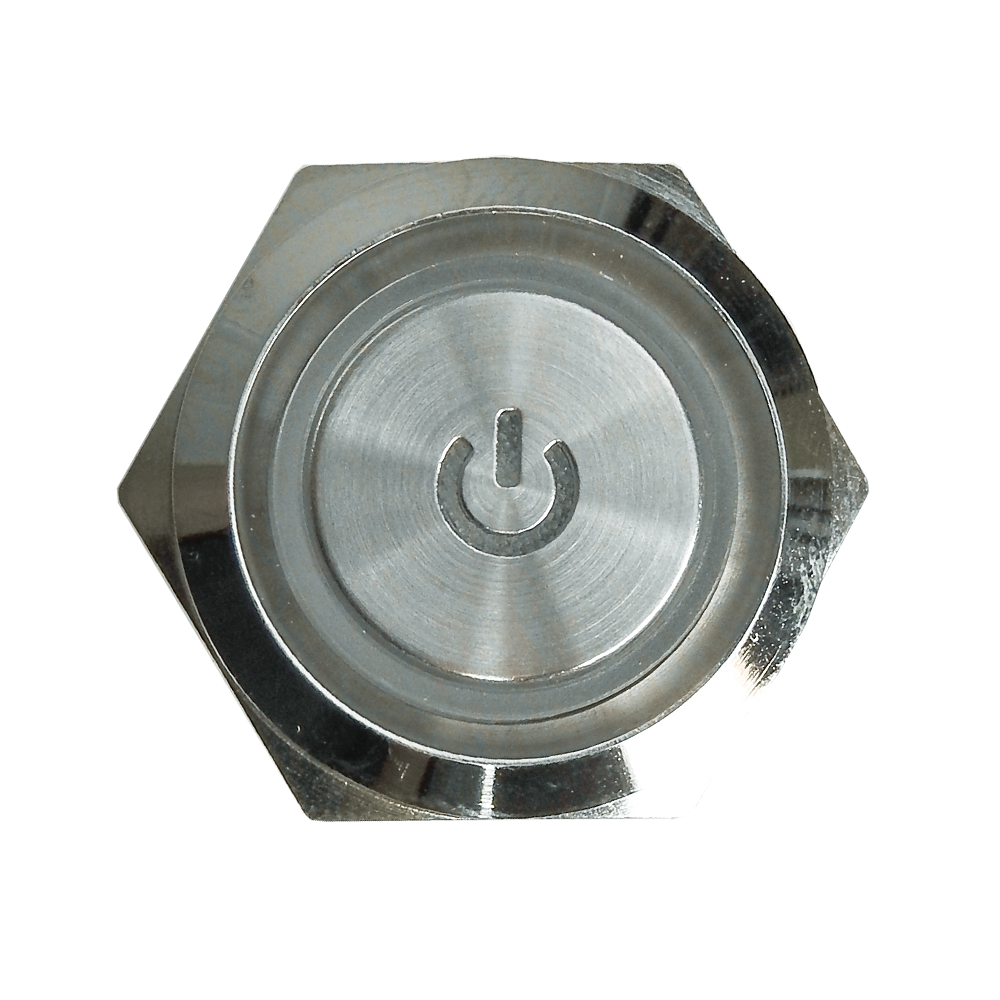

Our Maker Store Panel Mount Push Button – 22mm – Blue LED – Latching is perfect for applications that require visual feedback when a device is switched ON/OFF. These buttons have a Blue LED and can switch loads up to 15A. They are ideal to be used with a contactor or relay to control even heavier loads or to send digital signals to a PLC or a microcontroller.
The Push Button has a stainless steel shell that makes it corrosion and wear-resistant. The button has 4 silver-plated pins that ensure high conductivity and long service life. The 2NO configuration allows you to control the switching of two lines simultaneously.
Specifications
- Colour: Cyan
- Operation type: Momentary/Latching

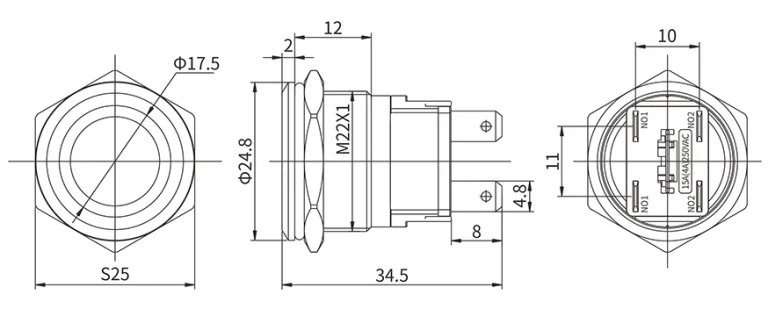

- Mounting Diameter: 22mm
- Waterproof/Protection: IP67/IK10
- Max. Current: 15A
- Voltage: 24VDC
- Switch Type: 2NO
- Nonreactive Load Current Rating: 15A
- Inductive Load Current Rating: 4A
Push Button – 22mm Pro Tips:

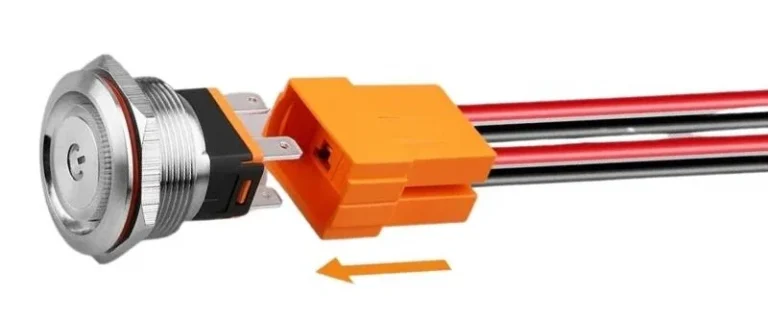

The connector is valuable and useful because it saves time and effort when it comes to connecting the buttons. Instead of having to manually solder the wires to the buttons, the connector provides an easy and hassle-free way to make the connection. This means less time spent on setup and installation, and more time available for other important tasks. Additionally, the connector ensures a secure and reliable connection between the buttons and the wires, which reduces the risk of loose connections or other issues that could affect the performance of the buttons. Overall, the connector is a valuable accessory that can make the use of the buttons much more convenient and efficient.
To Avoid overtightening and damage, you can use this high-quality 22mm Nut Wrench that was specifically designed for our range of 22mm Push Buttons and other Led Panel Indicators.
