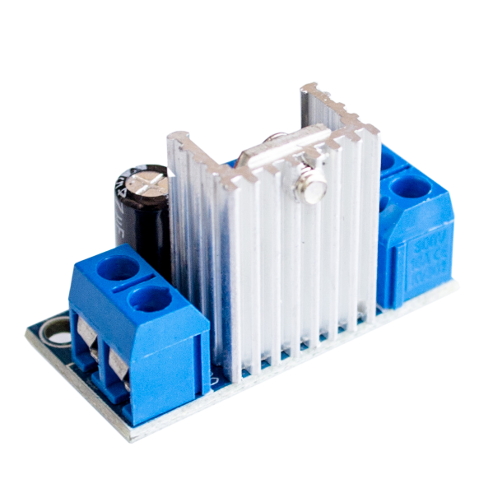

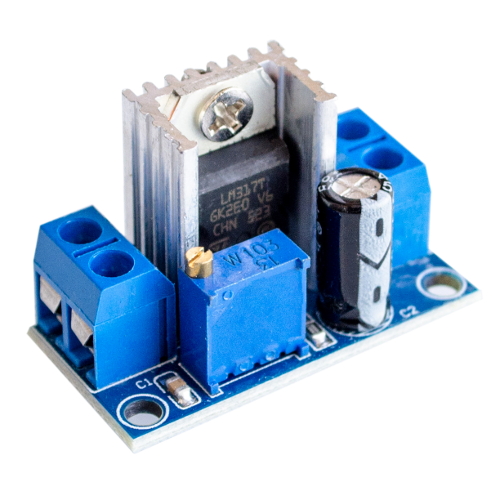

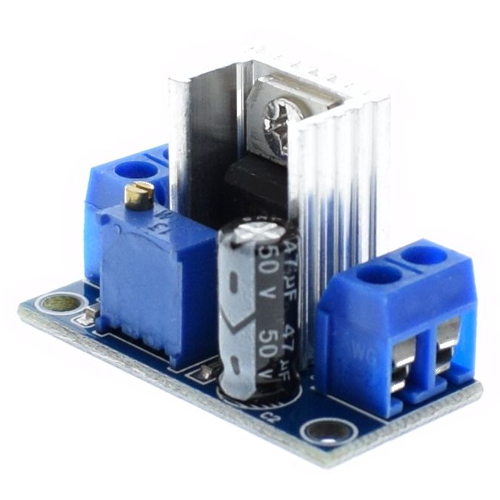

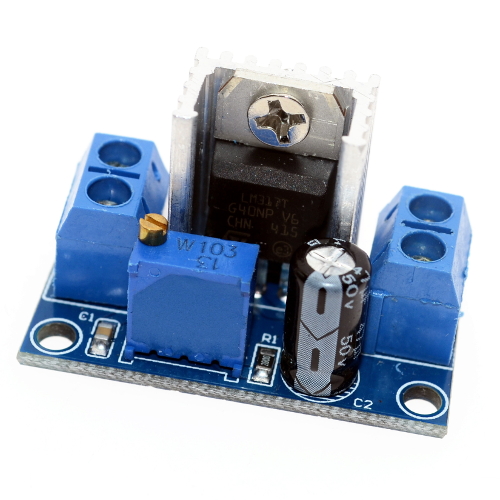

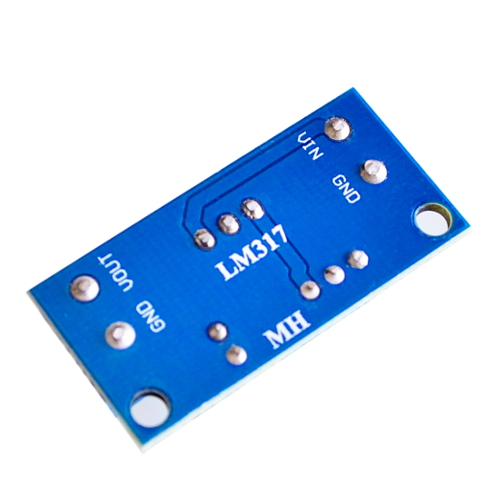

The ELEC-STEPDOWN-LM317 is an adjustable linear voltage regulator module built around the LM317 integrated circuit. It steps a DC input down to a user-set output between 1.2V and 22V using a single trim potentiometer. As a linear regulator, it dissipates the voltage difference as heat rather than switching, which keeps the output free of switching noise. It is suited to powering low-current loads such as fans, LEDs, sensors and logic circuits from a higher-voltage supply.
Applications
This module is commonly used to derive a clean lower-voltage rail from a 12V or 24V power supply for small peripherals. Typical uses include running cooling fans, LED strips, sensor boards and microcontroller logic that require a stable voltage below the main supply. It is well suited to hobby, automation and bench setups where a simple adjustable regulated output is needed without the complexity of a switching supply.
Technical Specifications
Maker Store Tips and Tricks
- Set the output voltage with the trim pot before connecting your load. Measure at the output terminals, not the input.
- Keep the input-to-output voltage difference within 24V. For example, 24V in to 12V out is acceptable; do not exceed the 24V differential.
- Linear regulators dissipate the dropped voltage as heat. At low currents (sensors, LEDs) this is minor, but at higher currents add a heatsink and allow for airflow.
- Because this is a linear regulator, it rejects input ripple, making it a good choice where a quiet supply is needed. It does not generate switching noise.
