Technical Overview
Linear motion assemblies and desktop CNC machinery use the C-Beam Gantry Plate to serve as a high-strength structural mounting platform. Engineers specifically designed this heavy-duty plate to ride cleanly inside the channels of a C-Beam linear rail profile. Within a completed motion axis, this component acts as the primary mechanical foundation that safely translates rotational motor power into smooth, precise linear movement.

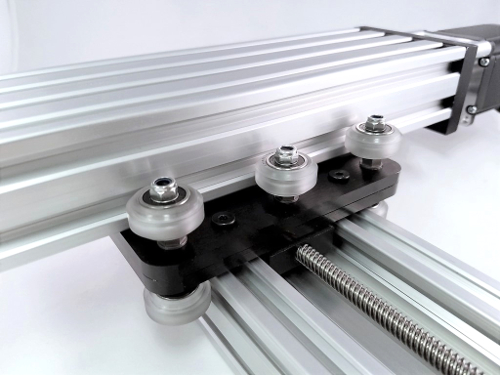

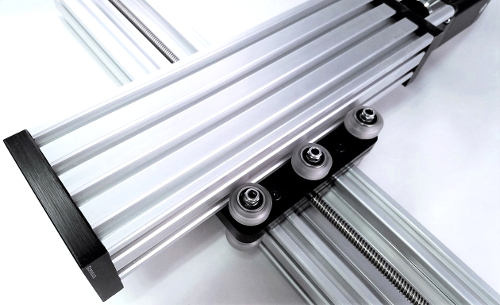

To integrate into a system, the plate features dedicated pre-drilled holes that accommodate up to a six-wheel mounting configuration for a secure and precise rail lock-in. These rollers nest directly into the internal tracks of the C-Beam extrusion, allowing the entire carriage assembly to glide back and forth smoothly and without wobble. Furthermore, the wide wheel spread layout along the axis makes for a very sturdy mechanical build. Because the internal wheel setup keeps the rollers tucked inside the channel, the outer faces of the C-Beam rail remain completely clear, leaving ample space to cleanly mount motors, limit switches, or additional structural accessories.
Applications
Operators primarily utilize this hardware platform within CNC routers, milling machines, large-format 3D printers, and heavy-duty laser engravers. In routing and milling applications, the carriage provides the structural stiffness required to support heavy spindles, routers, and dynamic Z-axis assemblies without flexing under loading forces. For 3D printing and laser setups, it acts as an exceptionally stable moving carriage to carry print heads, laser modules, or heavy build beds across the gantry system.

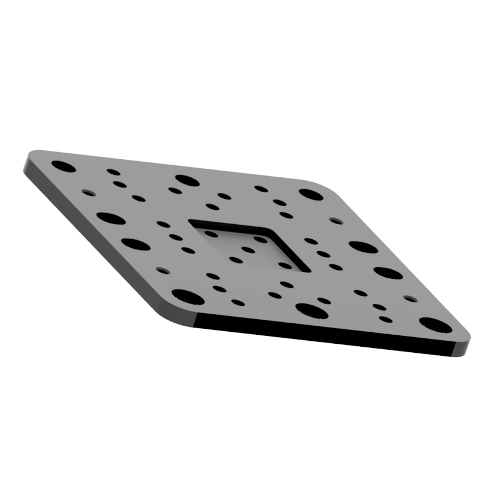

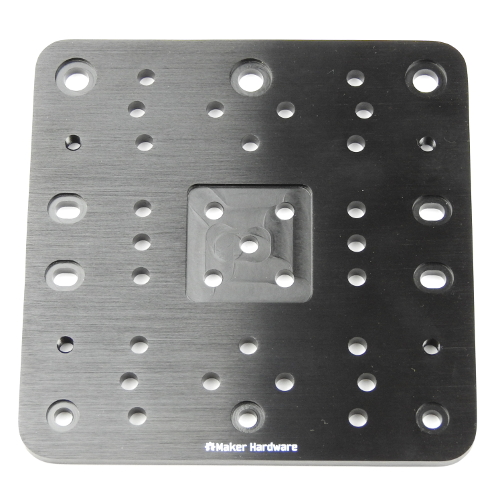

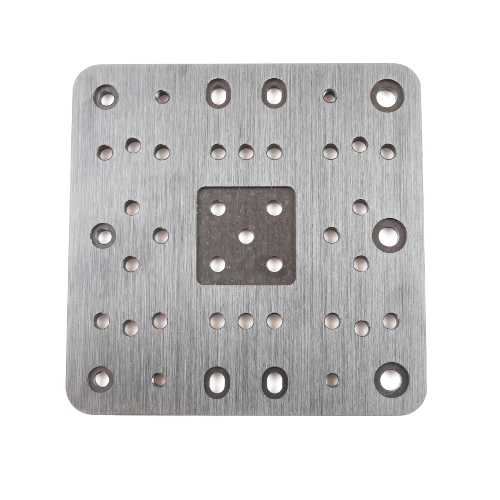

To fit diverse drive preferences, the plate accommodates multiple power transmission configurations. The center recess allows for standard single nut block mounting, while adjustable end holes allow for creating a very accurate and reliable double Nut Block system for a high-precision lead screw drive. Alternatively, builders can configure the plate to interface with belt-driven setups. Technicians manufacture the plate from strong 6mm thick 6061-T5 aluminum, featuring recessed screw pockets that ensure flush mounts. Moreover, the brushed black anodized finish provides a polished look while guarding the structural core against operational friction.
Technical Specifications
Maker Store Tips and Tricks
-

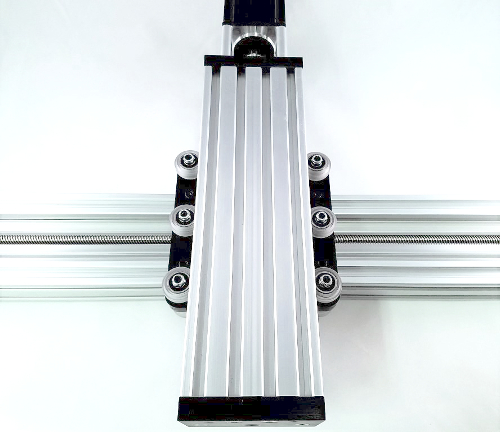

Use the pre-tapped mounting holes to mate this plate at 90 degrees to another plate, instantly creating a rigid, high-performance XY or Z multi-axis system.
-
Pair the wheel assemblies with eccentric spacers on one side of the plate to easily dial out any play and adjust the carriage preload against the internal C-Beam tracks.
-
If using a lead screw drive, loosely mount the nut block first, drive the gantry toward the end plate to square the axis, and then do your final tightening to prevent binding.
Use in conjunction with either the Solid V Xtreme Wheels or the Solid V Delrin Wheels.
Note:
“C-Beam” is a trademark of Openbuilds.
