Compatible With

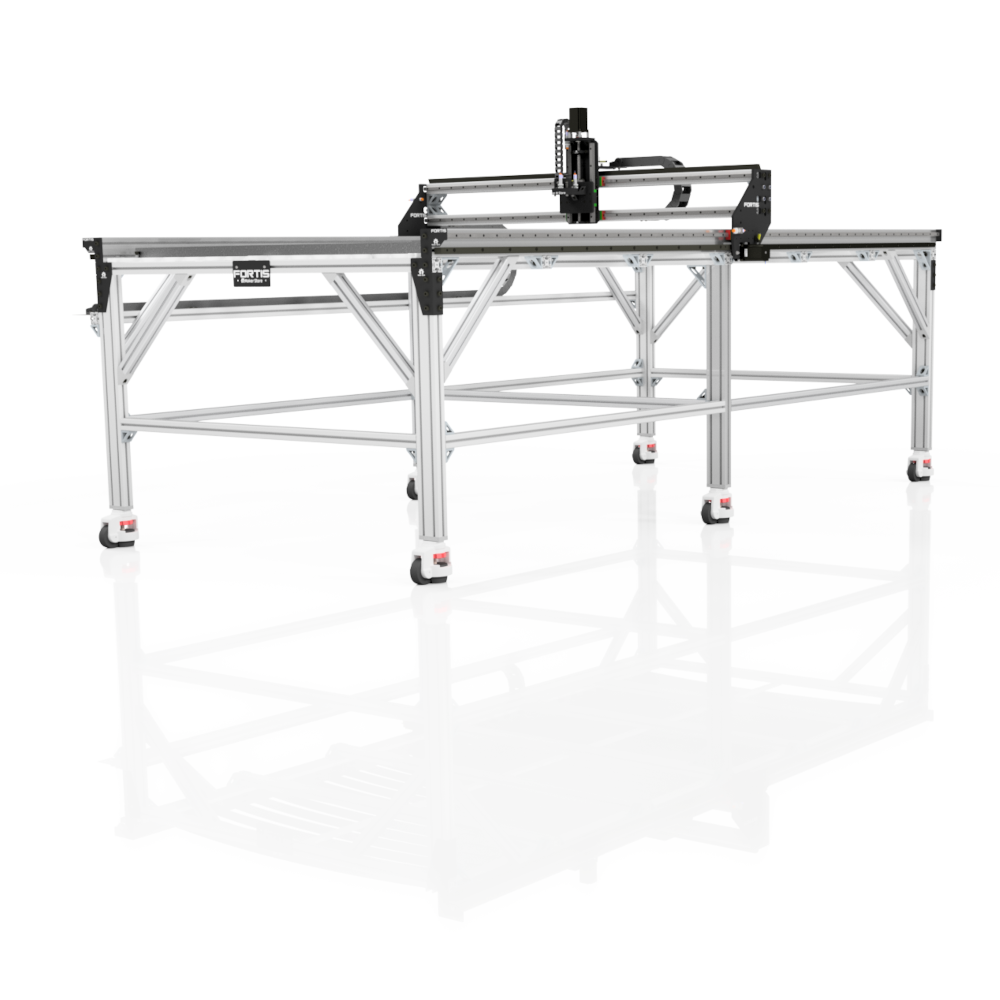

This T-Slot 40x80 extrusion length is part of the Table for FORTIS CNC - 1000x1500mm , 1500x1500mm , 1500x3000mm

This T-Slot 40x40 extrusion length is part of the Table for Fortis CNC - 1500x3000mm.

This T-Slot 40x40 extrusion length is part of the Table for Fortis CNC - 1500x1500mm.

This T-Slot 40x40 extrusion length is part of the Table for FORTIS CNC - 1000x1500mm, 1500x1500 and 1500x3000 .

This structural component is an aluminium 6063-T5 four-hole gusseted corner bracket featuring a stacked-hole layout and an integrated mechanical 2-degree drop-lock alignment mechanism. The component functions as an external reinforcing tie-plate to establish perpendicular 90-degree joints between 40 Series T-Slot aluminium linear extrusions, engaging as the M8 mounting fasteners are torqued to distribute loads and resist bending moments. Typical applications include reinforcing framework intersections on machinery bases, custom workshop fixtures, industrial automation enclosures, material handling systems, and modular support stands requiring precise axis squareness under directional stress.

Compatible With

This aluminium 6063-T5 two-hole gusseted corner bracket establishes rigid 90-degree internal corner joints between intersecting 40 Series T-Slot linear profiles. The component mounts directly into open extrusion channels via standard M8 fastening hardware, utilising an integrated gusset to provide structural alignment and joint reinforcement against bending moments, alongside a 2-degree drop-lock mechanism to prevent profile slippage. Typical applications include the construction of adjustable modular frames, protective machine enclosures, and industrial workspace partitions requiring variable positioning along a T-slot axis.

Compatible With

This cast aluminium structural reinforcing component is designed to bridge corner interfaces at a 45-degree angle on 40 Series T-slot aluminium extrusion profiles. Its primary function is to provide frame stability and triangular reinforcement across multi-axis angular configurations, anchoring adjacent segments firmly to distribute physical stress evenly and resist shear forces and operational vibrations. The unit mounts directly between intersecting rails within the profile channels, establishing a flush baseline profile interface restricted exclusively to 40 Series dimensions. Typical applications include reinforcing structural corners and critical angular connections on automated machinery setups, safety guarding enclosures, material handling systems, and modular industrial workstations.

Compatible With

Socket Cap Screws are high strength fasteners, with an Internal Hex or Allen drive style and cylindrical barrel-shaped head. The head diameter is typically 1.5 times or more, the diameter of the screw thread.

Socket Cap Screws are high strength fasteners, with an Internal Hex or Allen drive style and cylindrical barrel-shaped head. The head diameter is typically 1.5 times or more, the diameter of the screw thread.

This carbon steel sliding T-nut acts as an anchoring point designed for insertion into the end channels of 40 Series T-Slot aluminium extrusions. Featuring a thicker profile than standard variants, the component maximises screw-to-thread engagement to secure structural cross-members and hardware parts within a modular frame. It accommodates metric fastener sizes ranging from M4 to M8, making it suitable for both temporary and permanent mechanical joints in CNC machines, 3D printers, robotics, and industrial instrumentation layouts.

Compatible With

This structural fastening hardware is a nickel-plated carbon steel roll-in T-nut featuring an integrated spring-loaded ball bearing retention mechanism and an elongated body thickness designed to maximise thread engagement. The component functions as a self-aligning friction interface within internal profile channels, resisting gravity-induced sliding to facilitate the pre-positioning and anchoring of adjacent cross-members without requiring framework disassembly. Available in standard M4, M5, M6, and M8 metric thread variations, the nut distributes localized clamping stress evenly across external profile slots, making it suitable for securing linear rails, actuator brackets, custom tool gantry plates, and modular workspace fixtures within 40 Series T-Slot aluminium profile systems utilised in precision CNC machines, industrial 3D printers, and automated robotic sub-assemblies.

Compatible With

This component integrates a wheel and an adjustable rubber foot within a moulded cast aluminium body to deliver both mobility and stationary stability. A manual adjustment knob raises or lowers the foot to transition between a fixed position and transit mode. The unit secures to 20 Series or 40 Series aluminium extrusion profiles using an M12 threaded stem, connecting via a foot bracket or mounting plate to support static loads up to 500kg per wheel. Technical users deploy this component to support, level, and relocate movable workbenches, assembly lines, machinery enclosures, workstations, fitness equipment, and medical beds.

Compatible With
