Description

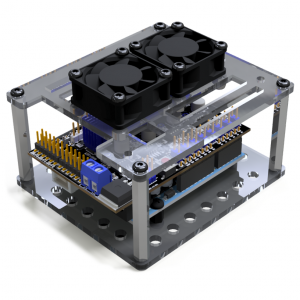

The Maker Shield CNC Controller was designed right here in house at Maker Store.
This CNC Controller Bundle contains all the hardware for powering and controlling your CNC Machine.
The cables on this “Extra Small” Bundle are designed for machines up to the following size:
- 500mm x 500mm
For bigger machines, see our Maker Shield Controller Bundle – Large

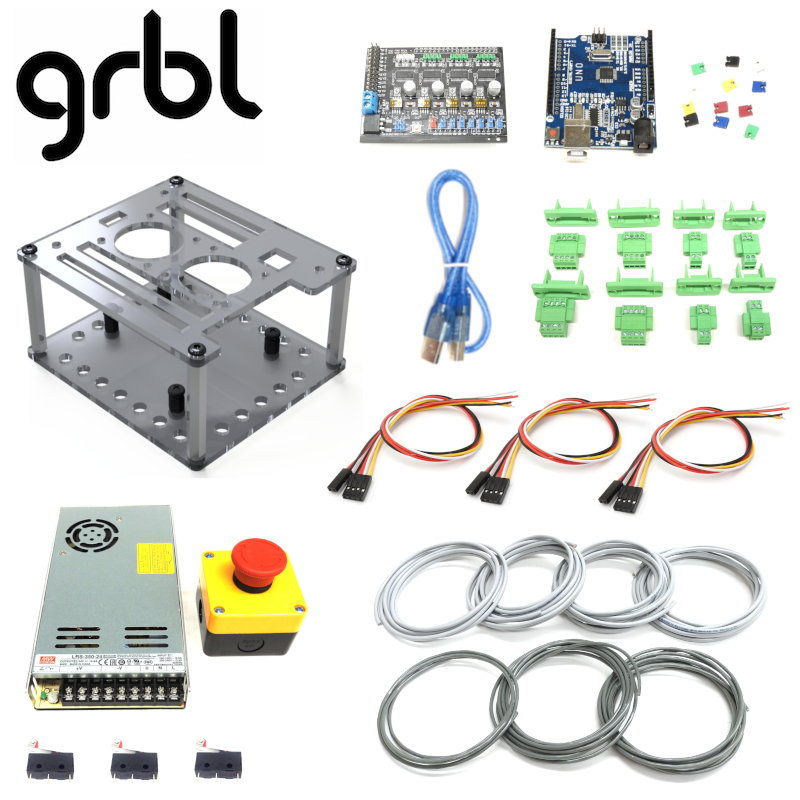

Maker Shield Controller Bundle Includes (Bill of Materials):
| Description | SKU | QTY |
| Maker Shield CNC Controller | ELEC-MAKERSHIELD | 1 |
| Arduino(Compatible) UNO R3 with usb cable | ELEC-UNOAT16U2 | 1 |
| Power Supply – 24V 350W | ELEC-LRS-350-24 | 1 |
| Plug-in Connector Terminal Block – EDG 3.81mm – 4 Pin – Black | ELEC-EDG-P-381-4P-B | 4 |
| Plug-in Connector Terminal Block – EDG 3.81mm – 2 Pin – Black | ELEC-EDG-P-381-2P-B | 4 |
| Female Dupont To Wire 300mm – 4pin | ELEC-CABLE-DUP-4P-300 | 4 |
| Female Dupont To Wire 300mm – 2pin | ELEC-CABLE-DUP-2P-300 | 6 |
| DC Cable – 2 Core 3mm | ELEC-CABLE-DC-2C-3MM | 2 |
| Micro Limit Switch Kit with Mounting Plate | ELEC-MICRO-KIT | 3 |
| 30mm Brushless 24V DC Cooling Fan | ELEC-FAN-30X30-24V | 2 |
| CNC Cable Pack – Small | ELEC-CABLE-CNCPACK-XS | 1 |
| Emergency STOP Button N/C Switch | ELEC-MICRO-KIT | 1 |
| Maker Shield Case – Plates | PLATE-MAKERSHIELD-V1 | 1 |
| M3 Nylon Standoff Hex – 1pc | SCREWS-M3-N-STANDOFF-FF-10-1 | 4 |
| M3x6mm Nylon Screw – 1 pc | SCREWS-M3-P-N-6-1 | 8 |
| M3 Button Head Screws 6mm – 1 pc | SCREWS-M3-BH-6-1 | 4 |
| M3 Threaded Hex Spacer – 40mm | SHIM-SPAC-H-M3-55-40 | 4 |
| M3 Button Head Screws 16mm – 1pc | SCREWS-M3-BH-16-1 | 8 |
| M3 Nut – 1pc | HARD-M3NUT-1 | 8 |
| 12-way Terminal Block Strip | ELEC-TB12 | 1 |
Specifications:
Controller:
Power:
- MEAN WELL Power Supply – 24V 350W
- Output Voltage-Channel: 24 V
- Output Power: 350.4 W
- Enclosed Case
- Input Voltage: 90 VAC to 132 VAC/180 VAC to 264 VAC, 240 VDC to 370 VDC
- Output Current-Channel: 14.6 A
- Mounting Style: Chassis
- Length: 215 mm
- Width: 115 mm
- Height: 30 mm
- Input Frequency: 47 Hz to 63 Hz
- Unit Weight: 760 g
Signal:
- Stop Switch
- Max Current: 10A
- Max Voltage: AC 660V.
- Rated Load:
- AC: 220VAC / 6A, 380VAC / 4A, 660VAC / 2A
- DC: 440VDC / 0.3A, 220VDC / 0.5A, 110VDC / 1A
- TYPE: N/C
- Withstand Voltage: 2500V /the 60S
- Temperature: -25° ~ +55°
- Contact resistance: <25mΩ
- 3 x Limit Switch Kits
-
- 3 x Micro Limit Switch
- 3 x Limit Switch Plate
- 6 x M3 10mm Cap Head Screw
- 3 x M5 8mm Low Profile Screw
- 3 x M5 Drop-in Tee Nut
NOTE: The holes in the switch will need to be opened a little (3.5mm drill bit) to allow for the M3 screw to pass through the limit switch and screw into the mounting plate.
-
Resources:
The user manual for the Maker Shield which includes settings and configuration can be found in our resources hub below:
Note:
Note: Any Mains power connections must be installed by a Licensed electrician or suitability qualified person
NEVER connect or disconnect any wire(s) while power is applied.
ALWAYS disconnect power before making any connections or disconnections.
Failure to do the above may result in damage to the stepper drivers.
