Description
This CNC control kit contains the necessary hardware to retrofit an existing CNC machine’s motion system. The CNC controller, cables, power supply and drivers are included with enough cable to enable you to fit machines that have up to a 1500 x 1500mm footprint. The kit contains the HSS57 Closed-loop stepper motor driver and the AXBB-E Ethernet Motion Controller And Breakout Board Combined.
This kit suits machines that require their entire Nema23-based control systems to be replaced and all required components have been included for your convenience and ease of fitting.
Unlike traditional controller kits, this kit contains an industry-renowned controller paired with our closed-loop stepper motors making this an extremely powerful and versatile solution for CNC control.

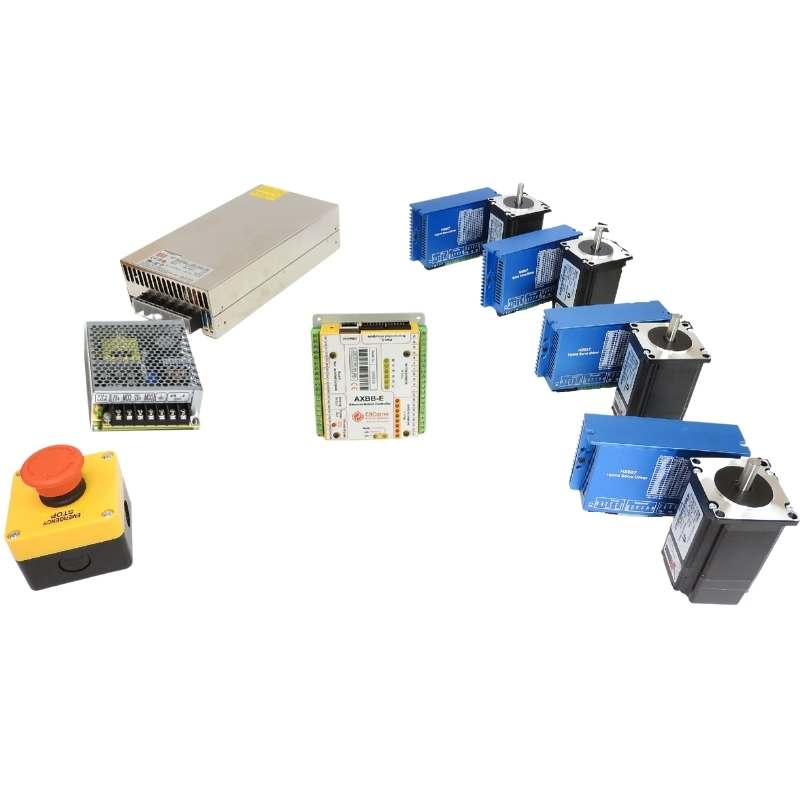

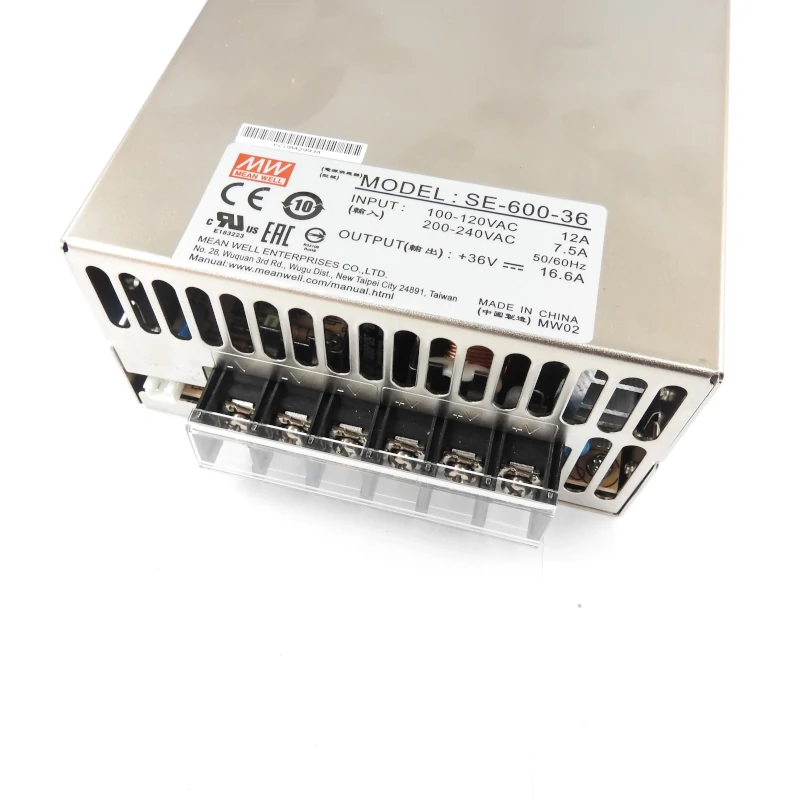

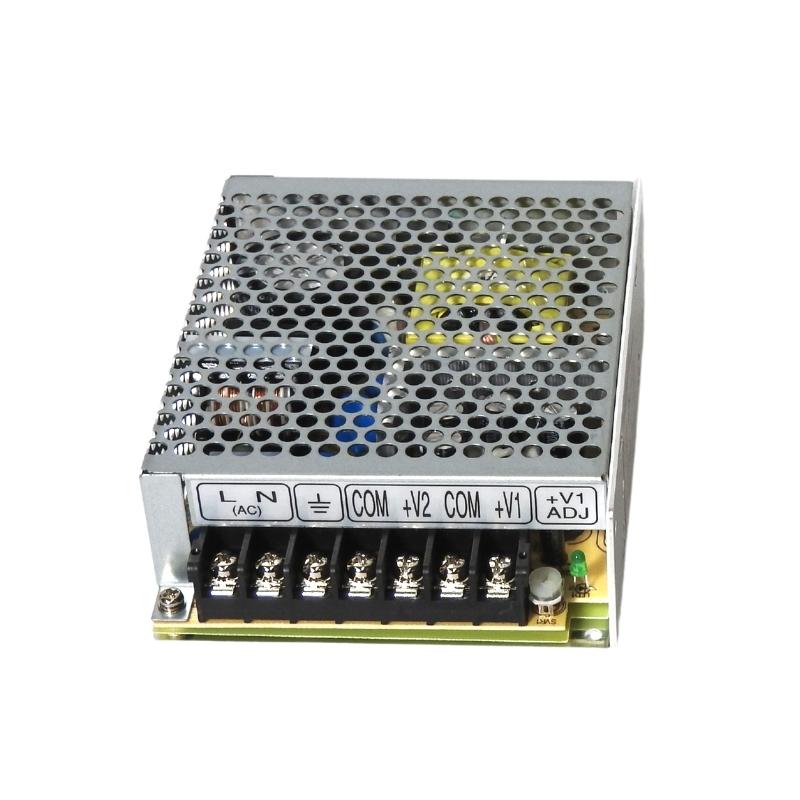

Included in the bundle:

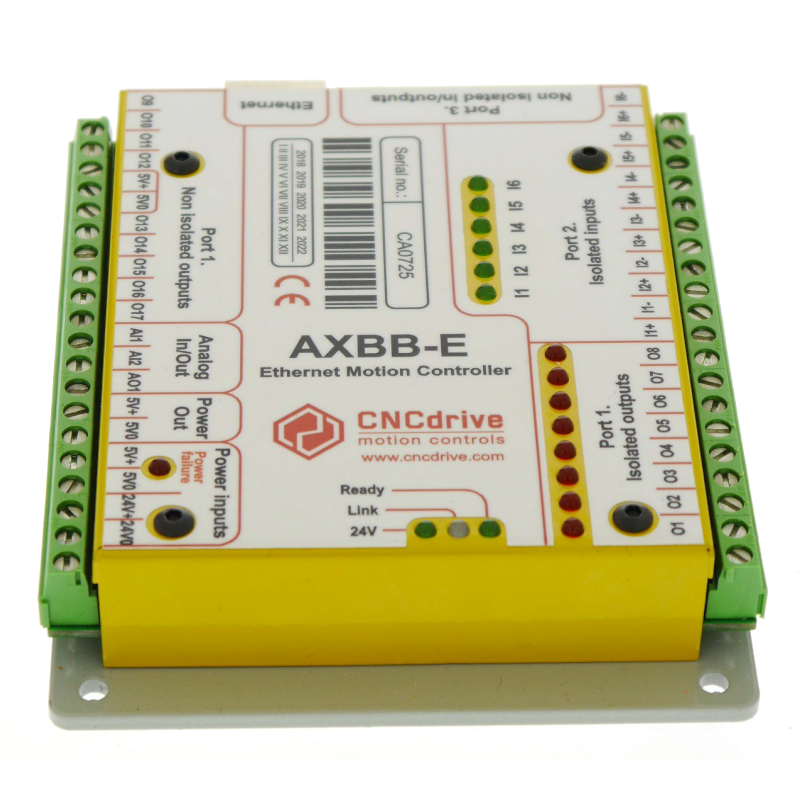

About the AXBB-E Ethernet Motion Controller And Breakout Board Combined
The AXBB-E is a CNC controller that is very popular in the CNC industry due to its reliability and feature-rich interface. Its flexibility allows it to be popular amongst hobbyists and professionals alike. The controller can control up to 6 stepper motors or Integrated Servo Motors with an impressive stepping rate of 400kHZ and communicates via an ethernet interface, making the controller largely immune to Electromagnetic Interference (EMI).
About Closed-loop Control Systems
Closed-loop stepper motors, unlike their standard contemporaries, can recover missed steps, are able to accelerate quicker, run faster, maintain torque at higher speeds and run quieter. This is due to the low inductance of the motors and advanced DSP control system when paired with the HSS57 closed-loop stepper motor driver in this bundle.
Built into the closed-loop stepper motor is an encoder that provides position feedback to the stepper motor driver which in turn provides error correction. This error correction is achieved by the driver comparing the commands given from an external source like a micro-controller to the rotation achieved by the motor and any loss of steps is compensated for.
Closed-loop Stepper Motor Specifications:
- Voltage: 2.1VDC
- Rated Current: 4.2A
- Motor Inductance: 1.8mH
- Holding Torque: 2.0Nm
- Encoder cable length: 5000m
- Motor cable length: 500mm
- Weight: 1.2kg

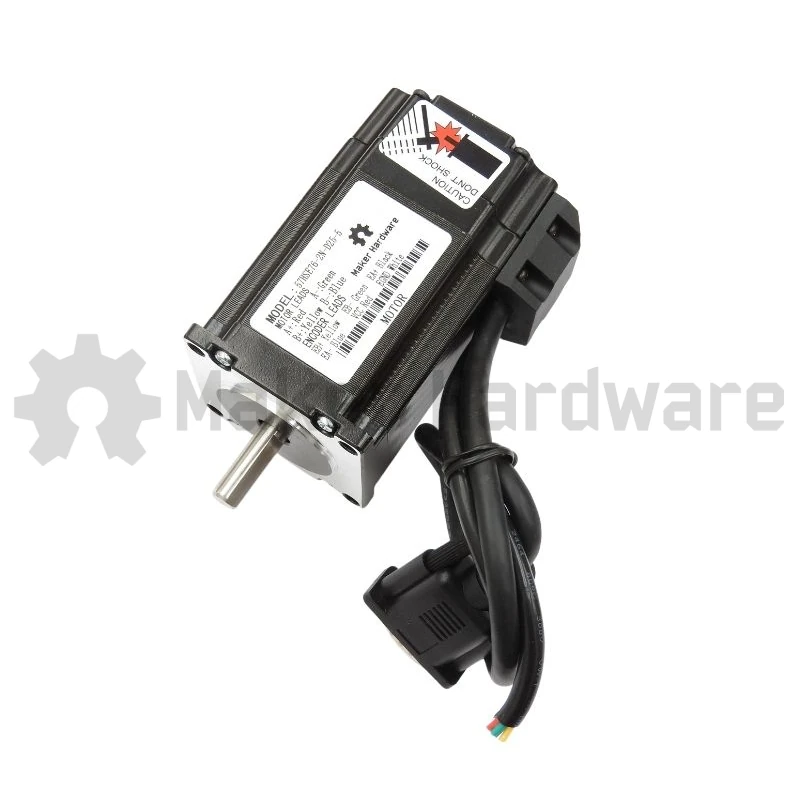

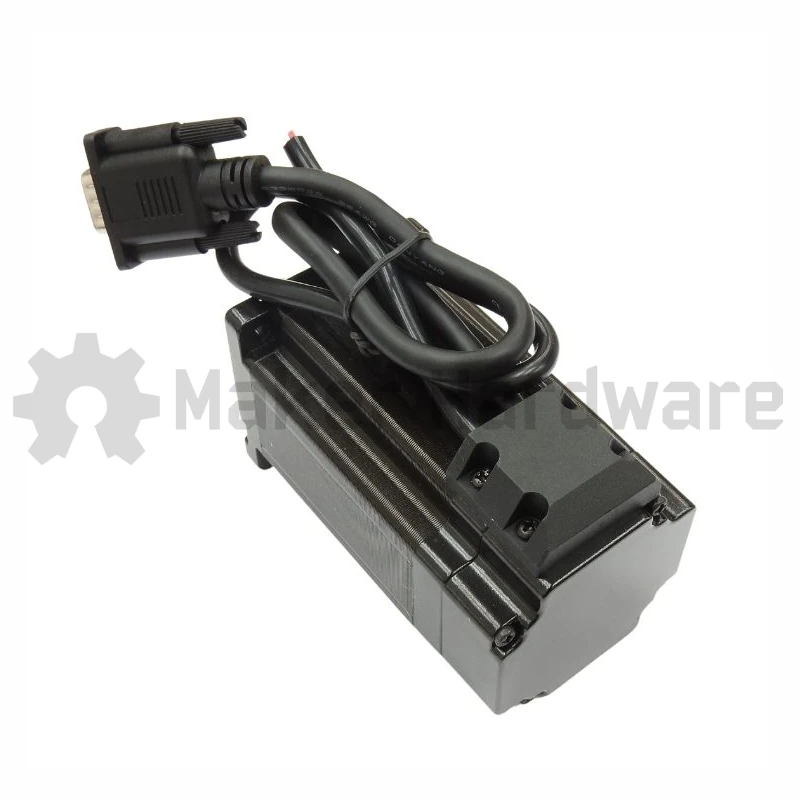

Features of the Closed-loop Stepper Motor:
- High-performance and low inductance Closed-Loop Hybrid Stepper Motor.
- Comes with a handy 5m long encoder cable for ease of wiring.
- Low vibration and high efficiency.
- Built-in quadrature encoder. (1000 line encoder)
- High precision ensures precise carving in CNC applications

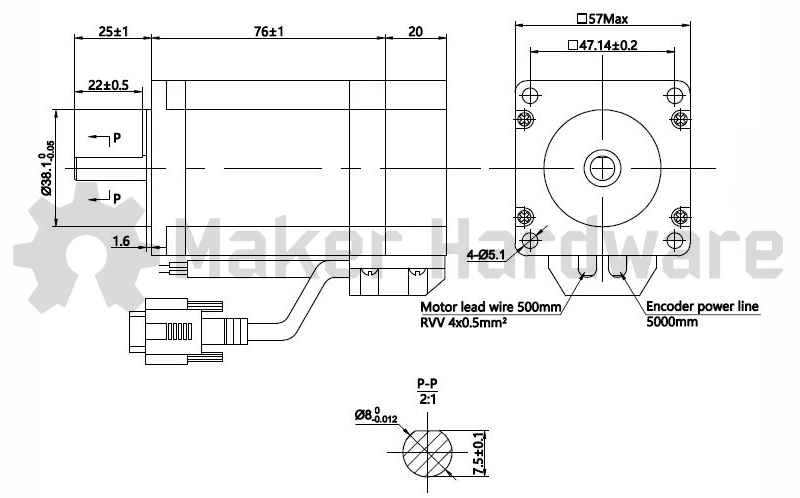

Motor Engineering Drawings:

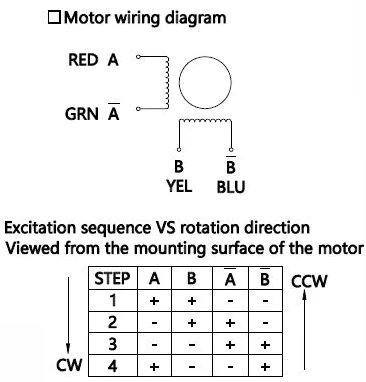

Motor Coil Wiring Diagram
Encoder Lead Pinout
| Closed Loop Stepper Motor Driver Terminal | Lead Colour |
| EGND | WHITE |
| VCC | RED |
| EA- | BLUE |
| EA+ | BLACK |
| EB- | GREEN |
| EB+ | YELLOW |

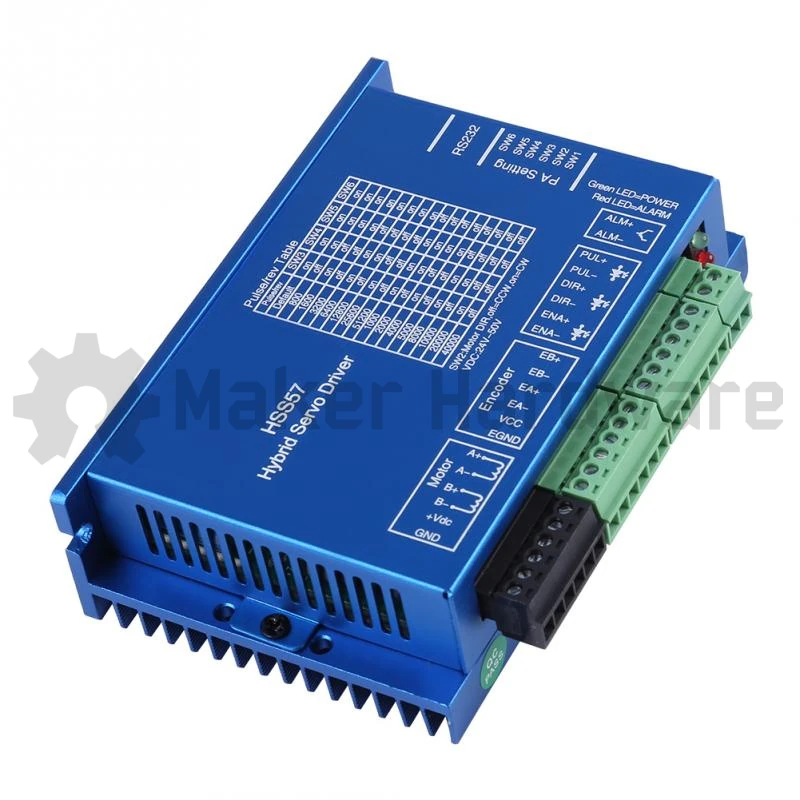

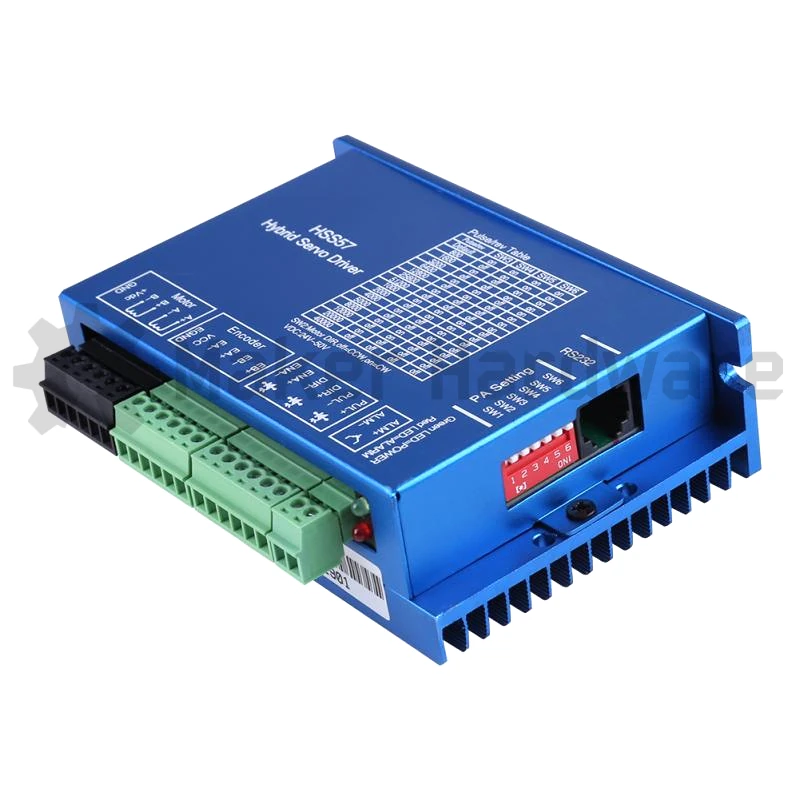

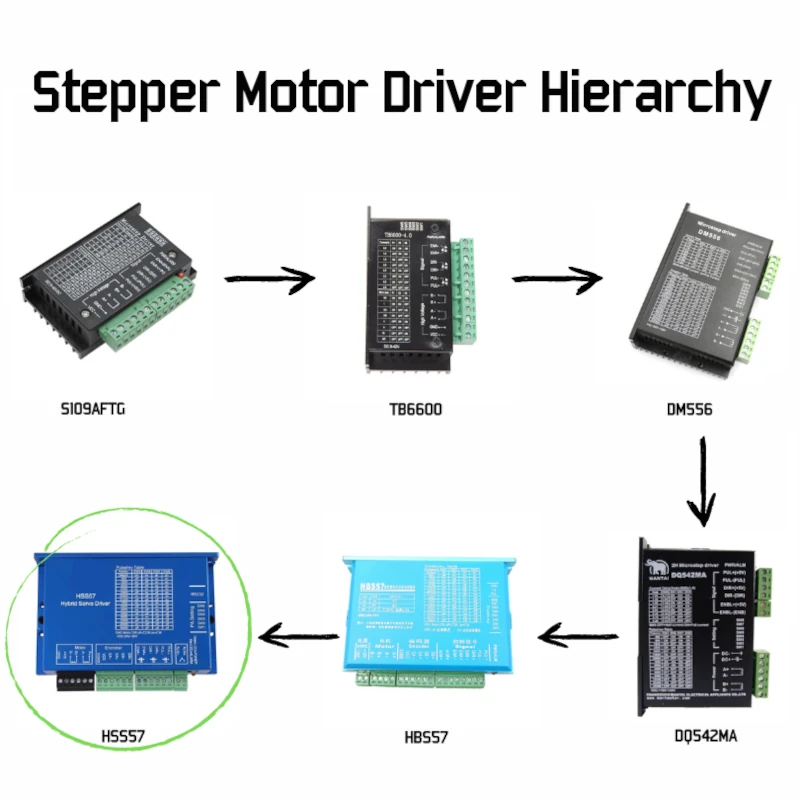

HSS57 Closed-loop Stepper Motor Driver Features:
- Anti-Resonance features provide smooth operation through the RPM range
- Low noise and low vibration
- 32bit processor and advanced DSP control
- Closed-loop Vector control technology
- Multi-Stepping allows a low-resolution step input to produce a higher microstep output for smooth system performance.
- Microstep resolutions programmable via dip switch array, from full-step to 1/128 microstepping.
- Optically isolated inputs reduce noise.
- Alarm outputs for fault diagnosis. (Error codes available in the manual)
- Suitable for Nema23 and Nema24 sized closed-loop stepper motors.
- Support Pulse/Direction, CW/CCW or RS232 control modes. (Step/Dir control recommended)
- Overvoltage and overcurrent protection.
- Durable all-metal body.
HSS57 Closed-loop Stepper Motor Driver Specifications:
- Supply voltage: 24 to 50 VDC
- Output current: Up to 6.0A Peak (Load Dependent)
- Logic signal current: 7 to 20mA
- Pulse input frequency: 200 kHz
- Encoder Resolution (PPR): 1000
- Isolation resistance: 500 MΩ
- Operating temperature: 0 to 50 °C
- Operating Humidity: 40 to 90%RH
- Vibration: 5.9 m/s² Max
- Weight: Approx. 300 g
- Dimension: 118 x 75x 34 mm
HSS57 Stepper Motor Driver Engineering Drawings
Use this controller bundle to drive:
- Nema23 compatible CNC machines
- Laser Cutters
- Plasma Cutters
- Robotic Actuators
- Automated Linear Actuators
Tips and Tricks
- For existing CNC builds, use these motors with 8x8mm jaw couplings for a drop-in replacement.
Please note
- Depending on your application, you may need to extend your motor power cable.
- The mains power cord is not included, a licenced electrician or similarly qualified individual is required to wire the mains connections.
