Name: End Cap - 2040 - Type A
SKU: BRAC-ENDCAP-2040
Price: 2.84 AUD
Availability: InStock

End Cap – 2040 – Type A

$2.84 Inc. GST

This black anodised brushed aluminium end cap functions as a protective finishing plate to conceal raw cut ends and prevent debris ingress within 2040 V-Slot aluminium extrusion profiles. It features a dual-sided interface with an integrated recess to house low-profile fastening hardware flush, ensuring bolt heads do not obstruct adjacent mechanical tracks or outer assemblies. Typical applications include serving as clean enclosure points on modular industrial machinery, custom workstations, automated test jigs, and desktop 3D printer structures. The component seals internal profile channels against contamination while maintaining visual consistency across automated equipment frames.

Compatible With

In stock

Description

Technical Overview

The 2040 Type A end cap functions as a protective finishing component for 2040 V-Slot aluminum extrusion profiles. Specifically, you mount this component directly onto the exposed raw ends of an extrusion rail. Consequently, the cap conceals sharp edges and prevents debris from entering the internal channel profile. Ultimately, this simple installation completes the raw structure.

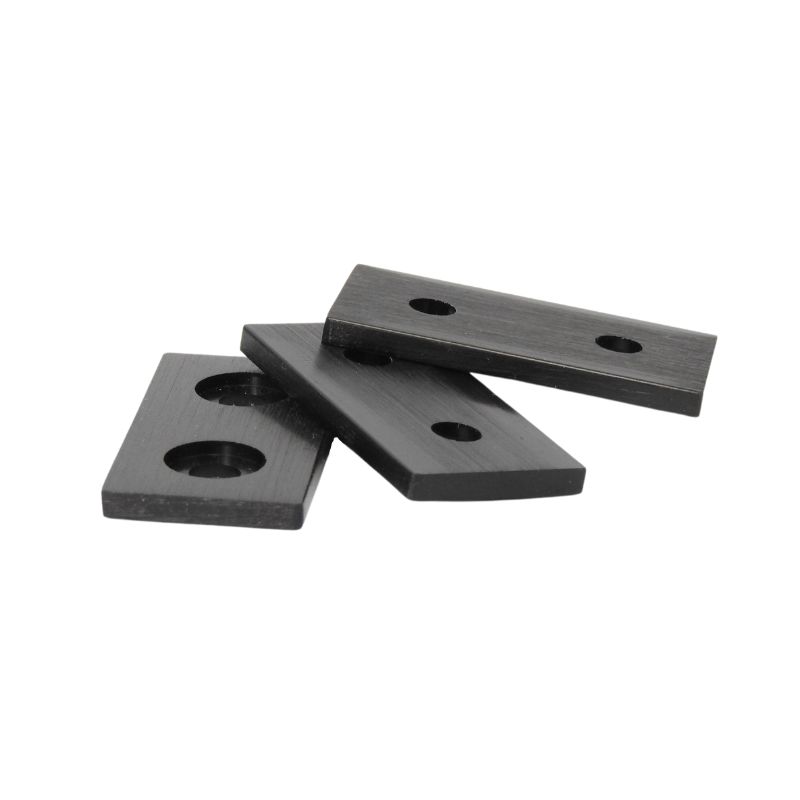

Furthermore, this plate features a dual-sided structural interface. On one face, the plate provides an integrated recess for low-profile fastening hardware. In contrast, the opposite face maintains a completely flat aesthetic profile. Because of this configuration, builders can easily secure the hardware flush within the cap. As a result, the bolt heads do not obstruct adjacent mechanical tracks or outer system assemblies.

Applications

Generally, builders install 2040 linear extrusion end caps across many different projects. For example, these include modular industrial machinery, custom workstations, automated test jigs, and desktop 3D printer structures. On these frames, the caps serve as clean enclosure points. Therefore, they block foreign objects and contamination from collecting inside the inner extrusion channels.

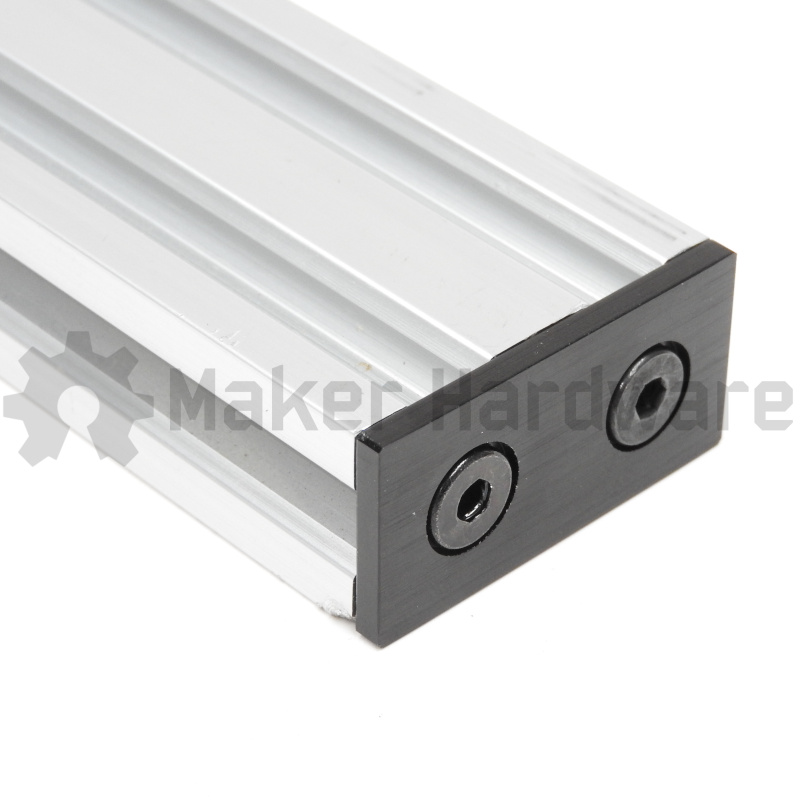

During installation, you align the cap directly with the end profile of a 2040 rail segment. Next, you pass fasteners through the predefined mounting holes. This action lets the bolt heads sit nested deeply into the recessed face. Furthermore, the black anodized brushed surface treatment perfectly matches standard framing elements. Thus, the component ensures visual and functional consistency across light-to-medium automated equipment frames

Maker Store Tips and Tricks

Orient the cap so the recessed side faces inward if you intend to conceal your mounting bolt heads completely flush within the hardware.
Verify that your fastener thread engagement depth perfectly accounts for the thickness of this aluminum plate to achieve a rigid mount.
Tighten the mounting screws evenly to ensure uniform clamping pressure and avoid angling the plate relative to the rail face.
