Description
Technical Overview

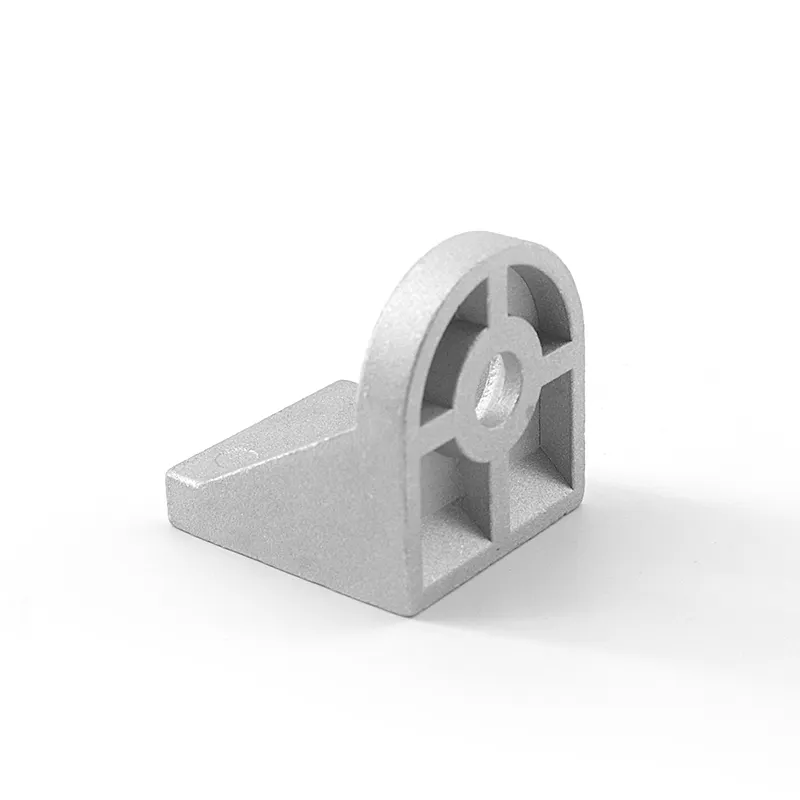

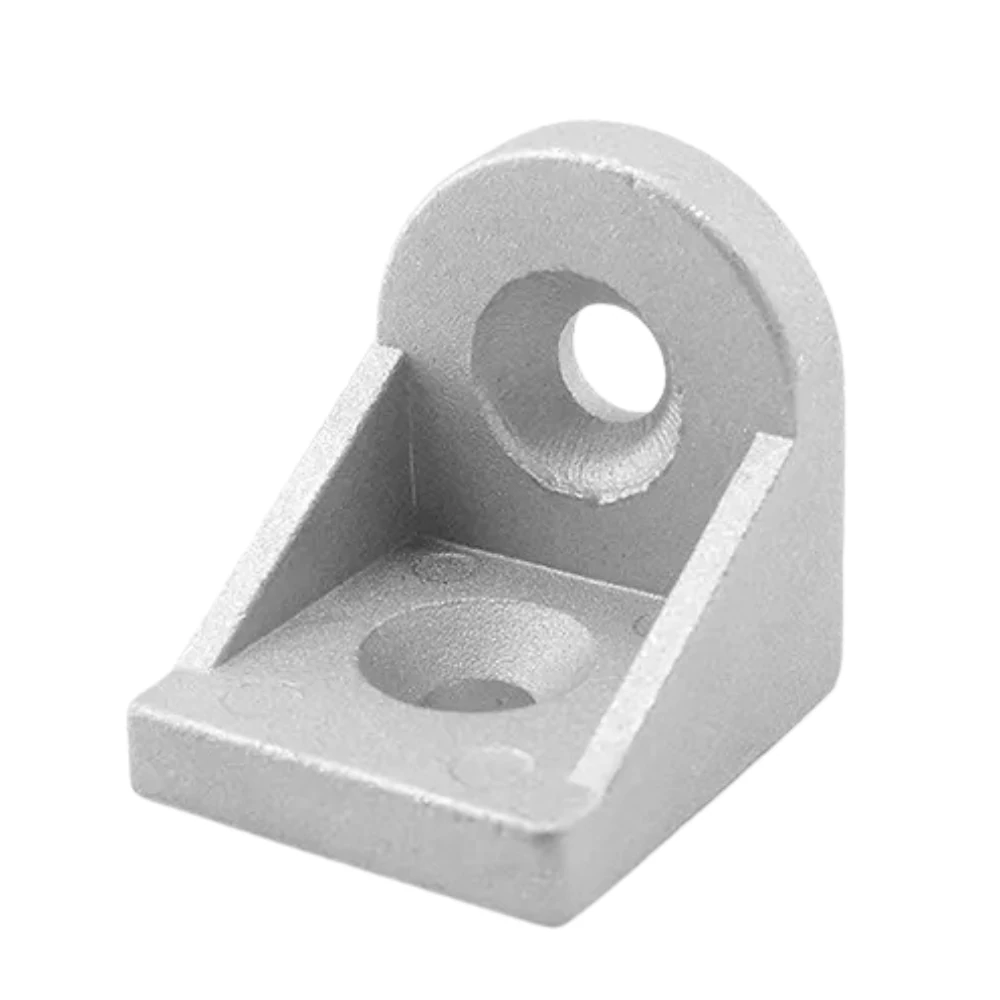

The 90° 2-Hole Corner Bracket establishes a rigid perpendicular connection within modular structural framing configurations. Specifically, you mount this die-cast aluminium connecting component directly into 40 Series T-Slot profiles. By doing this, you successfully secure joint intersections at a fixed right angle. Additionally, the engineered geometry incorporates two pre-drilled Ø8.5mm mounting holes. These open channels receive structural fasteners smoothly during the assembly process. Consequently, this precise configuration effectively distributes mechanical clamping forces uniformly across the profile channels. Furthermore, the manufacturing process applies a natural finish to the component surface. As a result, this treatment prevents material degradation from ambient atmospheric exposure completely. Meanwhile, the choice preserves baseline system durability over long operational periods. Therefore, technical users deploy this bracket to achieve absolute geometric accuracy across framing joints without executing any localized profile machining.
Applications
Engineers incorporate this 2-hole corner bracket into industrial machine enclosures, protective safety guards, and industrial workbenches. Crucially, these complex setups must utilize a standard 40 Series aluminium extrusion footprint. Technicians primarily deploy the hardware to secure structural junctions. Alternatively, they install it to reinforce structural frameworks within custom robotics and automation assemblies. Moreover, the lightweight design renders the bracket highly suitable for building material storage racks. For example, you can build industrial shelving and customized workspace partitions with ease. However, you must note that this component interfaces exclusively with 40 Series T-Slot linear extrusion profiles. For that reason, it remains completely incompatible with smaller modular profile variants like the 20 Series V-Slot systems. Thus, builders pair this item carefully with correct matching rails to ensure structural alignment.

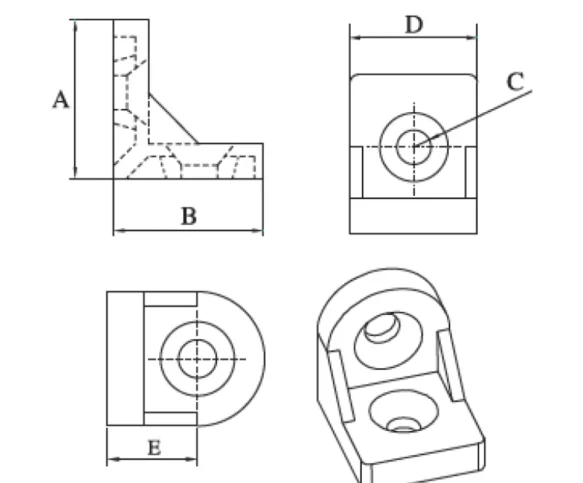

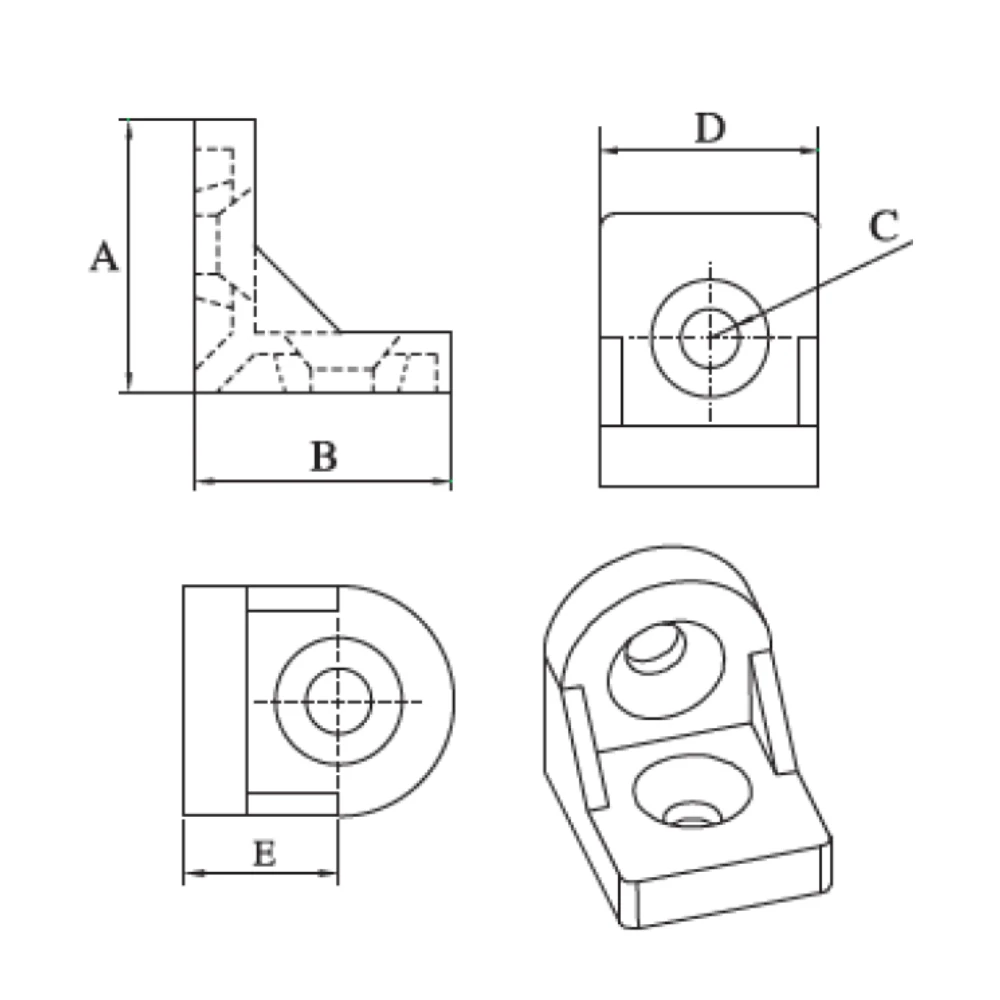

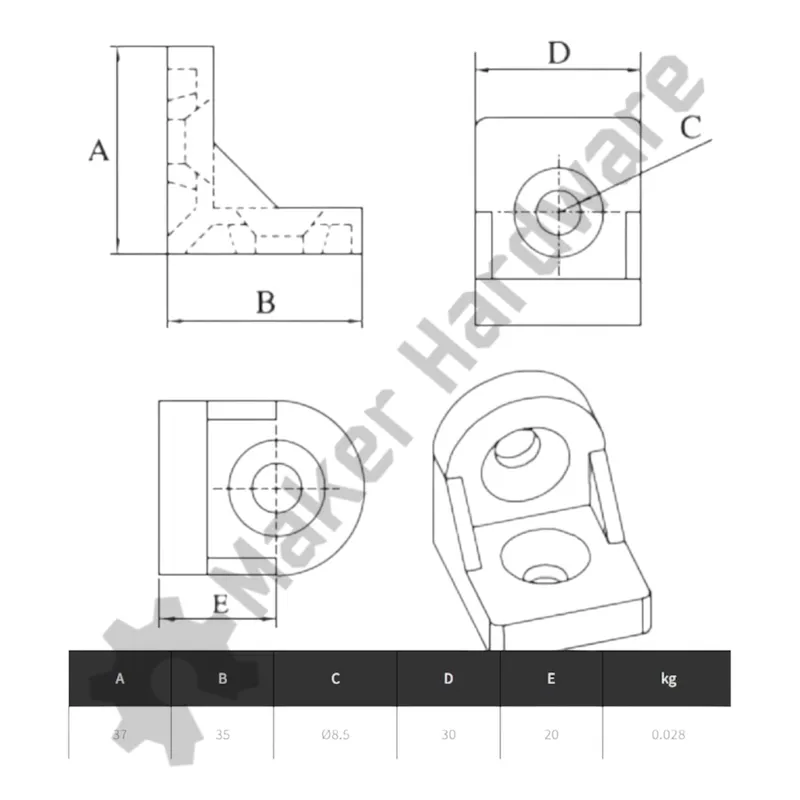

90° 2-Hole Corner Bracket Technical Drawings:
| A | B | C | D | E | kg |
| 37 | 35 | Ø8.5 | 30 | 20 | 0.028 |
Maker Store Tips and Tricks
-
Align the corner bracket squarely at the 90-degree intersection of the 40 Series extrusion before driving the hardware to full engagement.
-

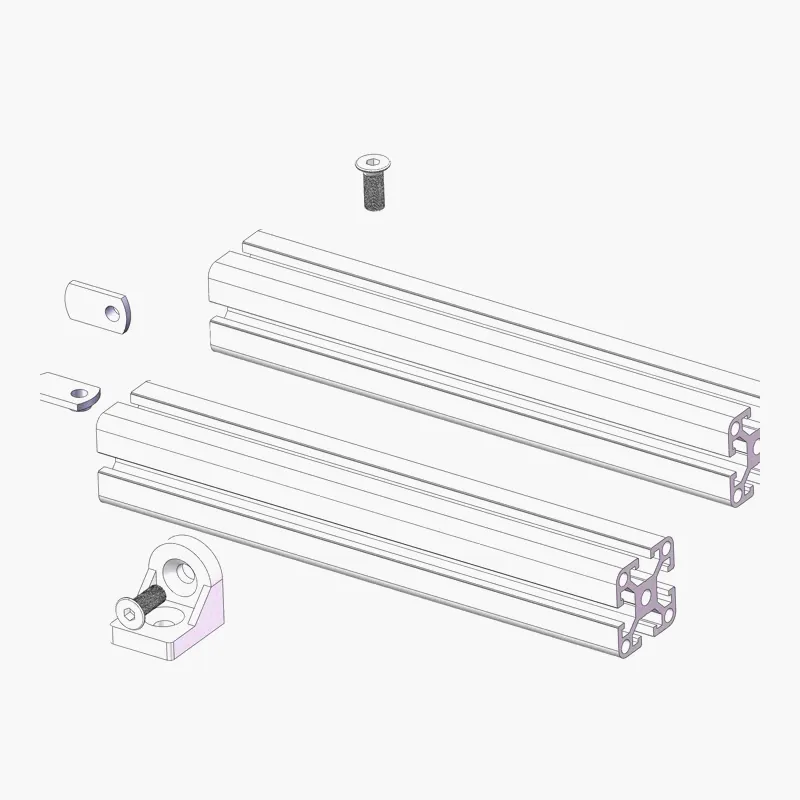

Install an M8 × 20mm Flat Head Socket Cap Screw alongside an Economy T-Nut inside each of the two Ø8.5mm holes to achieve rated joint stability.
-
Periodically verify the tension torque of the assembly fasteners in applications subjected to recurring cyclical machine motion or vibration.
Products to Pair with 90° 2-Hole Corner Bracket- 40 Series
-
40 Series Ball Spring T-Nuts
Price range: $0.87 through $22.28 Inc. GST Select options This product has multiple variants. The options may be chosen on the product page -
40 Series Sliding T-Nuts
Price range: $0.99 through $31.19 Inc. GST Select options This product has multiple variants. The options may be chosen on the product page -
T-Slot 40 x 40mm – 40 Series – HEAVY Duty – Silver
Price range: $27.57 through $92.88 Inc. GST Select options This product has multiple variants. The options may be chosen on the product page -
T-Slot 40 x 80mm – 40 Series – HEAVY Duty – Silver
Price range: $72.74 through $225.21 Inc. GST Select options This product has multiple variants. The options may be chosen on the product page
What makes T-Slots such an easy assembly task?
Building frames out of T-Slot extrusions is easy because they eliminate the need for specialised tools or welding, simplifying the assembly process. Building frames using T-Slot Linear Rail will require;
- 40 Series T-Slot Extrusions: These are the main structural components, usually made of aluminium, with slots along their lengths that allow you to easily connect various parts and accessories.
- 40 Series Brackets and Connectors: These are specialised components designed to fit into the T-Slot extrusions and secure them together at various angles. They include corner brackets, T-nuts, L-shaped brackets, and other connectors.
- Fasteners: Bolts, screws, and nuts are required to attach the brackets and connectors to the T-Slot extrusions securely.
- Tools: Basic hand tools like wrenches, Allen keys (hex keys), and screwdrivers are necessary for assembly. Additionally, a saw may be needed to cut the T-Slot extrusions to your desired lengths.
