Description
Technical Overview

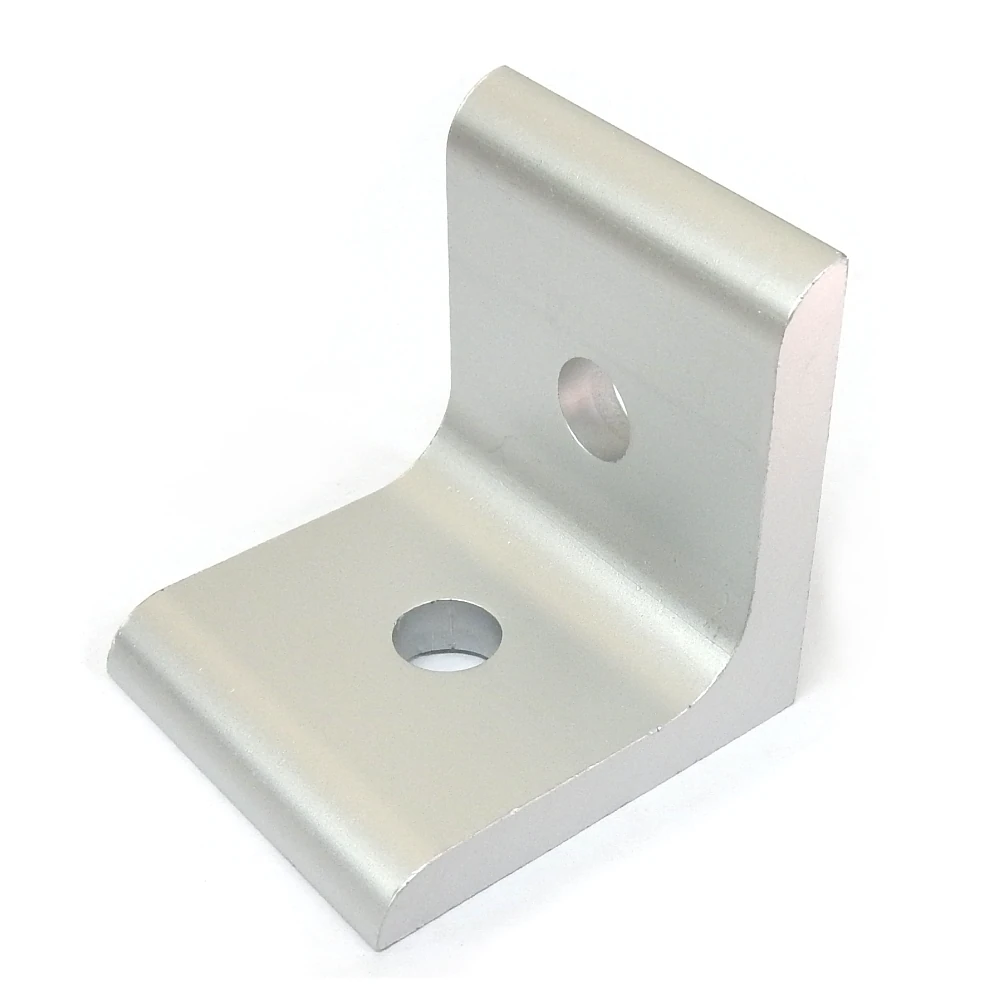

The 2 Hole Corner Bracket – 40 Series functions as a vital structural hardware component. Technicians actively use this specific bracket to build precise perpendicular connections within modular framing systems. First, you place the component into position, and then it creates stable 90-degree internal corner joints between 40 Series T-Slot aluminium extrusions. To install the unit, you simply mount the hardware directly onto the open extrusion channels by utilizing standard fastening hardware. Consequently, the bracket provides necessary structural alignment while it simultaneously delivers robust joint reinforcement. Furthermore, this component secures heavy frameworks, protective machine enclosures, and custom mechanical assemblies with ease.
Applications
Industrial builders commonly select this two-hole corner bracket to construct rigid frames, protective machine enclosures, and secure partitions. These assembly teams typically deploy the hardware alongside standard 40 Series structural framing profiles. Additionally, the bracket works highly effectively when you join aluminium extrusions for custom product displays and light-to-medium structural frameworks. Because of this adaptability, the unit suits modular projects that demand precise internal 90-degree perpendicular angles. Finally, the compact profile delivers a clean, unobtrusive finish across your entire structural system.

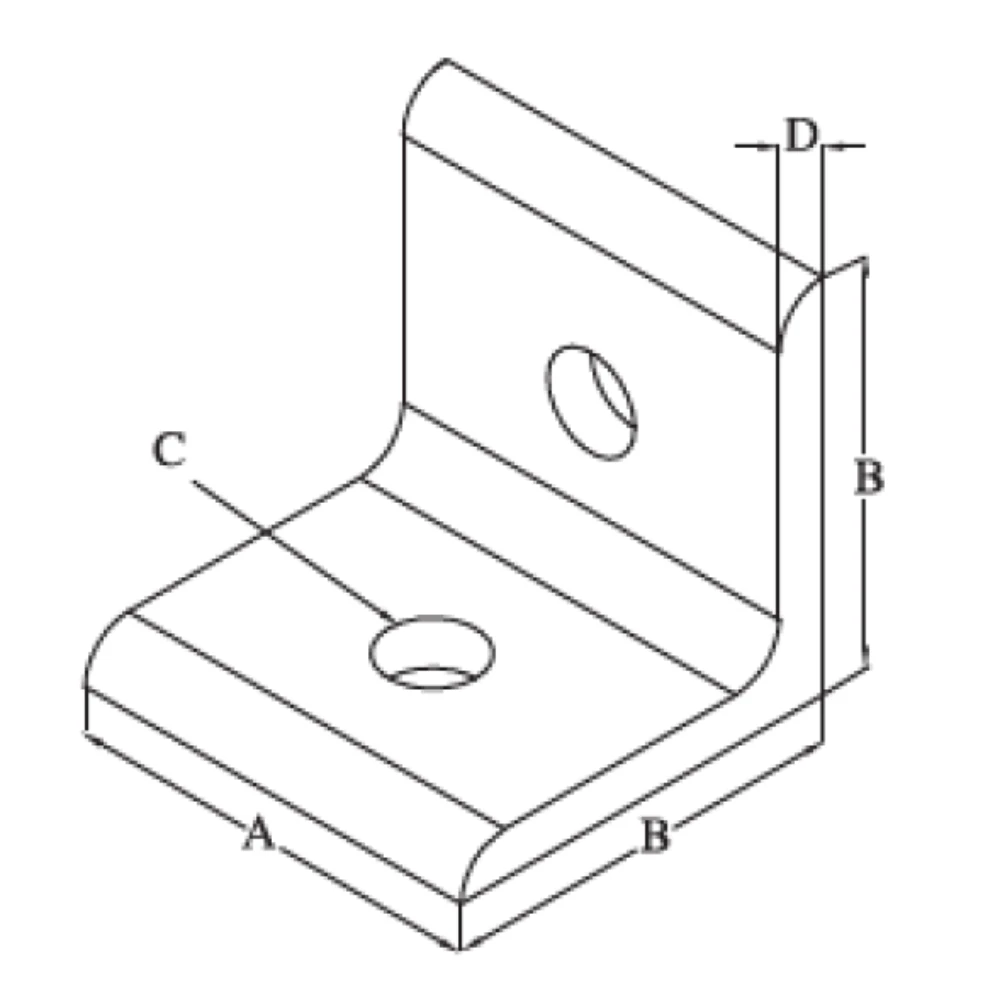

2 Hole Corner Bracket – 40 Series Drawing:
| A | B | C | D | Weight |
| 36 | 40 | Φ8.3 | 6 | 0.048 |
Maker Store Tips and Tricks
-
Verify that the bracket sits flush against both internal faces of the extrusion profile before applying final torque to the fasteners.
-
Use standard M8 hardware or compatible T-nuts and bolts to secure the bracket within the 40 Series profile channels.
-
Periodically check fastener tightness in structures exposed to continuous movement or operational vibrations.
Products to Pair with 2 Hole Corner Bracket – 40 Series
-
40 Series Sliding T-Nuts
Price range: $0.99 through $31.19 Inc. GST Select options This product has multiple variants. The options may be chosen on the product page -
Load Washer – 16x8x1mm
$0.45 Inc. GST Read more -
M8 Cap Head Bolts
Price range: $3.61 through $11.55 Inc. GST Select options This product has multiple variants. The options may be chosen on the product page -
T-Slot 40 x 40mm – 40 Series – HEAVY Duty – Silver
Price range: $27.57 through $92.88 Inc. GST Select options This product has multiple variants. The options may be chosen on the product page
*Recommended Screw Length is 16mm
