Linear Bearing Block – 10mm – SCS10UU

$5.87 Inc. GST

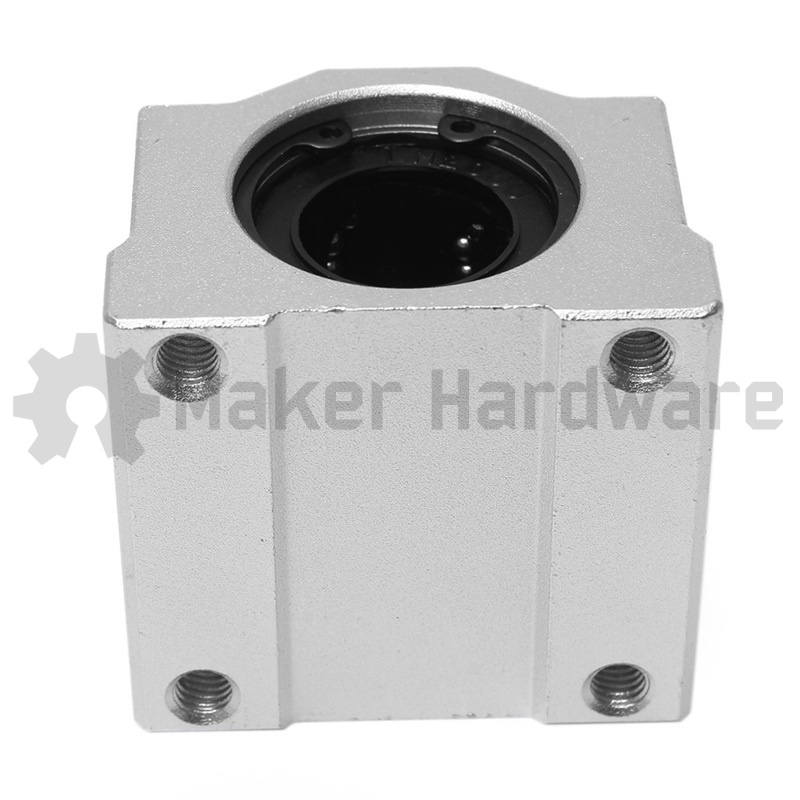

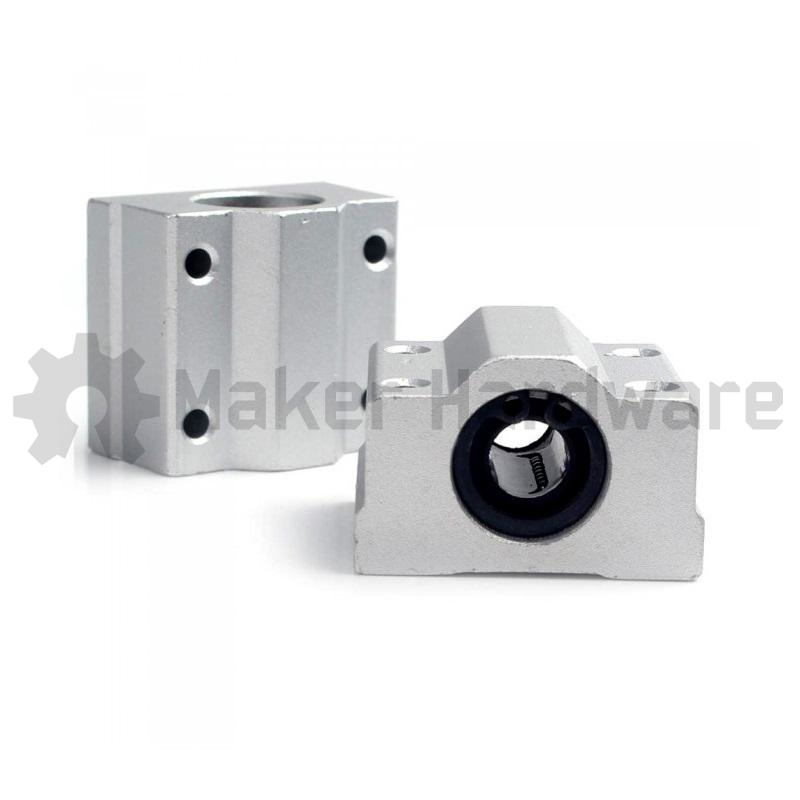

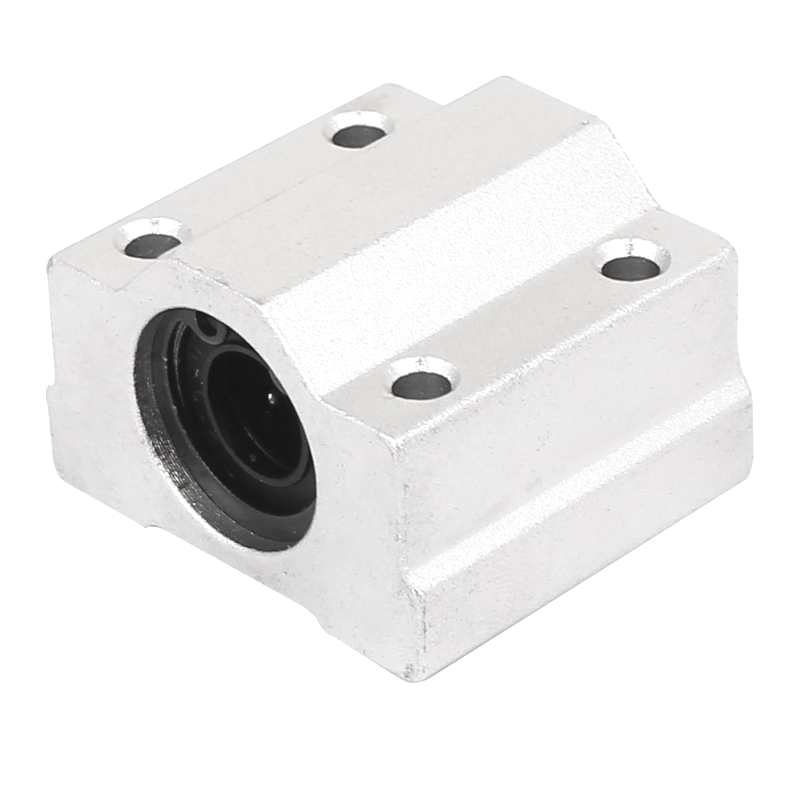

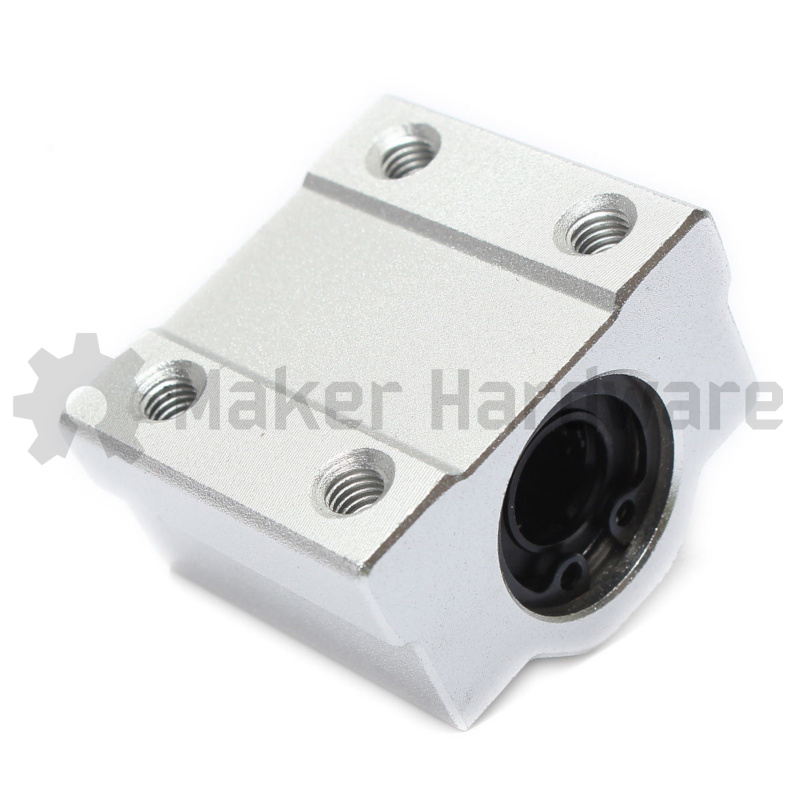

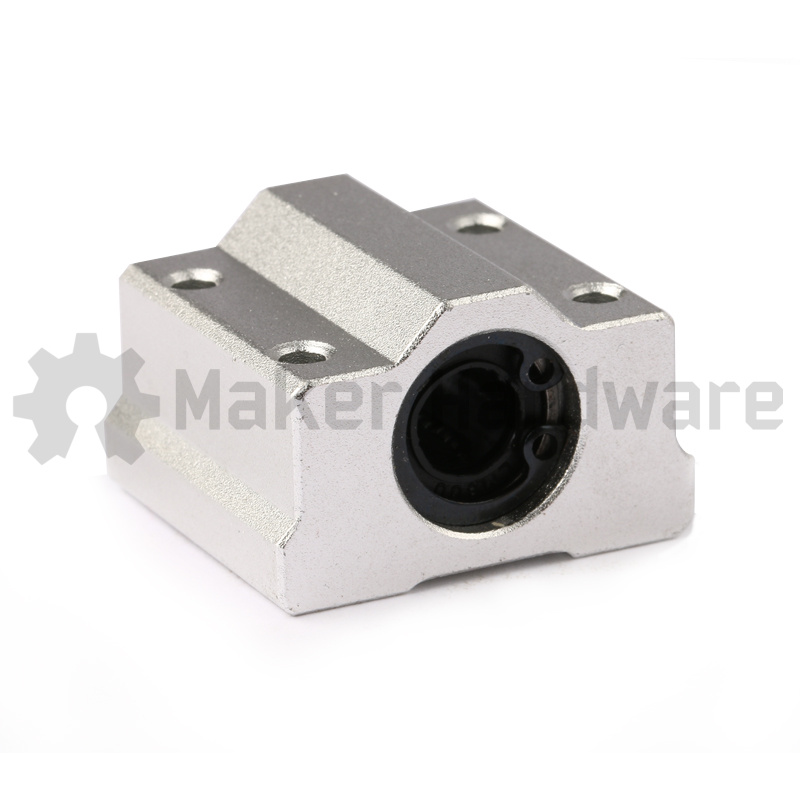

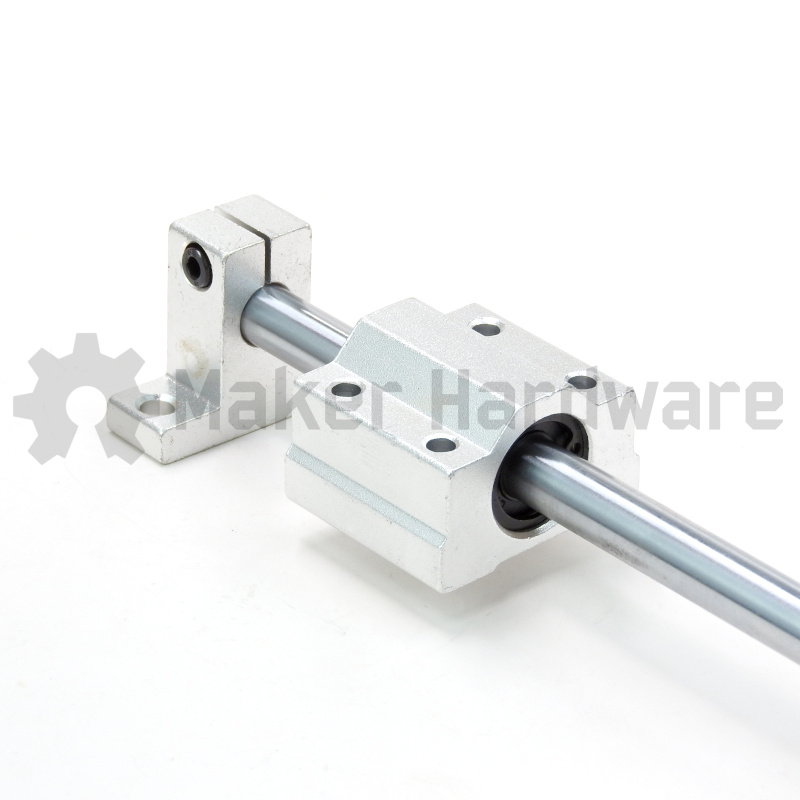

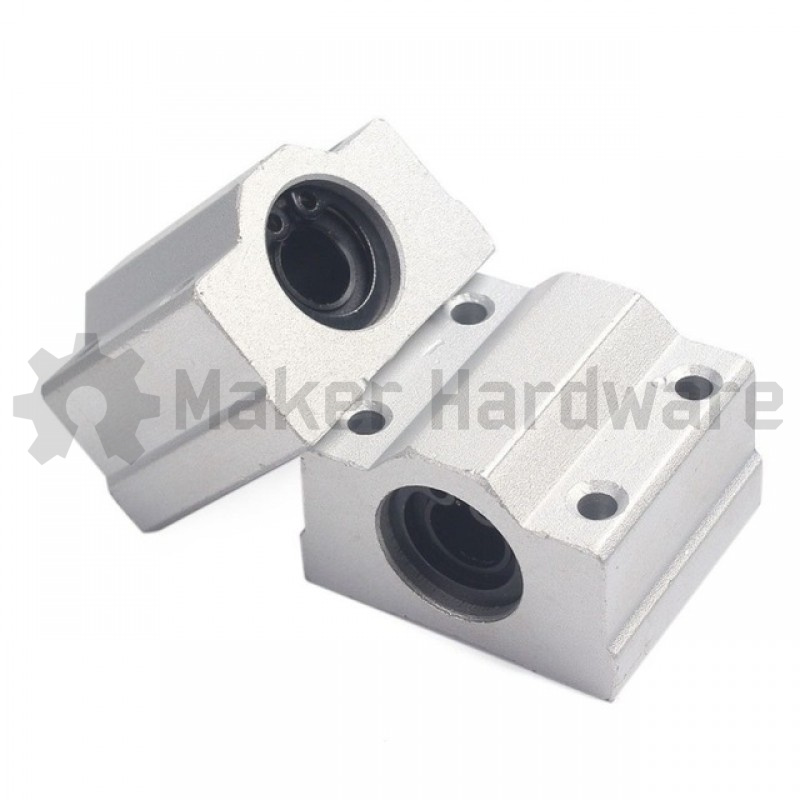

The SCS10UU Linear Bearing Block (Pillow Block) is used to slide along an 10mm smooth rod. These have a 40mm x 35mm platform and four holes tapped for M5 machine screws – so you can attach pretty much anything you want.

In stock

LCN: E-07-T / E-07-V SKU: BEAR-SCS10UU Category: Tags: , , , , ,

Description

The SCS10UU Linear Bearing Block (Pillow Block) is used to slide along an 10mm smooth rod. These have a 40mm x 35mm platform and four holes tapped for M5 machine screws – so you can attach pretty much anything you want.

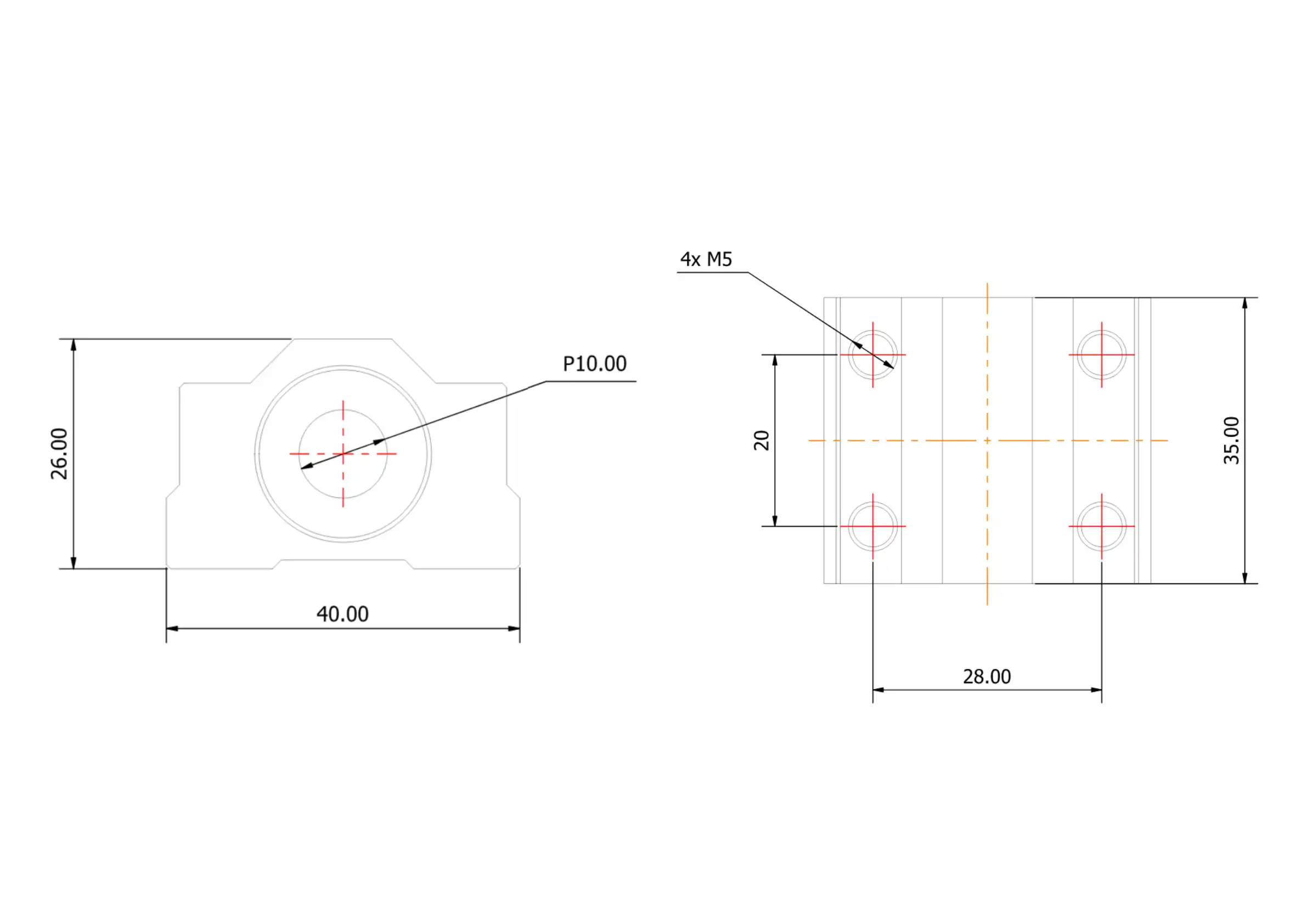

Specifications:

  • Internal 10mm
  • Width 40mm
  • Length 35mm
  • Tapped 4 x M5

Links:

http://reprap.org/wiki/Linear_bearing
