Description

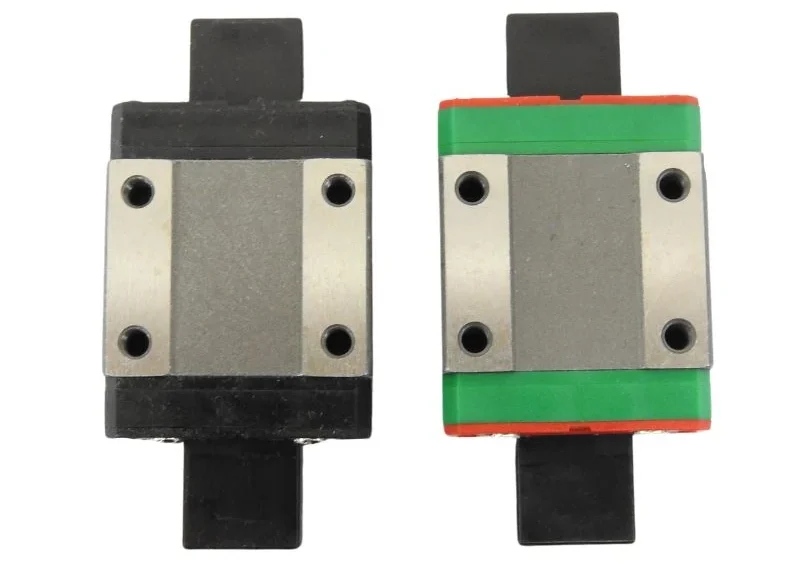

Please Note:These are available in colours Black or Red/Green. If you would like a certain colour please contact us so that we can assist you. |

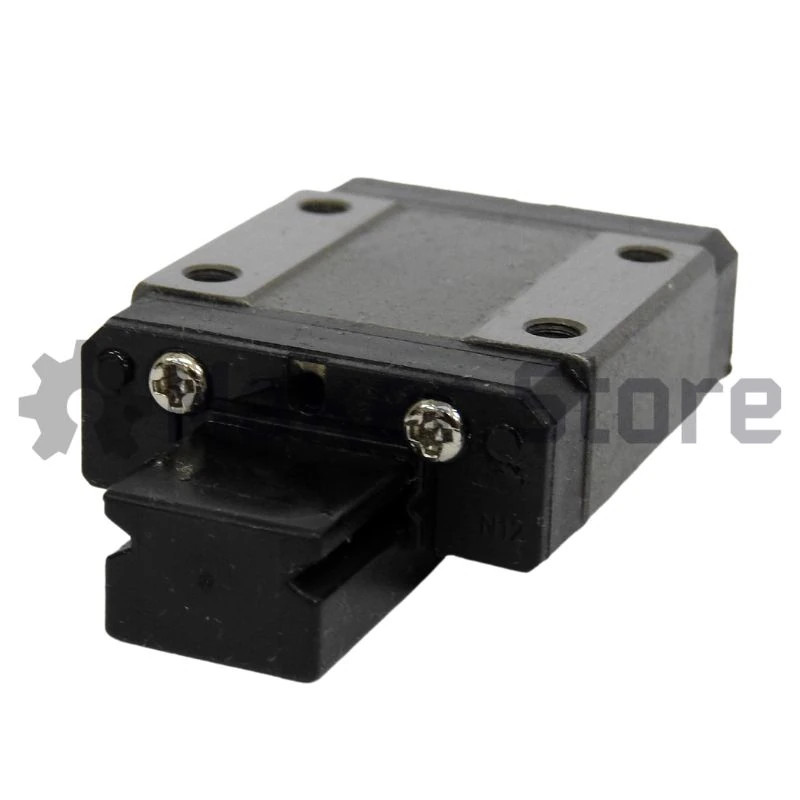

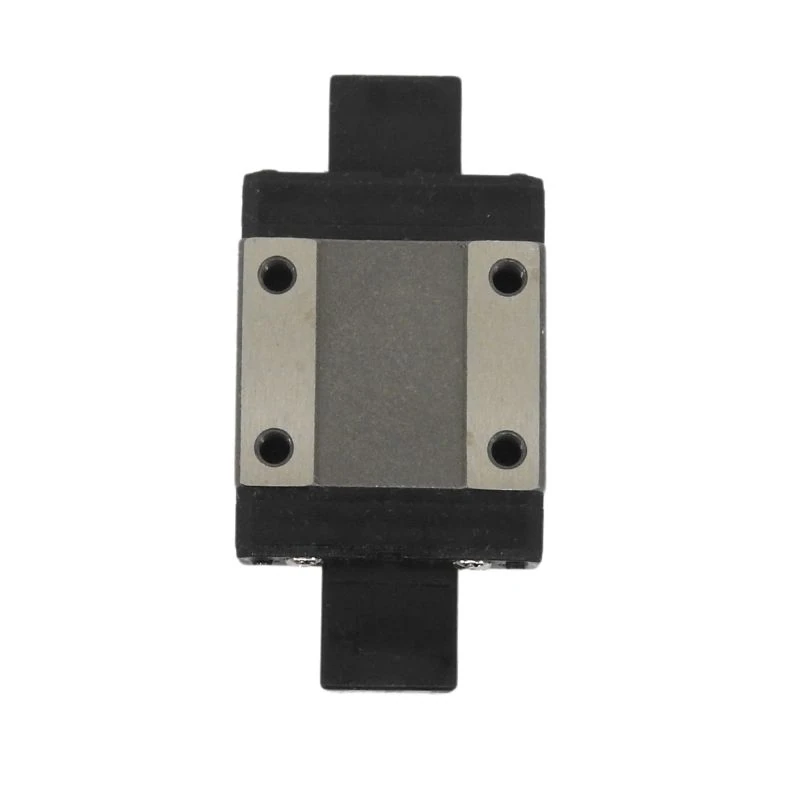

This special edition High Quality Black MGN12C Linear Bearing is a tiny and light weight rail slide block suitable for miniature equipment. Used in 3d Printing, CNC Machining, Robotics, Measuring Equipment and Other Machinery. Along with the MGN12 Rail this block offers high rigidity and precision accuracy.

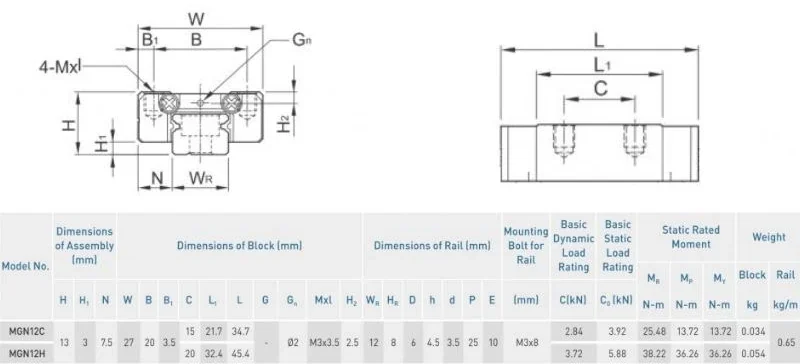

Specifications:
- All metallic components of the Block and Rolling Balls made from chrome steel
- Arch contact design offers high rigidity and precision accuracy

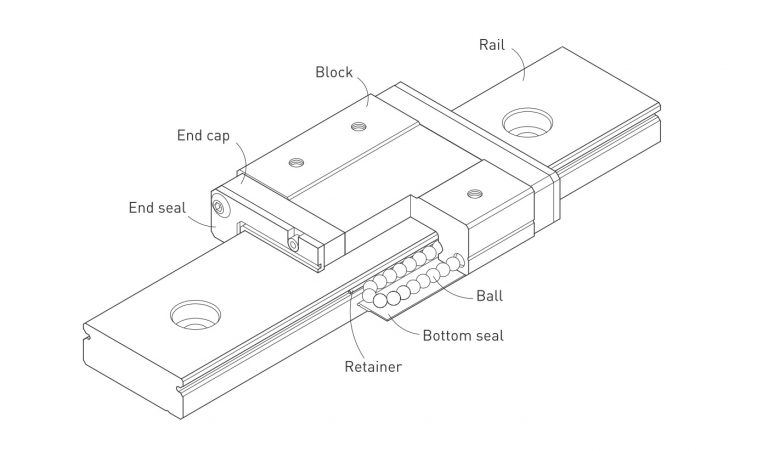

- Steel Balls held captive by a retainer
- Sustains loads from all directions
- Uses a Rolling Circulation System
Additional Information:
- Leave the Block Support Rail that comes with the packaging in the block until installation to avoid the Steel Balls from escaping the retainer. When installing the block onto the rail, use the rail to push the Support Rail out of the block, this ensures the Steel Balls are under tension and have contact with a rail at all times.
- Over Tightening of Rail Mounting Bolts will seriously affect the accuracy and function of the Block.
