Technical Overview

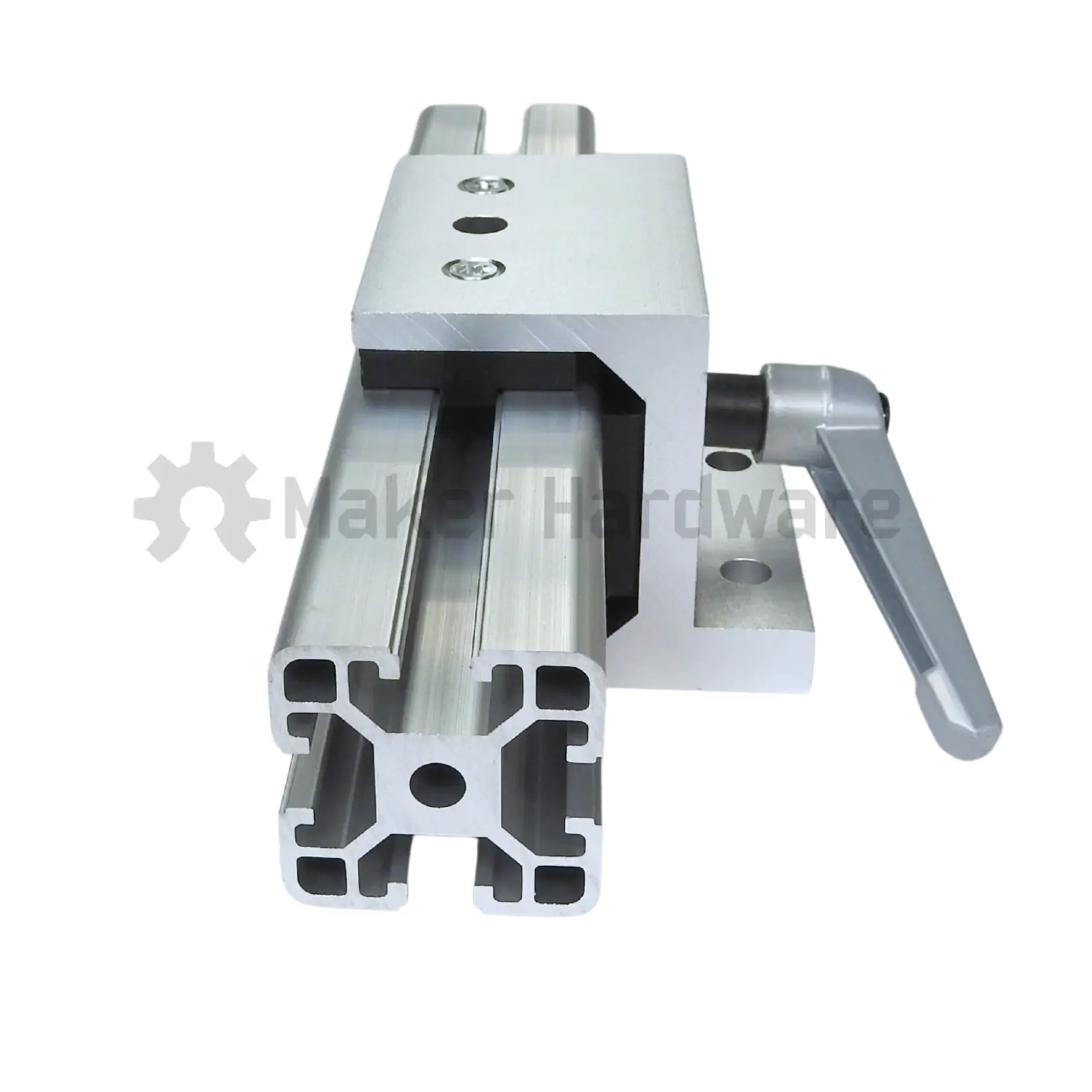

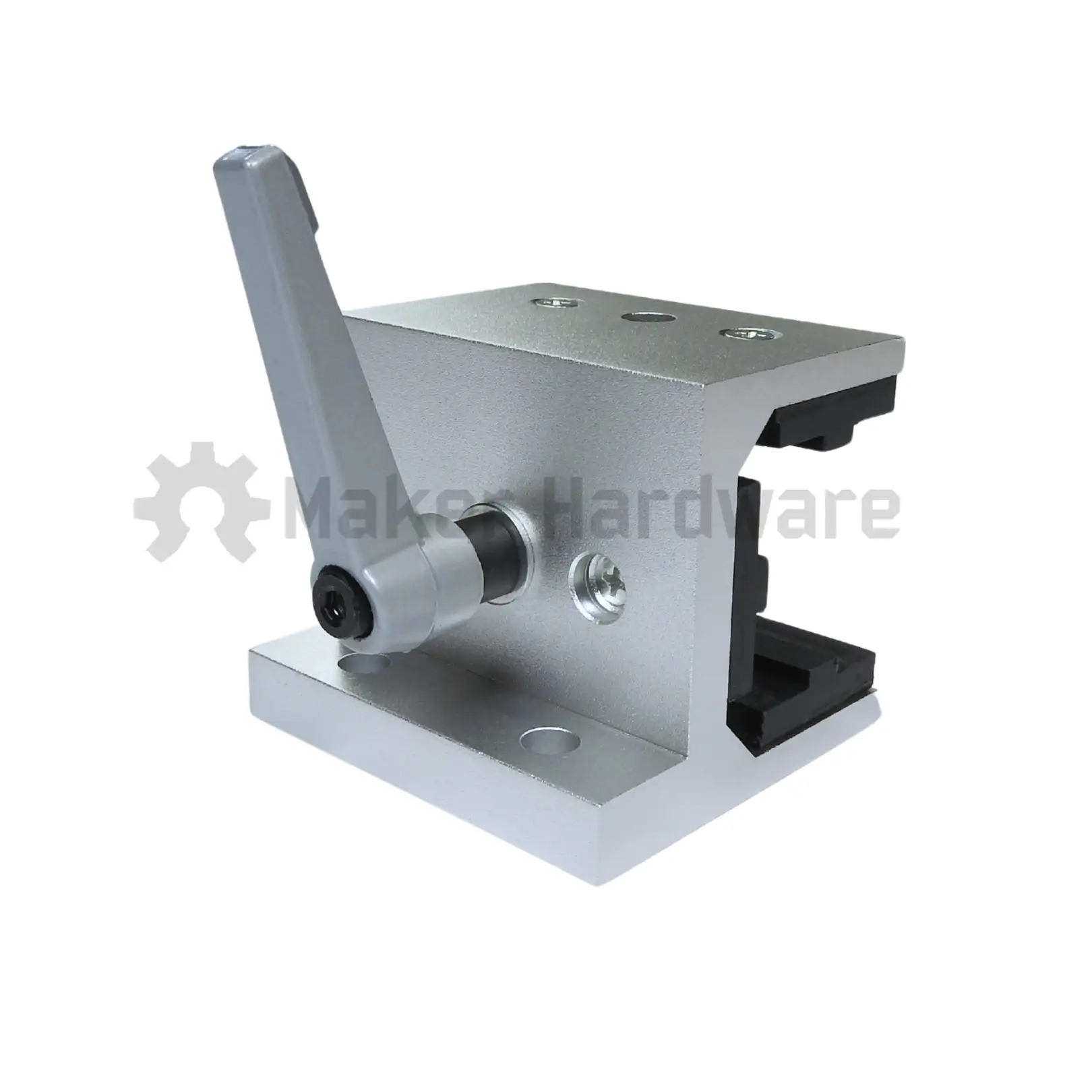

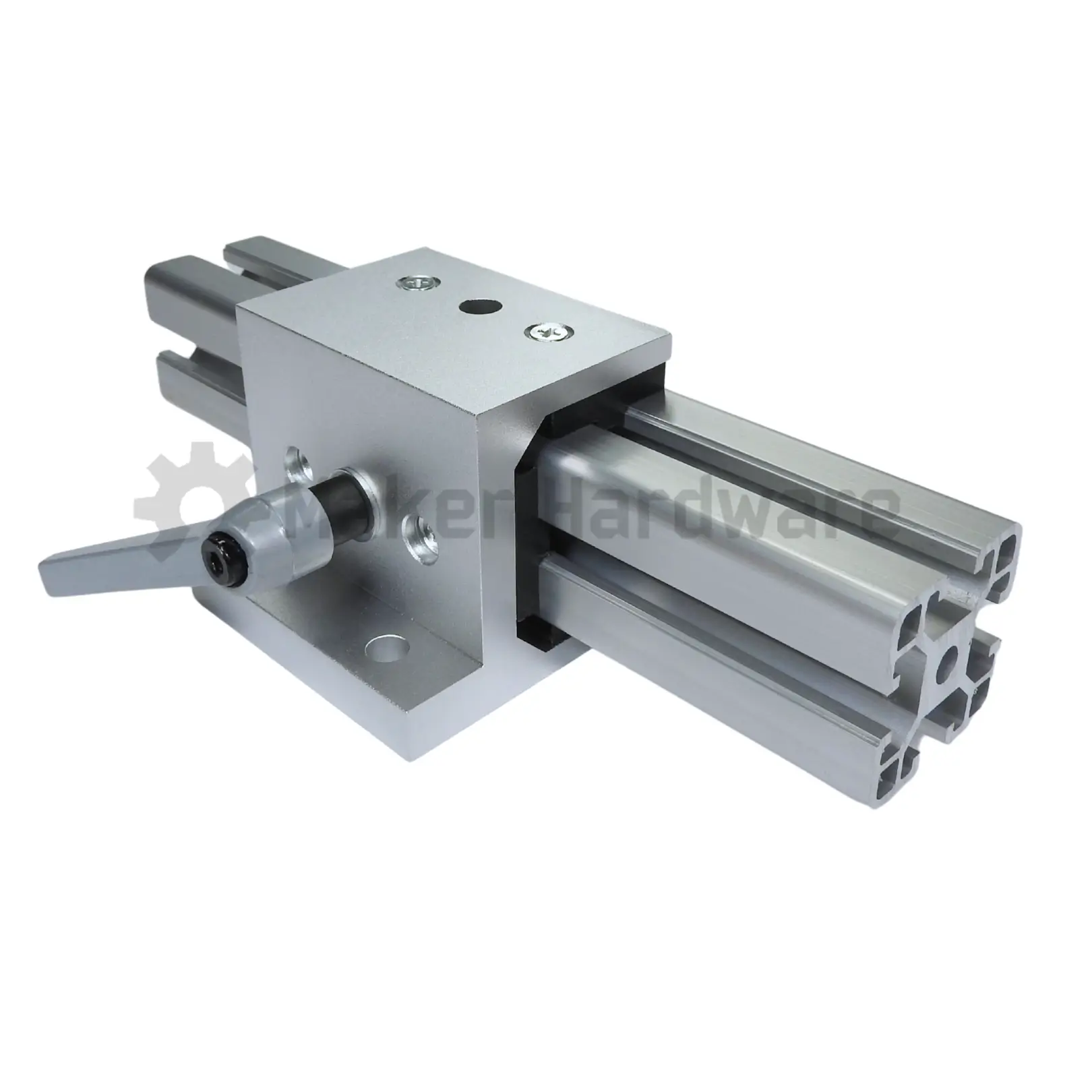

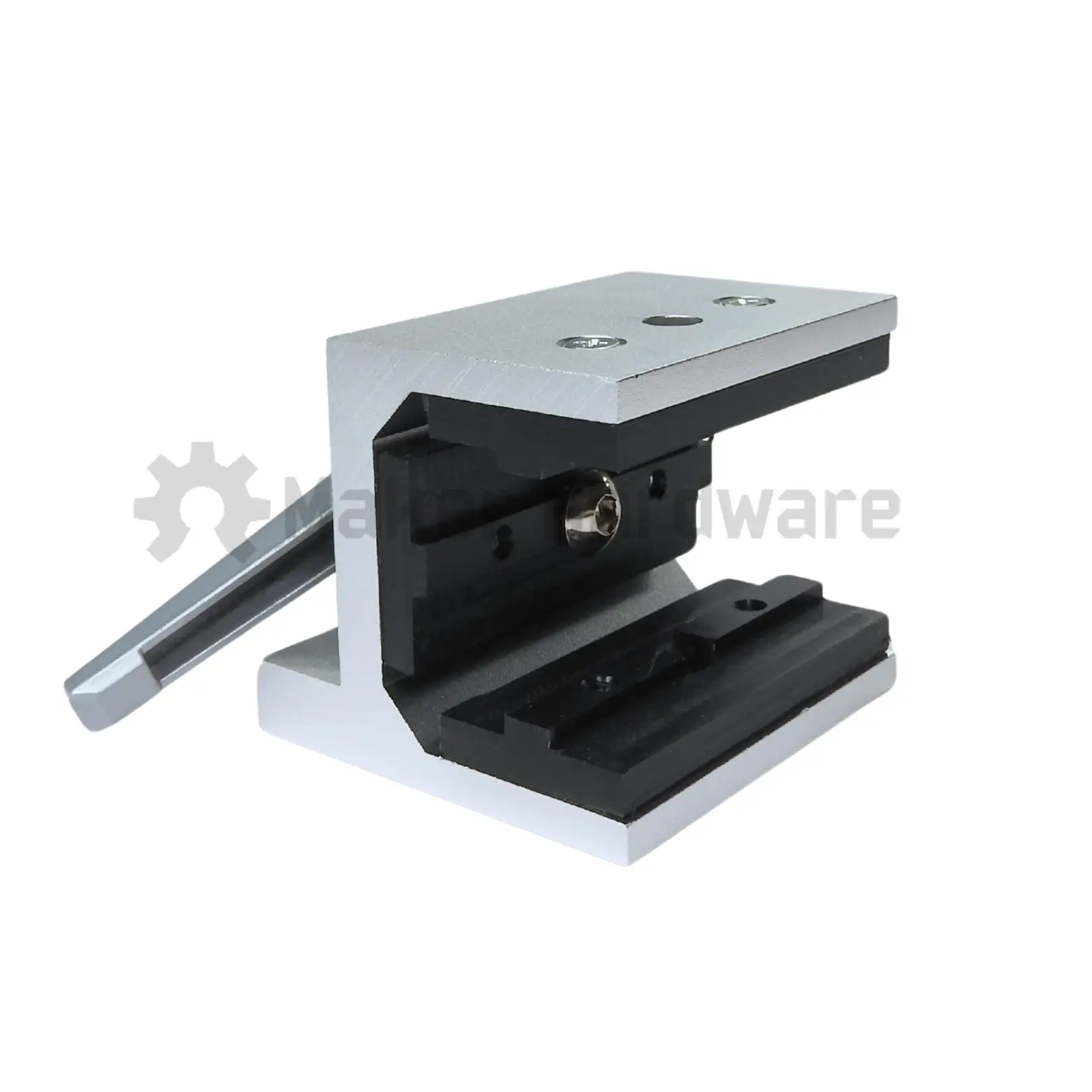

Engineers integrate this 40mm slider block into 40 Series aluminium extrusion framing systems where it functions as a solid-state, self-lubricating linear bearing unit. Because manufacturers build the block from a premium silver-anodised aluminium alloy, the component successfully resists surface corrosion. Consequently, the hardware provides a rigid and durable mounting platform for various sub-assemblies. Furthermore, the block incorporates pre-installed, replaceable black nylon sliders to achieve smooth linear guidance. These elements interface directly with the extrusion T-slots. As a result, this design effectively replaces traditional roller wheels or grease-lubricated bearings. To implement this setup, users position the block along the rail profile. Next, they slide it directly into the T-slot until the nylon inserts fully engage the channel track. This specific mechanism completely eliminates the need for external oils or grease. Therefore, the system prevents dust and debris accumulation in sensitive mechanical layouts. Ultimately, this configuration yields a quiet, low-maintenance guidance assembly that builders firmly secure using the included M8 hardware.

Applications

Technicians deploy this 40mm slider block in automated motion systems and structural framing setups that require controlled linear travel along aluminium tracks. For example, engineers regularly integrate the component into CNC routers, laser cutters, 3D printers, and automated filming rigs. Within these systems, the block guides print heads or build platforms along stable paths. Additionally, the component functions optimally in protective factory architecture. For instance, builders insert it into sliding doors, adjustable machine guards, and industrial enclosures. Because the self-lubricating nylon sliders run silently, they never rattle or induce wear on the aluminium profile. Consequently, they also fit cleanly into industrial workstations and modular assembly lines. Finally, technicians install them in custom furniture applications that require adjustable shelving or sliding racks.

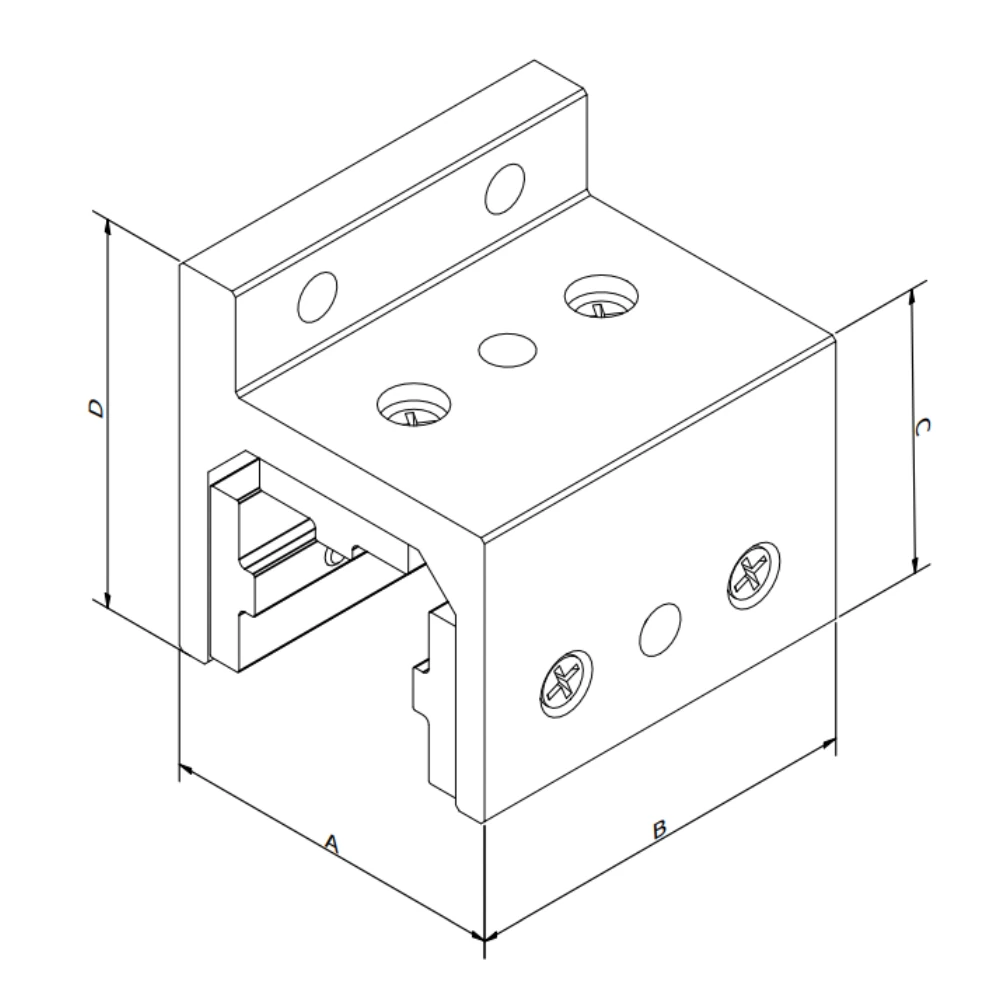

40mm Slider Block 40 Series Technical Drawings:

Maker Store Tips and Tricks

• Ensure you align the black nylon sliders perfectly parallel with the extrusion channel before applying sliding force to avoid binding or premature wear.

• Do not apply wet lubricants, oil, or grease to the aluminium extrusion rail; external lubricants attract abrasive dust that can degrade the self-lubricating nylon elements.

• Periodically inspect the block for linear play, and simply unscrew and swap out the nylon inserts when they wear down over extended service cycles
