Custom Manufacturing Services have become essential for industries that require bespoke solutions to meet unique challenges. The need for precision, durability, and adaptability has never been greater. At the heart of many modern constructions and assemblies lies several custom-made parts. This article delves into how we delivered on a customer’s order including a custom bracket specifically designed for use with 40-series T-slot extrusions, guiding you from the initial understanding of the customer’s needs to the final delivery of the product. This story not only highlights our capabilities in custom manufacturing services but also underscores the importance of collaboration, innovation, and quality in delivering a product that meets and exceeds expectations.
Understanding the Customer’s Need
In today’s fast-paced industrial landscape, off-the-shelf solutions often fall short of meeting specific project requirements. Whether it’s about connecting various sizes of panelling or ensuring compatibility with existing infrastructure, there’s a growing demand for custom components that cater to unique needs. This is particularly true for industries that rely on T-slot extrusions, where the need for precise, reliable, and adaptable custom manufacturing services is paramount.
For one of our clients, the challenge was clear: they needed a custom bracket that could securely connect panels of varying thicknesses—up to 6mm—to a 40-series T-slot extrusion. Off-the-shelf options either lacked the necessary range or did not provide the level of durability required for their application. This is where our expertise in custom manufacturing came into play.
The Customer’s Specific Requirements
Our client’s need was straightforward but complex in execution: they required a bracket that could accommodate panels ranging from 1mm to 6mm in thickness, securely connecting them to a 40-series T-slot extrusion. The bracket needed to be robust enough to withstand daily wear and tear while maintaining a sleek appearance that aligned with their overall design aesthetic.
1. Requirement for Variable Panel Thickness
One of the primary challenges was ensuring that the bracket could adapt to different panel thicknesses without compromising the integrity of the connection. This flexibility was crucial, as the panels needed to be securely fastened regardless of their thickness.
2. Necessity for Compatibility with 40-Series Extrusions
The bracket also had to be perfectly compatible with 40-series T-slot extrusions, ensuring a seamless fit that allowed for easy assembly and disassembly when needed. Compatibility was non-negotiable, as any misalignment could lead to operational inefficiencies or even safety hazards.
3. Durability and Aesthetic Considerations
Beyond functionality, the bracket needed to be durable enough to handle the rigours of industrial use while maintaining a polished appearance. The client was keen on ensuring that the bracket not only performed well but also looked professional, reflecting their commitment to quality in every aspect of their operations.
Collaborative Design Process
Creating a custom solution is as much about collaboration as it is about manufacturing. Understanding the customer’s needs in detail and working closely with them to bring their vision to life is a critical part of the process. The journey began with an in-depth consultation where we discussed the client’s specific needs, challenges, and goals. This phase was crucial for gathering all the necessary information to design a bracket that met their requirements.
Collaborative CAD Design Sessions

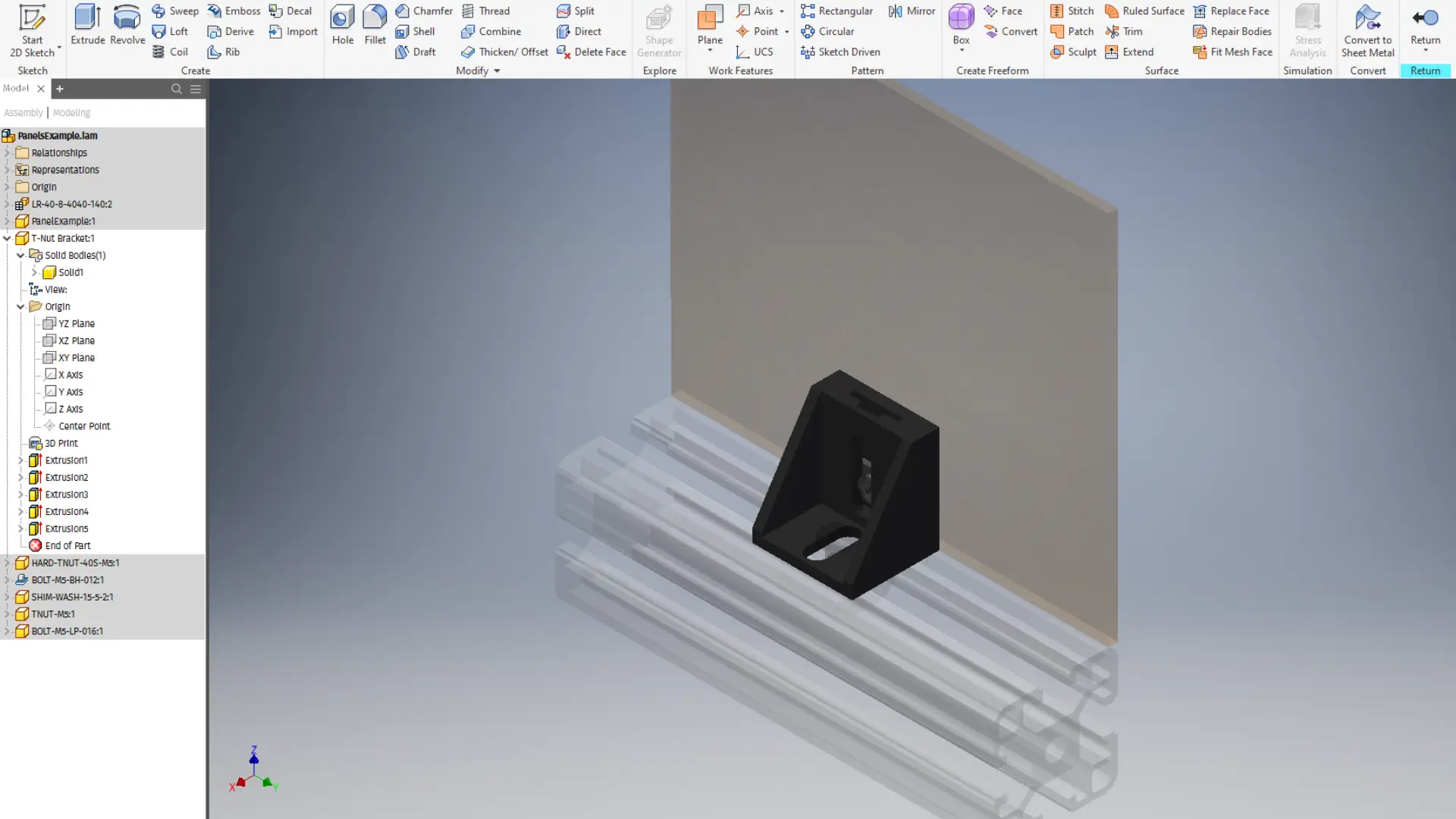

With a clear understanding of the project’s scope, our design team engaged in collaborative CAD design sessions. These sessions allowed us to refine the bracket design, making adjustments in real time based on feedback and ensuring that every aspect of the bracket was tailored to the client’s specifications.
Simulation and Prototyping: Ensuring a Perfect Fit
Once the design was finalized, we moved on to simulation and prototyping. Using advanced CAD software, we simulated how the bracket would perform under various conditions, making sure it could handle the stress and strain it would encounter in real-world applications. Prototyping with 3D printing allowed us to test the bracket physically, ensuring that it met all functional and aesthetic requirements before moving on to full-scale production.
Introducing the Custom Bracket Design
The result of this collaborative process was a custom-made bracket designed specifically for use with 40-series T-slot extrusions, capable of securely holding panels ranging from 1mm to 6mm in thickness.
Overview of the Custom Bracket Design

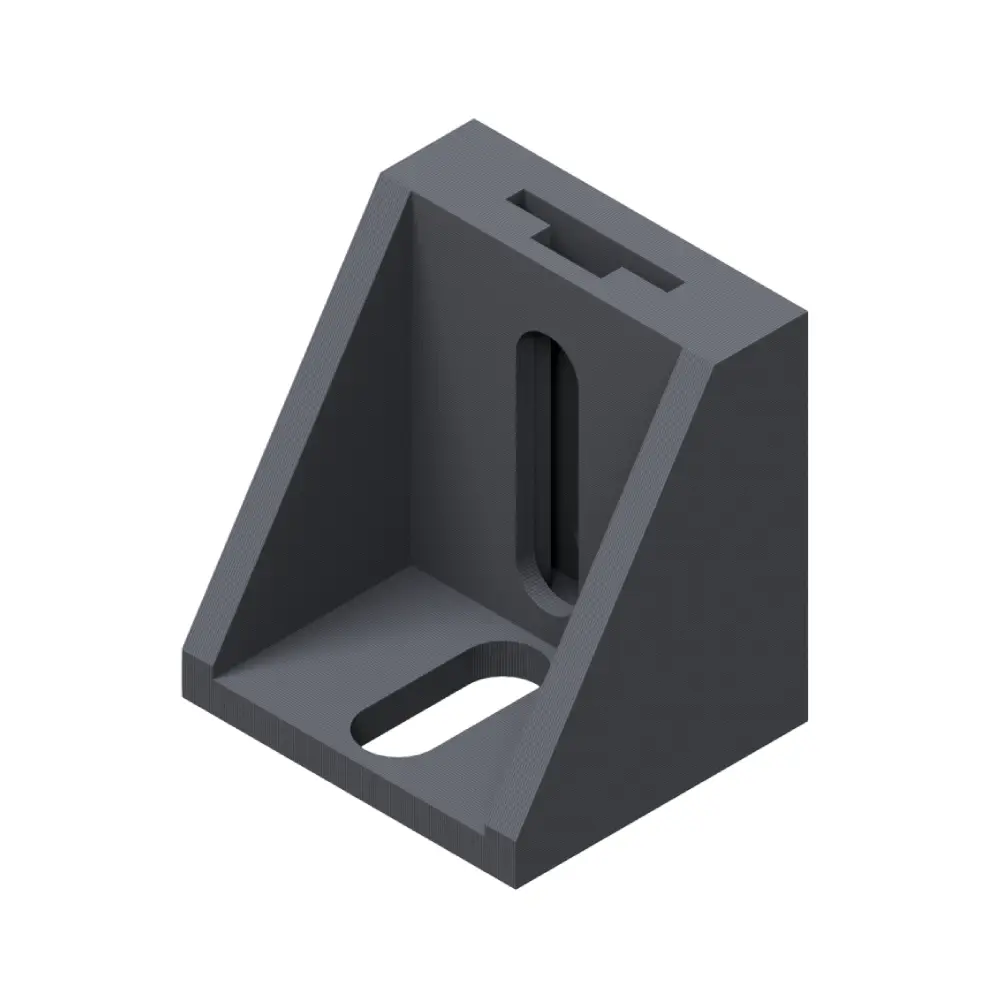

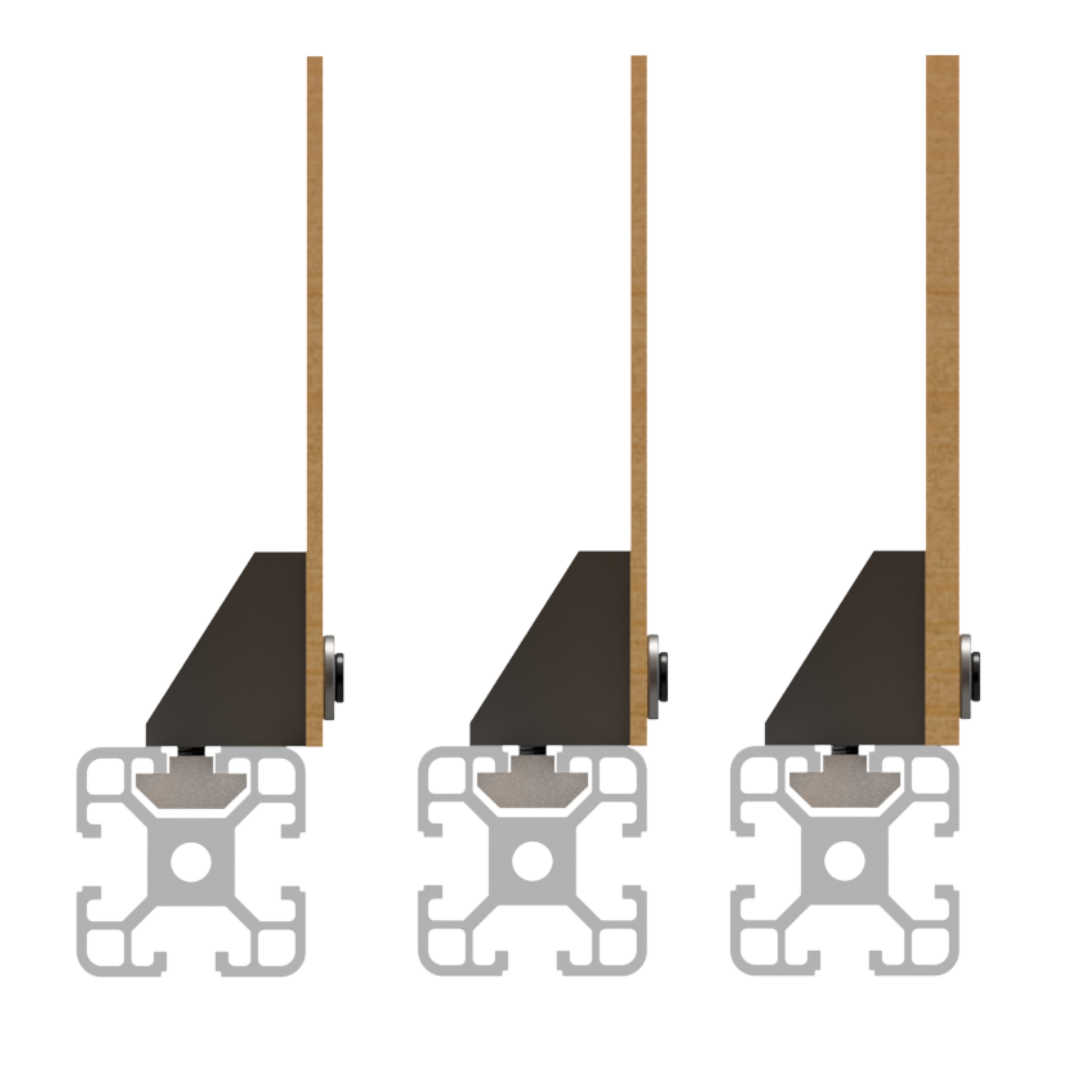

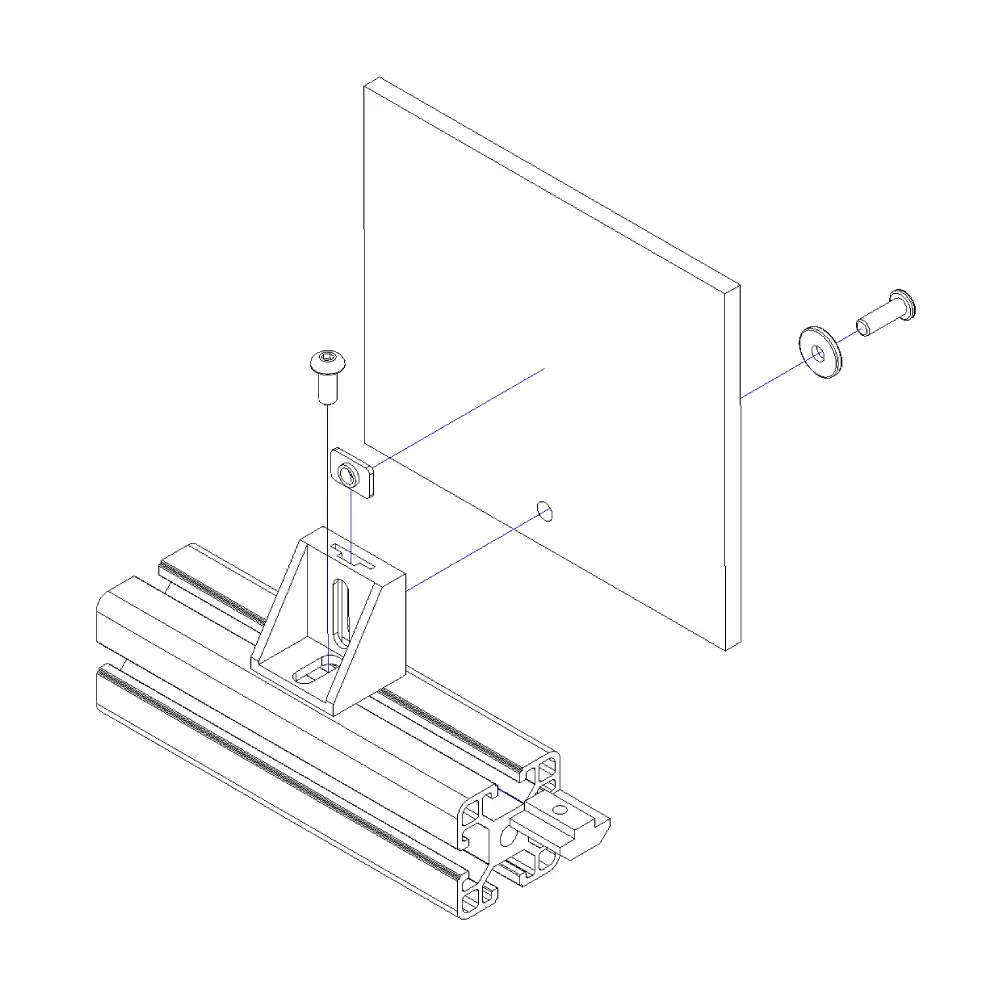

The bracket features an adjustable mounting slot, allowing it to accommodate varying panel thicknesses with ease. This design ensures a secure fit, regardless of the panel size, while maintaining a streamlined appearance that complements the overall structure.
.STP File Availability: Enhancing Collaboration
To facilitate further customization and collaboration, we provided the client with a .STP file of the bracket design. This file allowed their engineers to integrate the bracket into their own CAD models, making it easier to visualize how the bracket would fit into their existing systems and enabling any last-minute adjustments before final production.
STL File Download
Use the following button to download the STL File and 3D print one for yourself!
Alternatively, we do offer this bracket as a product available below.
2-Hole 90-degree T-Nut Panel Bracket – 40 Series
The 2-hole 90-degree T-Nut Panel Bracket – 40 Series is an indispensable hardware component that is ideal for connecting panels up to 6mm thick. Specifically designed to connect panels to 40 Series T-Slot Linear Extrusion at a 90-degree angle, this bracket is a must-have for any project.
Rapid Prototyping with 3D Printing

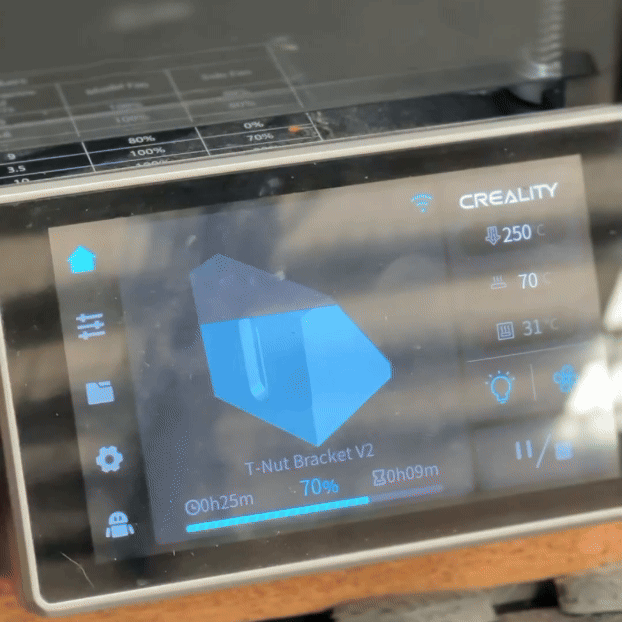

One of the key elements that sets our custom manufacturing process apart is our use of 3D printing for rapid prototyping. When developing the custom bracket for 40-series T-slot extrusions, 3D printing played a crucial role in quickly bringing the design from a digital model to a physical prototype. This allowed us to validate the design, test its functionality, and make necessary adjustments before committing to full-scale production.
Accelerating the Design Process
Traditionally, prototyping could take weeks or even months, involving multiple stages of fabrication and refinement. However, with 3D printing, we were able to significantly accelerate this process. After our initial CAD design sessions, we immediately began printing prototypes of the bracket using a high-resolution 3D printer. This approach enabled us to produce physical models in a matter of hours, rather than days, allowing for rapid iterations and refinements.
Testing Fit and Functionality
The primary advantage of 3D printing in our prototyping process is the ability to test both the fit and functionality of the bracket in real-world scenarios. By producing a tangible prototype, we could physically attach it to the 40-series T-slot extrusion and evaluate how well it held panels of various thicknesses. This hands-on testing was invaluable in confirming that the adjustable clamp mechanism worked as intended and that the bracket provided a secure, stable connection across the full range of panel sizes.
The Custom Bracket in Action
The true test of a custom bracket lies in its performance in the field. After manufacturing, the brackets were put to use in the client’s facility, where they quickly proved their worth.
Versatility in Application: Real-World Uses

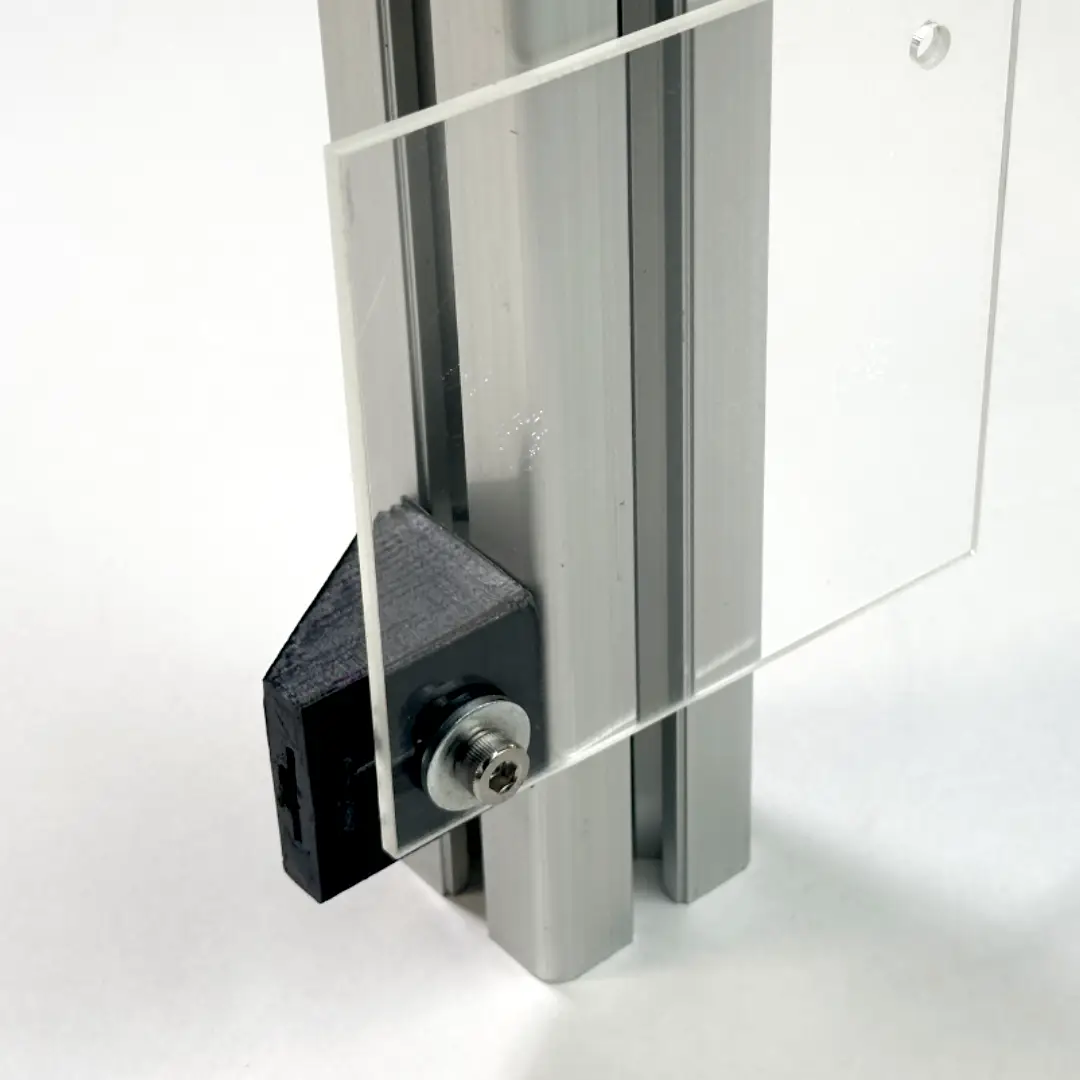

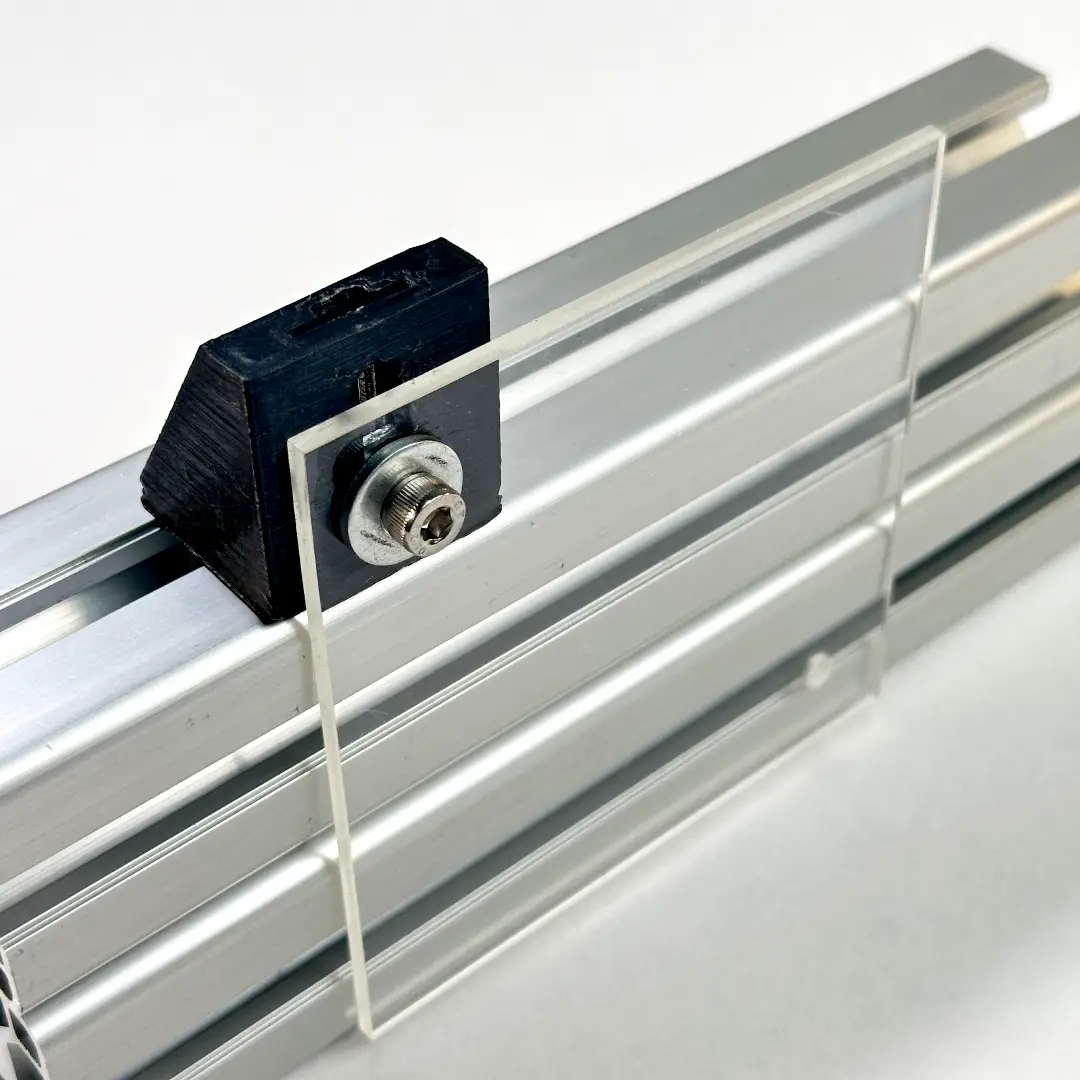

The custom bracket’s versatility allowed it to be used in a variety of configurations, securely holding panels of different thicknesses to the 40-series T-slot extrusions. Whether in vertical or horizontal orientations, the bracket performed flawlessly, providing a stable and secure connection every time.
Benefits of Using Custom Brackets with 40-Series T-Slot Extrusions
The benefits of using these custom brackets became immediately apparent. The adjustable design provided the flexibility to use panels of varying thicknesses, while the durable construction ensured long-lasting performance. The ease of installation and the secure fit provided by the brackets reduced assembly time and increased overall efficiency in the client’s operations.
Packaging and Delivery
Once the brackets were manufactured and passed all quality control checks, the next step was ensuring that they were delivered to the client in perfect condition and on time.
Secure Packaging to Prevent Damage
We understand that the final product is only as good as its condition upon arrival. To prevent any damage during transit, each bracket was carefully packaged using protective materials designed to absorb shocks and prevent scratches. The packaging was also designed to be easy to unpack, ensuring that the client could begin installation without delay.
Timely Delivery and Shipment Tracking
Timely delivery is crucial in maintaining project schedules. We worked closely with our logistics partners to ensure that the brackets were delivered on time and provided the client with shipment tracking information so they could monitor the progress of their order.
Providing Ongoing Support After Delivery
Our commitment to customer satisfaction doesn’t end with delivery. We provide ongoing support to ensure that the brackets perform as expected and are always available to address any questions or concerns the client may have.
Why Choose Us for Custom Manufacturing Services?
When it comes to custom manufacturing, you need a partner who not only understands your needs but has the capabilities to deliver on them. Here’s why we should be your first choice for custom manufacturing.
Expertise in Custom Solutions
With years of experience in custom manufacturing, we have the expertise to tackle even the most challenging projects. Our team of engineers and designers works closely with you to ensure that every detail is perfect, from the initial design to the final product.
State-of-the-Art Facilities
Our manufacturing facility uses the latest technology to produce high-quality custom brackets with unmatched precision. Whether it’s CNC machining or advanced finishing techniques, we have the tools and the know-how to bring your vision to life.
Dedicated Customer Support and Consultation Services
We pride ourselves on providing exceptional customer service. From the initial consultation to ongoing support after delivery, we are here to assist you every step of the way. We aim to ensure your complete satisfaction with the final product.
Next Steps: Start Here
Are you ready to bring your custom bracket design to life? Here’s how you can get started with our custom manufacturing services.
Contact Us for a Custom Quote
The first step is to get in touch with us using the form below to discuss your project. We’ll provide you with a custom quote based on your specific requirements and help you understand the process from start to finish.
Design Consultation: Bringing Your Vision to Life
Once you’ve decided to move forward, we’ll schedule a design consultation to begin the collaborative process of creating your custom bracket. Our team will work with you to refine the design, ensuring that it meets all of your needs and specifications.
A Streamlined Process from Concept to Delivery
Our goal is to make the Custom Manufacturing Services as seamless and efficient as possible. We update you every step of the way from the initial design to the final delivery, ensuring that we complete your project on time and to your exact specifications.
Conclusion
In the world of custom manufacturing services, precision, quality, and collaboration are key. Our journey with the custom bracket designed for 40-series T-slot extrusions is a testament to the power of these principles. By working closely with our client, leveraging our advanced manufacturing capabilities, and focusing on quality at every stage. We delivered a product that met all expectations and provided real value.
Whether you need a custom bracket or another bespoke component, we have the expertise to bring your vision to life. Contact us to learn more about how we can help you with your next project.
